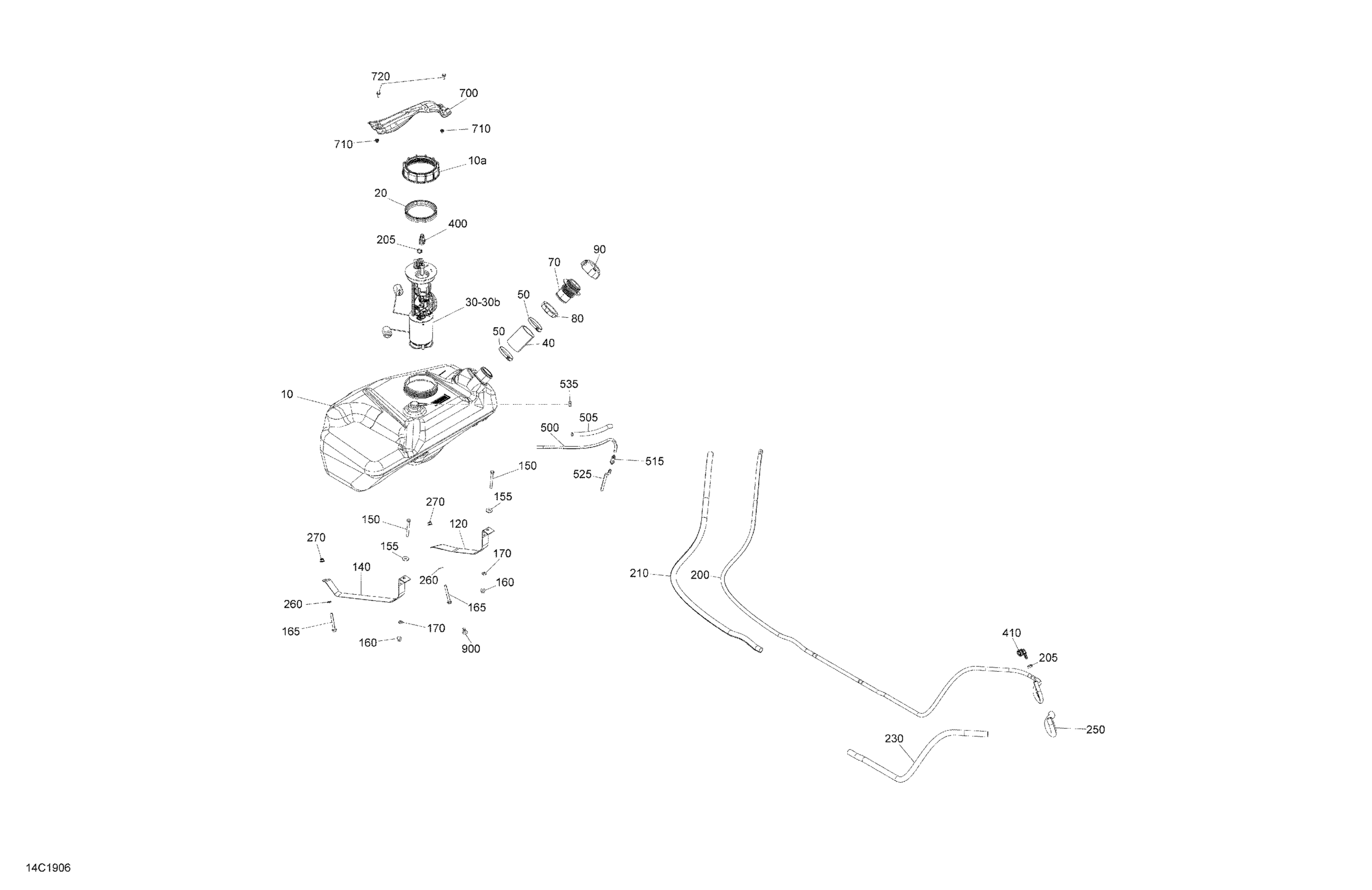

Can-Am Maverick Turbo - 2019 Fuel - No EVAP Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$287.66

10a

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30

Fuel Pump | Includes 30 to 30b

709001057

$353.87

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

40

Filler Neck

709000748

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

709000868

$32.28

120

Fuel Tank Strap

709000910

$41.51

140

Fuel Tank Strap

709000911

$41.51

150

Hex. Screw, M8 X 75

207187544

$0.89

155

Flat Washer 8 mm

234082410

$1.11

160

Hex. Flange Elastic Nut M8

233281414

$1.14

165

Hex. Flange Screw, M8 X 65

207686544

$9.74

170

Flat Washer 8 mm

234081410

$0.69

200

Was 709000163 Fuel Line

219704440

$108.43

205

Crimp Clamp, 15.3-706R

293650047

$2.64

210

Tubing 16 Mm 1000Mm Long

219704408

$6.23

230

Tubing 16 Mm 1000Mm Long

219704408

$6.23

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

260

Flat Washer 8 mm

234081410

$0.69

270

Hex. Flange Elastic Nut M8

233281414

$1.14

400

Quick Disconnect

275500921

$12.61

410

Elbow Fitting 90°

293710105

$10.58

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

505

Tubing 10 MM 1000MM Long

219704407

$2.20

515

Filter

709000330

$8.29

525

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

700

Connector Protector

707900594

$18.43

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

900

Norma Spring Clamp

293650214

$15.35
