Partiron

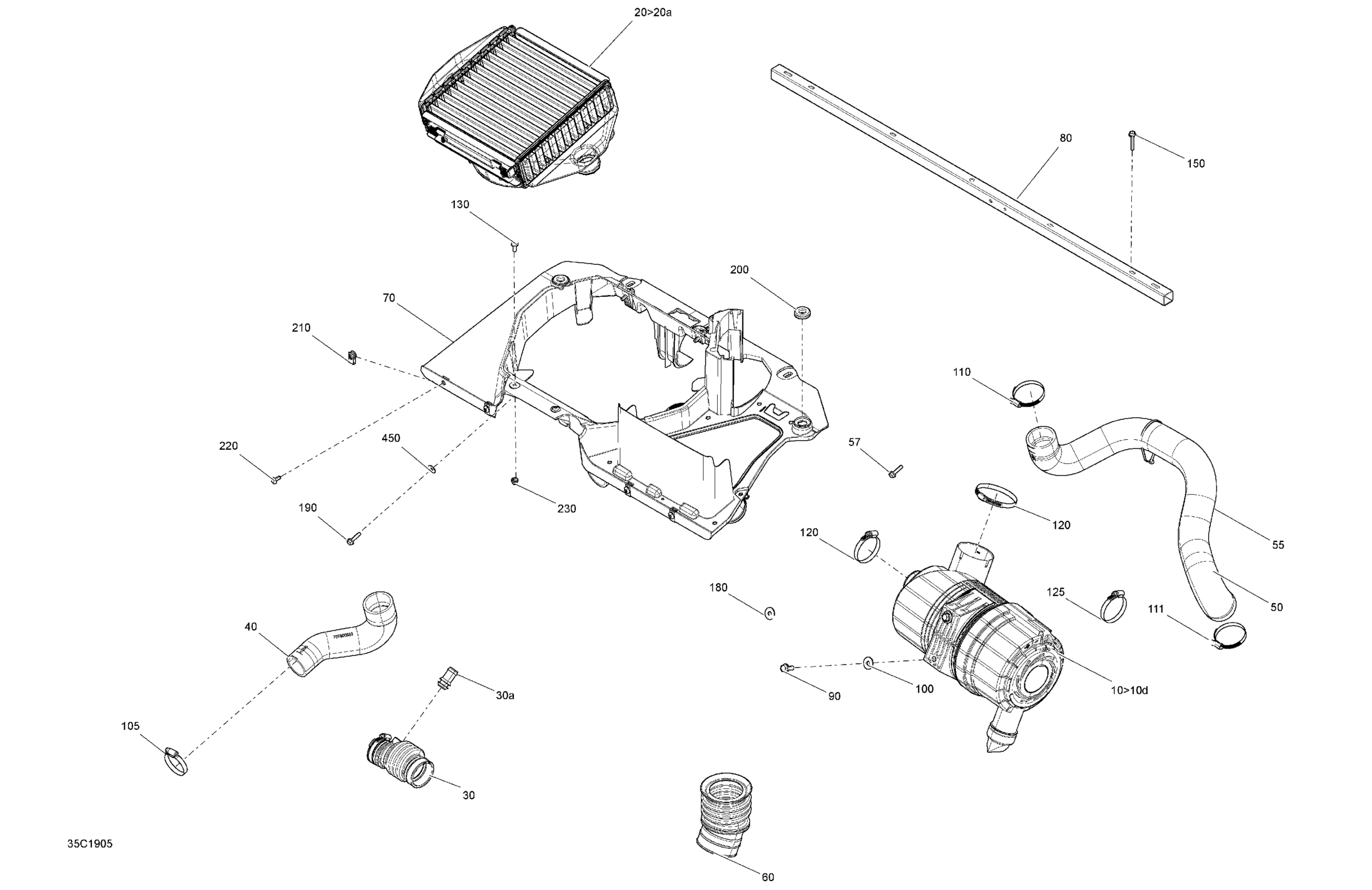

Can-Am Maverick MAX Turbo R - 2019 Air Intake - Turbo R Diagram

#

Description
Price

10

Airbox | Includes
10 to 10c

707801032

$184.58

10a

Silencer-Air Cover | Includes 10a to 10a1

715900528

$87.66

10a1

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$23.05

10b

Air Filter

715900422

$50.34

10c

Cap

519000216

$6.86

10d

Spring Clamp

414554800

$0.83

20

Intercooler Assemblée | Includes 20 to 20a

707800793

Unavailable

20a

Fan Assemblé

707800838

$281.51

30

Air Intake Turbo | Includes 30 to 30a

707800693

$36.89

30a

Breather Valve

273000234

$10.63

40

Air Intake Intercooler

707800683

$36.89

50

Air Intake Engine

707800685

$96.89

60

Air Intake Filter

707800687

$14.75

70

Radiator Support

707800691

$119.97

80

Square Tube

707801133

$50.74

90

Hex. Flange Screw M8 X 20

207682044

$0.92

100

Flat Washer 8 mm

234082410

$1.11

105

King Seal Clamp

293650270

$4.98

110

King Seal Clamp

293650271

$12.68

111

King Seal Clamp

293650271

$12.68

120

King Seal Clamp

293650270

$4.98

120

King Seal Clamp

293650270

$4.98

125

Norma Clamp

293650096

$3.09

130

Torx Screw M6 X 20

250000722

$1.34

150

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

170

Duct Bill Valve

715003114

$12.91

180

Stainless Steel Flat Washer

234062670

$1.74

190

Hex. Flange Screw M6 X 25

207562544

$1.39

200

Grommet

517303756

$3.15

210

Panel Nut M6 X 1.0

250100198

$1.73

220

Torx Screw M6 X 20

250000722

$1.34

230

Insert Half Hex Body M6 x 1.0

250100199

$2.54

450

Flat Washer 6 mm

234062410

$0.64
