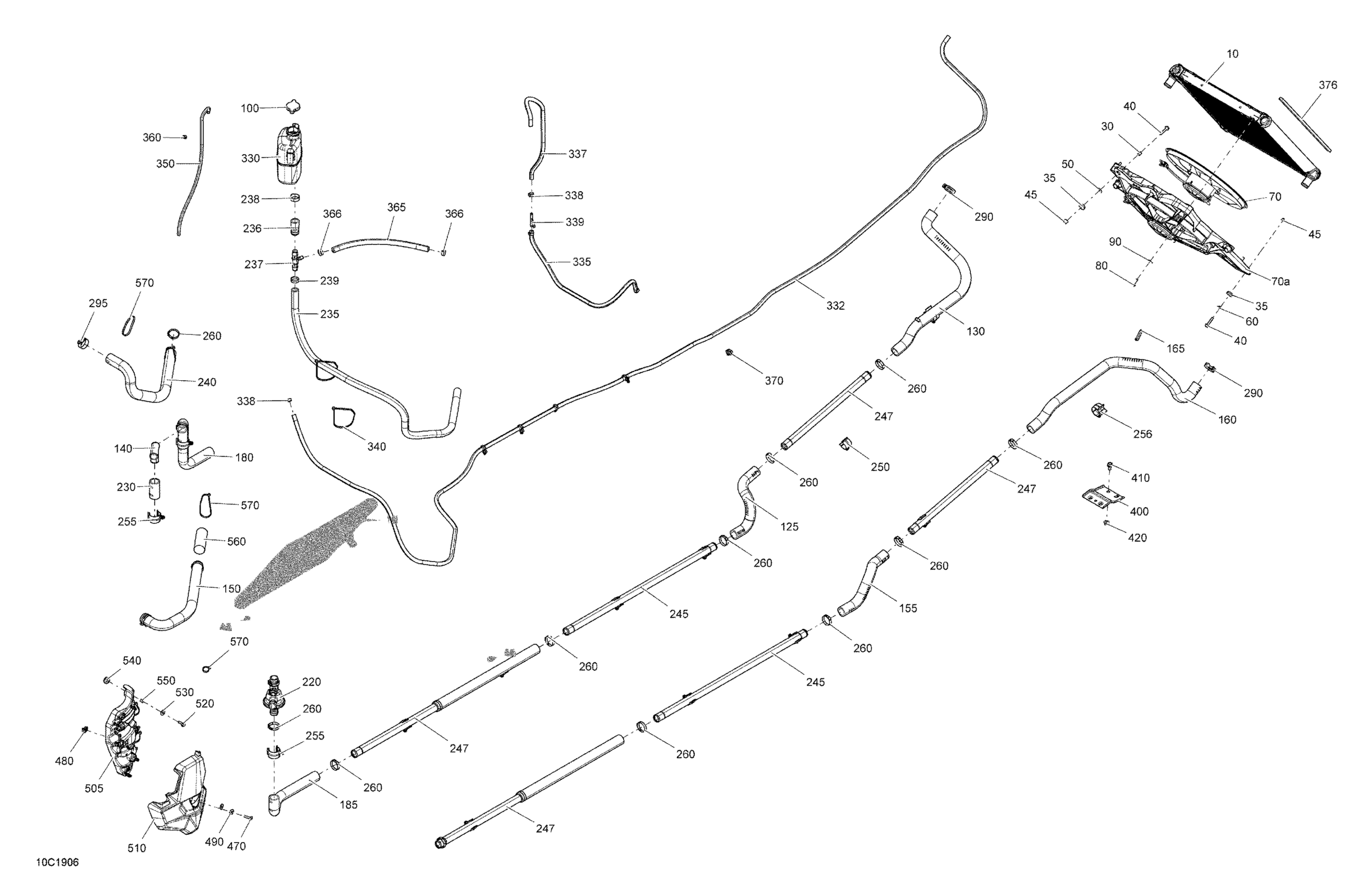

Can-Am Maverick MAX Turbo - 2019 Cooling Diagram

#

Description
Price

10

Radiator

709200703

$350.74

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 30

207663054

$3.61

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

50

Stainless Steel Flat Washer

234062670

$1.74

60

Shoulder Bushing

710004749

$2.75

70

Fan | Includes 70 to 70a

709200588

$226.12

70a

Shroud

709200589

$143.05

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

125

Radiator Hose

709200764

$14.75

130

Radiator Hose

709200765

$62.31

140

T-Fitting

509000219

$15.35

150

Pump Hose

709200766

$16.89

155

Outlet Radiator Hose

709200670

$18.43

160

Radiator Hose

709200768

$36.89

180

Hose

709200769

$41.51

185

Hose

709200770

$41.51

200

Hose

709200823

$10.00

210

Elbow Fitting 90

293710155

$8.45

220

Thermostat Housing

709200581

$96.89

230

Thermostat Hose

709200598

$15.22

235a

Hose | Package Cab

219704443

$6.66

236

Tank Hose

709200771

$32.28

237

T Fitting

509000996

$10.98

238

Oetiker Gear Clamp

293650165

$4.32

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

240

Thermostat Hose

709200772

$36.89

241a

Tubing 35 MM 1000MM Long

219704428

$8.57

245

Heater Tubing

709200657

$13.49

247

Heater Tubing

709200664

$13.98

250

Retainer

275500963

$4.98

255

Retainer

275500526

$3.73

256

Retainer

275500590

$7.18

257

Tie-Rap 180 mm

414115200

$0.09

260

Gear Clamp

509000162

$5.84

290

Norma Spring Clamp

293650166

$4.28

295

Aba Gear Clamp, 26-38 MM

509000443

$5.68

330

Coolant Tank

709201323

$78.43

332

Was 415129508 Bleeder Hose

219704416

$11.83

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

341

Oetiker Gear Clamp

293650025

$2.46

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.83

365

Hose 9.5MM 3000MM Long

219704445

$64.58

366

Oetiker Clamp | Europe

293650030

$4.32

376

Seal 3000MM Long

219704386

$27.66

400

Hose Support

709200668

$5.52

410

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

420

Hex. Flange Nut M8

233181414

$0.91

470

Torx Truss Screw M6 X 25

250000807

$1.74

480

Panel Nut M6 X 1.0

250100198

$1.73

490

Stainless Steel Flat Washer

234062670

$1.74

505

Hose Support

705010900

$20.74

510

Hose Support Cover

705010901

$16.89

520

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

530

Stainless Steel Flat Washer

234062670

$1.74

540

Grommet

709000582

$4.38

550

Bushing

293900105

$6.26

560a

Tubing 35 MM 1000MM Long

219704428

$8.57

600

Heater Tubing

709200664

$13.98

610

Hose

709200709

$36.89

620

Gear Clamp

509000162

$5.84

640a

Tubing 25 MM 1000MM Long

219704402

$12.69

650a

Tubing 16 Mm 1000Mm Long

219704408

$6.23
