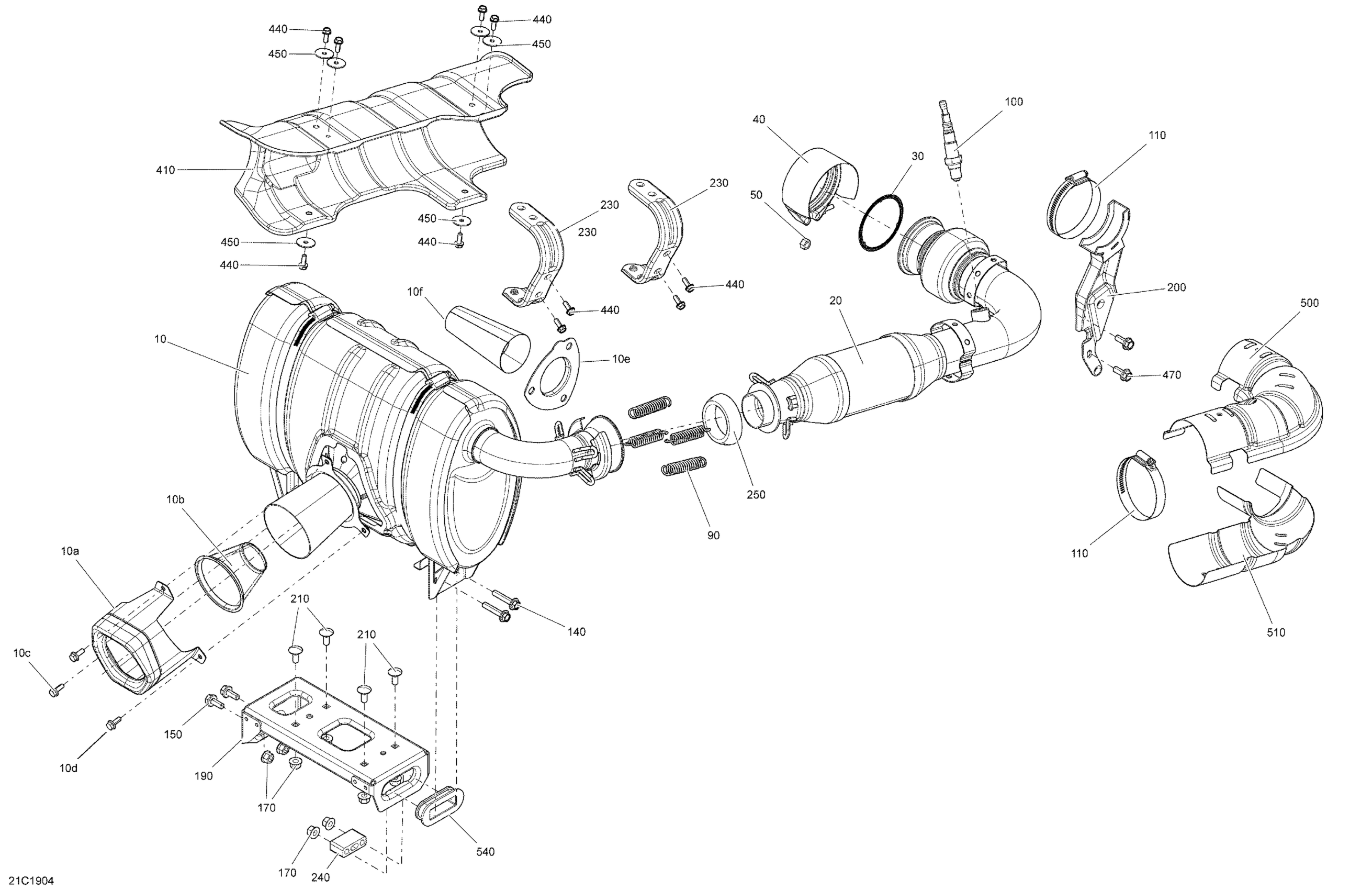

Can-Am Maverick MAX Turbo - 2019 Exhaust - Turbo Diagram

#

Description
Price

10

Muffler | Includes 10 to 10c

707601731

$775.35

10

Exhaust Muffler Ass'y | Includes 10 to 10p

707602781

$830.74

10a

Heat Shield | Includes 10f to 10f2

707602046

$32.28

10b

Spark Arrestor | Not Shown

707602087

$36.89

10b

Esthetic Spark Arrestor

707602511

$36.89

10c

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

10d

Hex. Flange Screw M8 X 20

207682046

$1.82

10e

Gasket | Package XMR

707602505

$10.98

10f

Spark Arrestor | Package XMR

707602467

$5.52

20

Headpipe

707602242

$876.89

30

Seal

707601835

$36.89

40

V Clamp

707602570

$50.74

50

Nut

707602143

$6.45

90

Spring

707601834

$6.20

100

Oxygen Sensor

707600872

$115.67

110

Gear Clamp

293650255

$12.91

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682046

$1.82

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut M8

233081416

$1.63

190

Muffler Support

707601765

$27.66

200

Exhaust Mount | Includes 200 to 200c

707602815

$27.66

210

Carriage Bolt, M8 X 20

207782044

$1.56

230

C Support

707601896

$27.66

240

Muffler Stopper

707601897

$3.98

250

Gasket

707601908

$23.05

410

Lateral Heat Shield

707601768

$23.05

440

Hex. Flange Screw M6 X 16

210261650

$1.22

450

Washer | Not Shown

503193995

$4.38

470

Hex Screw Washer Head M8 X 20

207582054

$2.61

500

Upper Heat Shield

707601795

$27.66

510

Lower Heat Shield

707601796

$27.66

540

Rubber Stopper

707601845

$16.89
