08- Electric - Main Harness - 278003892

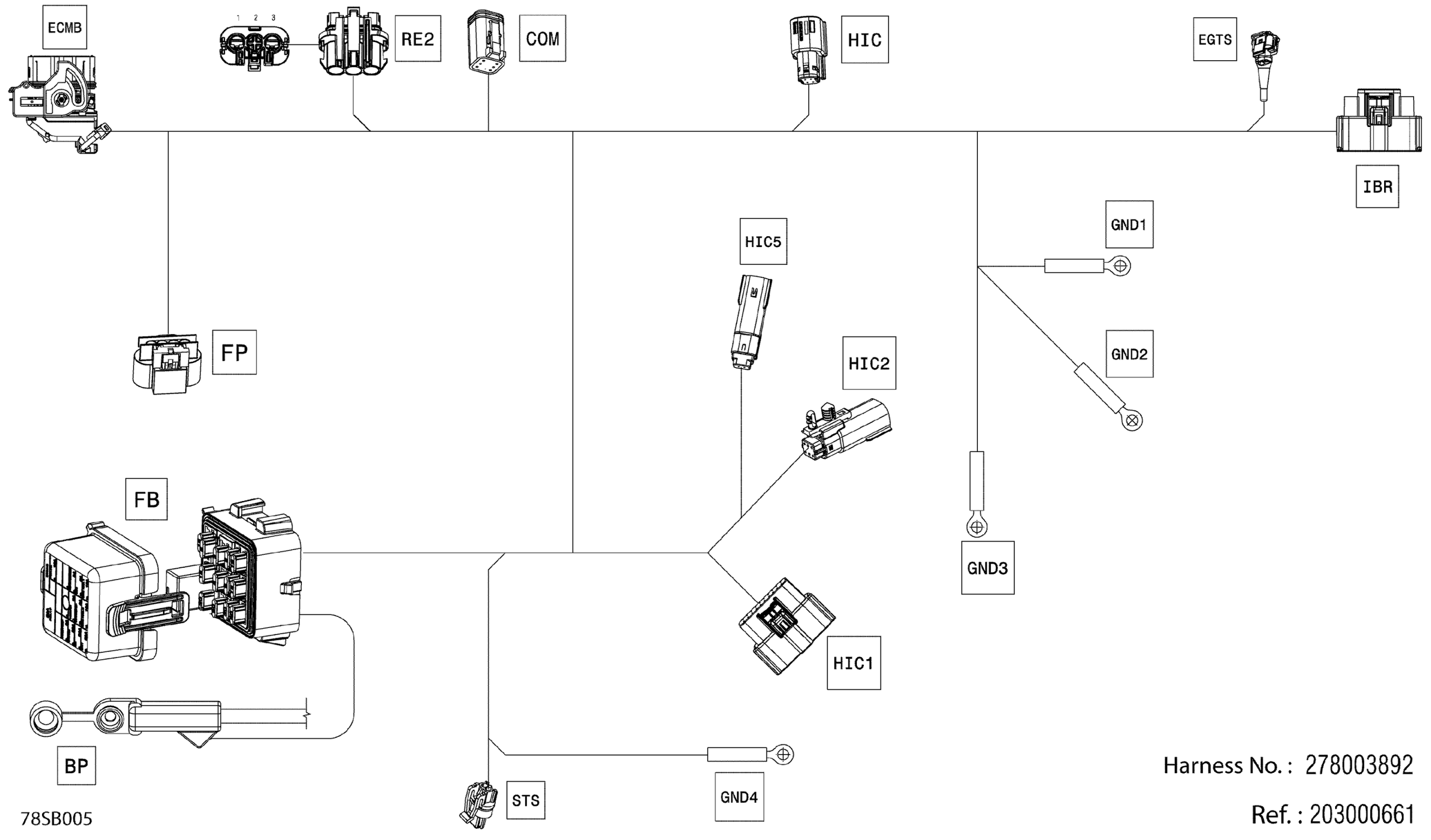

Sea-doo 006 - GTX PRO 130 (Rental), 2022 08- Electric - Main Harness - 278003892 Diagram
#
1000
Main Wiring Harness
278003892
$339.99
BP
Battery Cable
278003715
$71.99
COM
Female Housing 6 Circuits
710002706
$20.49
COM
Lock
710002705
$4.44
COM
Female Terminal
710005438
$4.29
COM
Female Terminal
710005439
$4.44
ECMB
Cover, 48 positions
710001591
$12.18
ECMB
Female Terminal Housing, 48 Circuits
710001588
$48.49
ECMB
Plug
710001593
$2.21
ECMB
Plug
710001592
$2.21
ECMB
Female Terminal
710001590
$2.09
ECMB
Female Terminal
710001727
$3.19
ECMB
Female Terminal
710001589
$2.21
EGTS
Housing
710001136
$13.22
EGTS
Seal
415128501
$1.89
EGTS
Female Terminal
710001137
$4.55
FB
Fuse Cover
278003879
$4.44
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Fuse Base Ass'y
278003448
$31.99
FB
Seal Plug
278002880
$7.86
FB
Relay 30 Amp
278003828
$13.99
FB
Wire Seal
278000218
$4.39
FB
Wire Seal
710000048
$7.69
FB
Wire Seal
278001065
$7.69
FB
Female Terminal
710000890
$4.55
FB
Female Terminal
710000918
$7.69
FB
Female Terminal
515177177
$6.49
FP
Male Housing, 4 Circuits
278002185
$7.90
FP
Lock
710001222
$2.09
FP
Wire Seal
278002186
$5.50
FP
Female Terminal
278002187
$6.39
GND2
Open Barrel Terminal
278001392
$4.79
GND3
Open Barrel Terminal
278001392
$4.79
HIC
Female Housing, 4 circuits
278003535
$25.99
HIC
Female Terminal | Not Shown
278002642
$3.79
HIC1
Female Housing 20 Circuits
278002858
$22.49
HIC1
Sealing Cap
278002860
$1.79
HIC1
Female Terminal | Not Shown
278002453
$5.79
HIC1
Female Terminal | Not Shown
278002642
$3.79
HIC5
2 Circuits Male Housing
515178020
$23.99
HIC5
Male Terminal
278003226
$5.79
RE2
Female Housing, 3 Circuits
710000879
$25.99
RE2
Seal
710000881
$17.99
RE2
Female Terminal
710000877
$9.12
STS
Female Housing, 2 Circuits
515177192
$9.12
STS
Lock
710001152
$4.39
STS
Seal Wire
710001153
$2.21
STS
Terminal
710000925
$3.19
