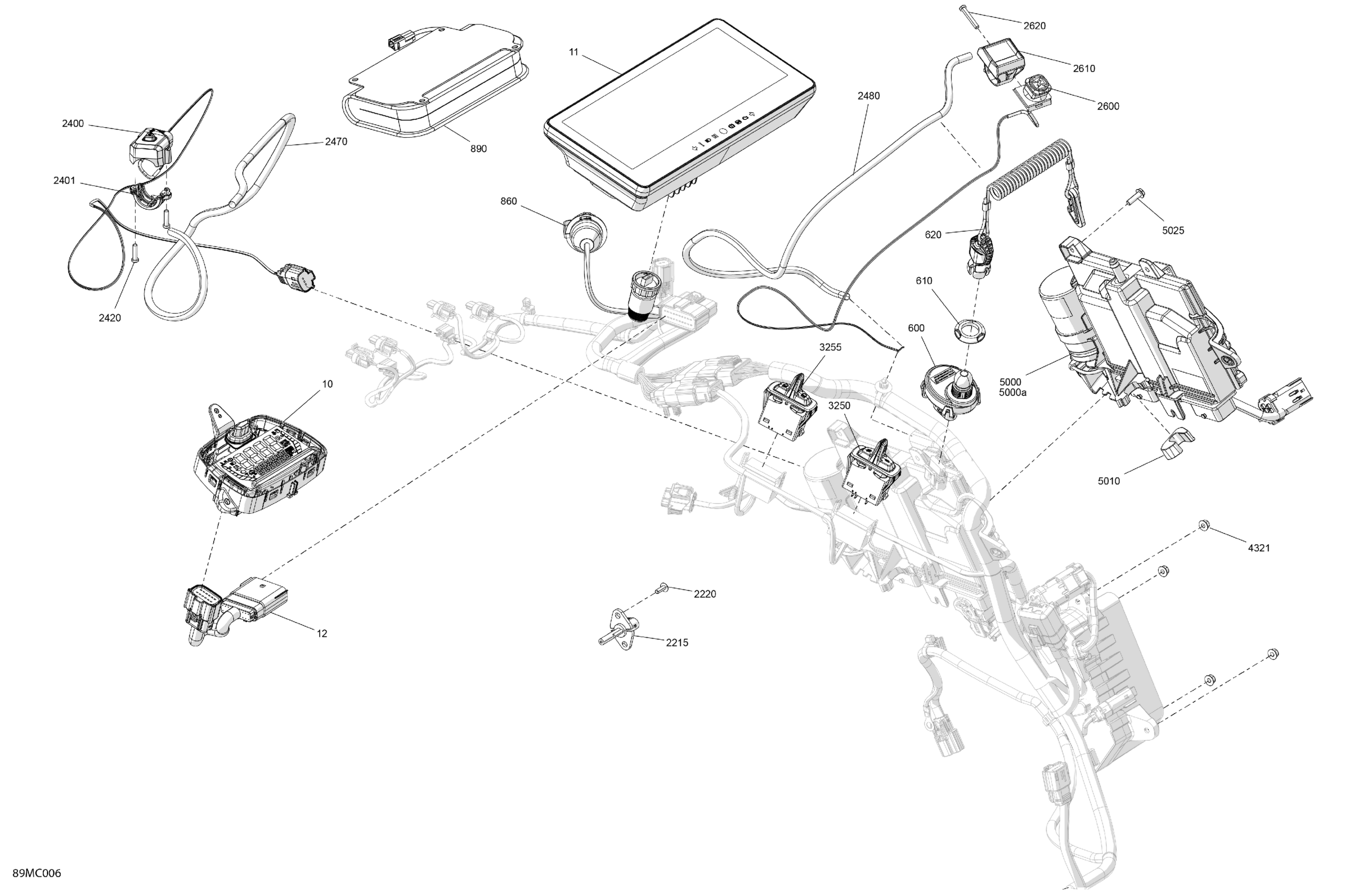

Ski-Doo FREERIDE 165 - 850 E-TEC Turbo R - 2023 Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$529.99

Multifunction Gauge 10

710009417

$2,049.99

Junction Wiring Harness

515179304

$24.49

600

Ignition Switch

710006855

$81.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

860

USB Wiring Harness Ass'y

515179248

$78.99

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$106.49

2215

Air Temperature Sensor

515176366

$19.99

2220

Torx Truss PT K40 x 12

250001131

$2.11

2400

Ignition Switch

515179056

$69.99

2401

Clamp

515177952

$8.79

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515178859

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

4321

Hex. Flange Nut M5

233151414

$0.55

5000

ECM Module | Includes 5000a to 5000a1

515179355

$589.99

5000a

Capacitor

515177272

$90.99

5010

Rubber Stopper

515178430

$2.11

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00
