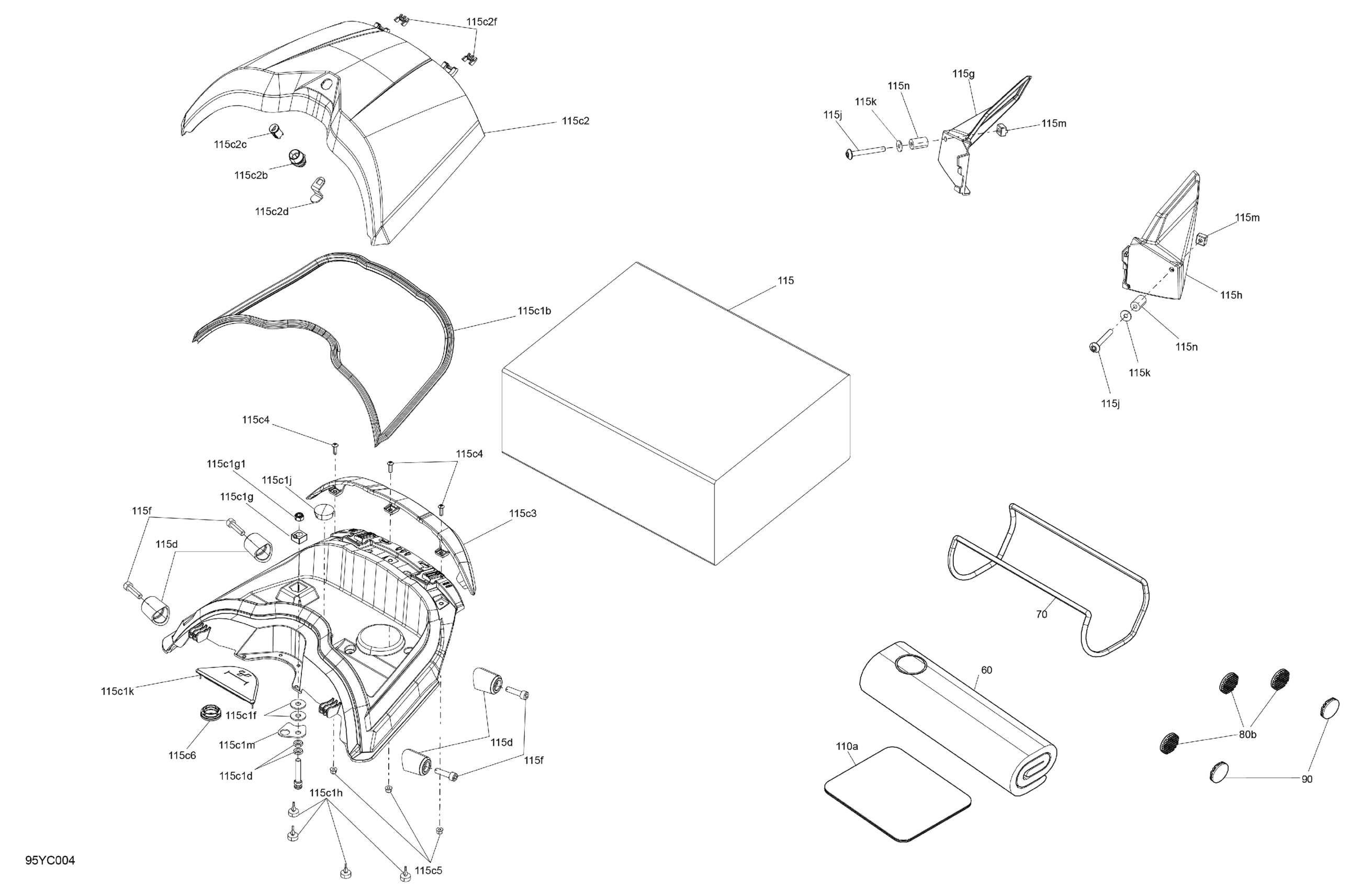

Can-Am F3 SPORT - Manta Green, 2023 Miscellaneous - Utilities Diagram

#

Description
Price

60

Tool Kit

520002507

$28.99

70

Strap

520001574

$3.91

80b

Dual Lock Velcro Washer 3/4"

293740028

$4.19

90

Dual Lock Velcro Washer 3/4"

293740028

$4.19

110a

Protector

705009823

$12.16

115

Manta Green, Storage Box Kit | Includes 115 to 115n

708201277

$509.99

115c1b

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

115c1d

Hex. Jam Nut M8

232180600

$0.67

115c1f

Flat Washer 8 mm

234082410

$1.47

115c1g

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

115c1g1

Hex. Elastic Nut M8 Brass

232581200

$2.22

115c1h

Rubber Stopper

708000759

$4.19

115c1j

Black, Nylon Cap

414916600

$4.69

115c1k

Backrest Trim

708301604

$8.57

115c1m

Washer

708001909

$9.95

115c2

Manta Green, Box Cover Ass'y | Includes 115c2 to 115c2f

708304449

$389.99

115c2b

Lock Kit

219800407

$57.99

115c2c

Lock Kit

219800407

$57.99

115c2d

Lock Kit

219800407

$57.99

115c2f

Opening Limiter

708301727

$3.17

115c3

Trim

708301416

$12.17

115c4

Torx Truss Screw M5 X 16, T25

250000578

$2.11

115c5

Flange Elastic Nut M5

233251434

$2.00

115c6

Grommet Boot

710002926

$4.69

115d

Frame Protector

708301525

$4.79

115f

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

115g

Black, RH Footrest Trim

708302067

$5.49

115h

Carbon Black, LH Footpeg

708302066

$6.29

115j

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

115k

Stainless Steel Flat Washer

234062670

$2.11

115m

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

115n

Socket Sleeve

705015387

$3.89
