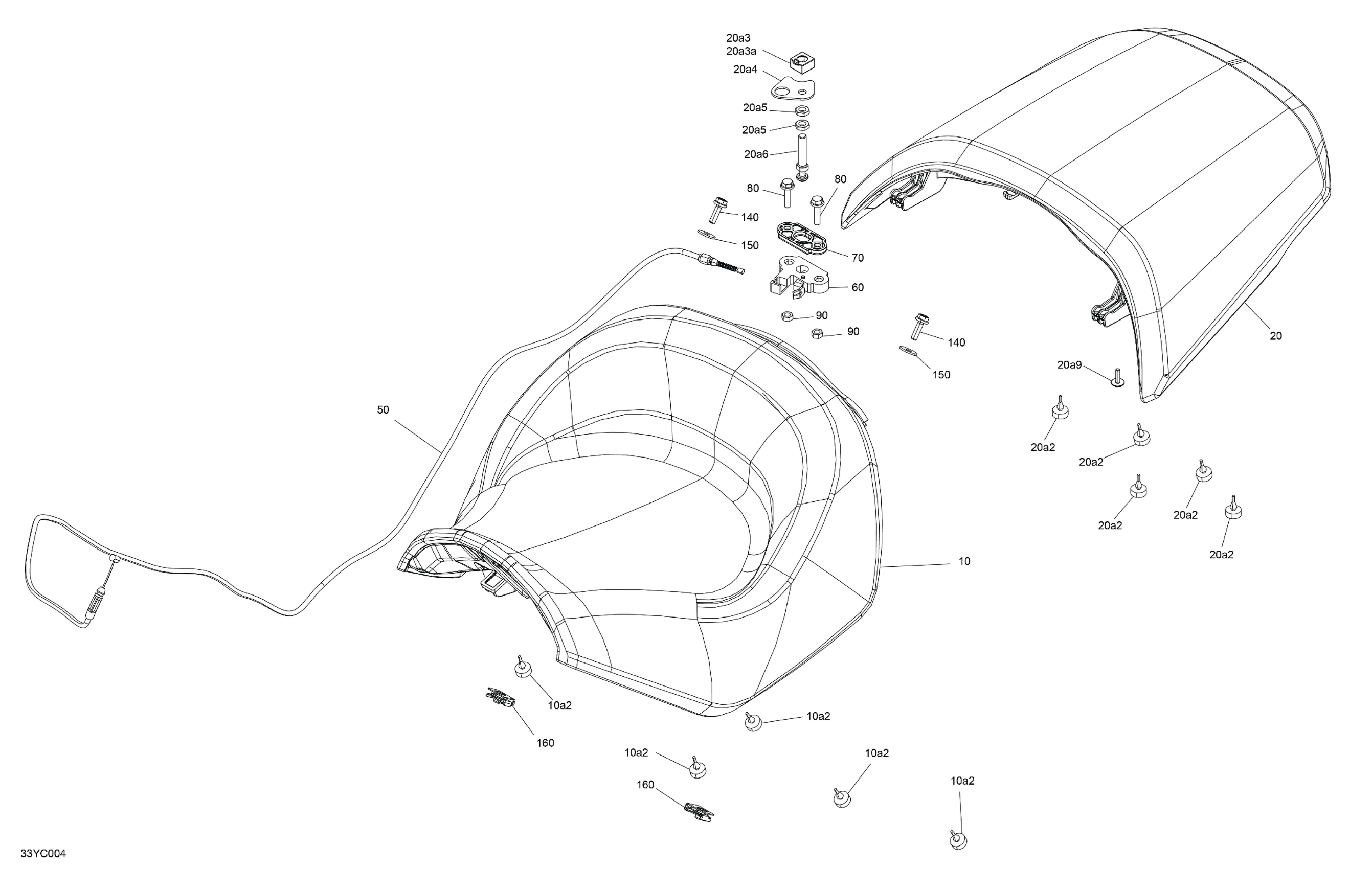

Can-Am F3 SPORT - Manta Green, 2023 Body - Seat Diagram

Description

Price

Driver Seat Ass'y | Includes 10 to 10c

708003407

$489.99

10a2

Rubber Stopper

708000759

$4.19

Passenger Seat Ass'y | Includes 20 to 20c

708003409

$349.99

20a2

Rubber Stopper

708000759

$4.19

20a3

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

20a3a

Hex. Elastic Nut M8 Brass

232581200

$2.22

20a4

Washer

708001909

$9.95

20a5

Hex. Jam Nut M8

232180600

$0.67

20a6

Lug

708001741

$24.49

20a9

Screw M4 X 16

250000725

$3.49

Seat Cable

708001743

$53.99

Latch

705007379

$28.99

Brace

708001771

$4.09

Hex. Flange Screw M6 X 25, Scotch Grip

207562556

$2.11

Hex. Nut M6

232061414

$0.53

140

Hex. Flange Screw M6 X 20

207662044

$2.00

150

Flat Washer

250200082

$0.42

160

Panel Nut M6 X 1.0

250100208

$1.46
