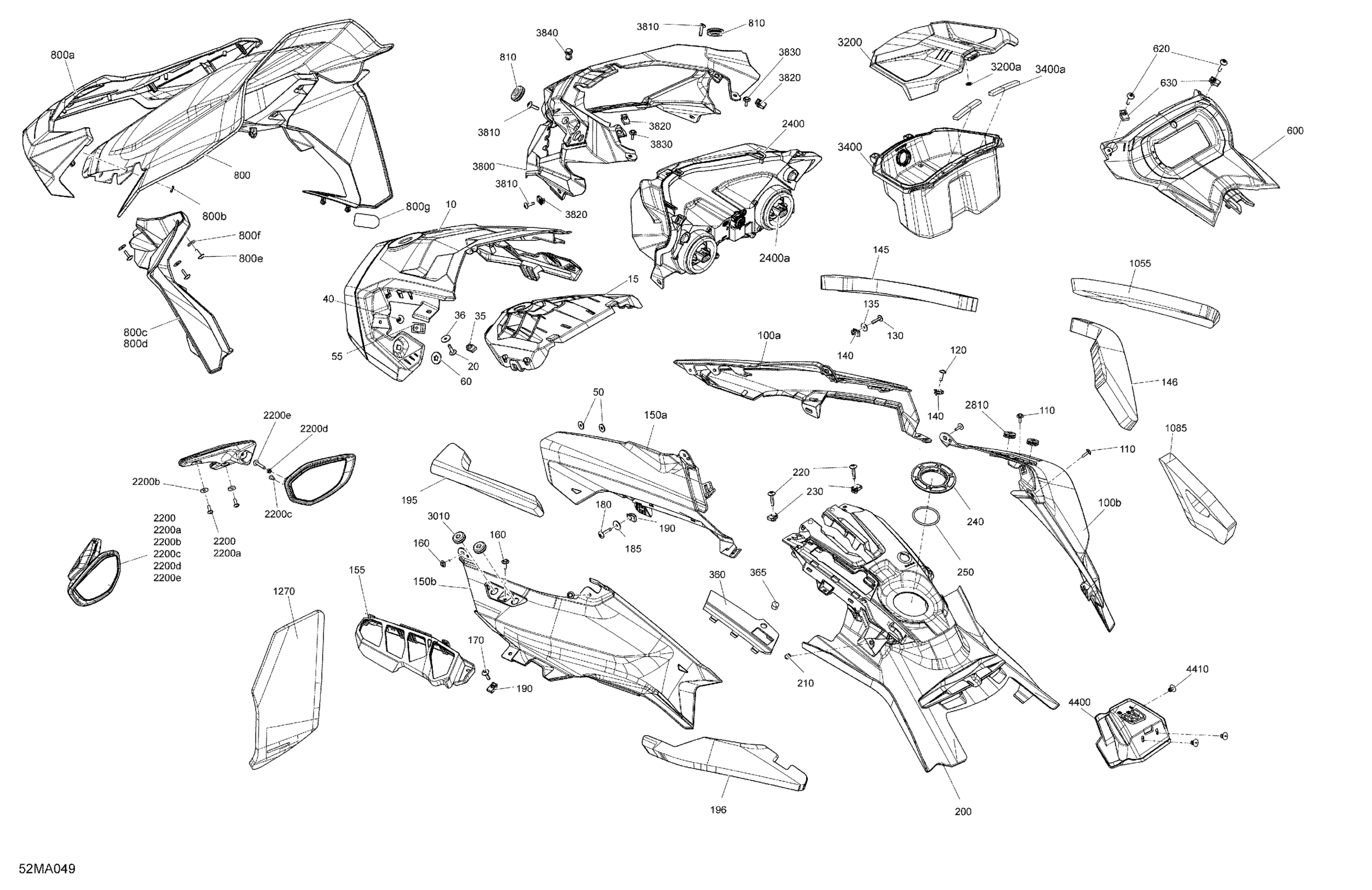

Ski-Doo EXPEDITION SWT 900 ACE Turbo, Europe, 2021 Body - Hood Diagram

#

Description
Price

10

Deep Black, Center Hood

517306284

$158.43

15

Center Hood Grille

517306424

$15.34

20

Torx Screw M5 X 20

250000528

$1.74

35

Panel Nut M5 X 0.8

250000958

$3.48

36

Washer

250200166

$1.74

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

50

Washer

517124300

$0.16

55

Rivet Plate

517305109

$4.66

60

Push Nut

508000853

$1.92

100a

RH Front Hood | Model Can-Am Red

517306777

$197.66

100b

RH Rear Hood | Model Can-Am Red

517306778

$197.66

110

Screw M4 X 16

250000725

$2.87

120

Torx Screw M5 X 20

250000528

$1.74

130

Torx Screw M5 X 26

250000587

$3.61

135

Washer

250200166

$1.74

140

Panel Nut M5 X 0.8

250000958

$3.48

145

RH Front Hood Foam

517305763

$11.54

146

RH Hood Foam

517306001

$11.54

150a

LH Front Hood | Model Can-Am Red

517306780

$197.66

150b

LH Rear Hood | Model Can-Am Red

517306781

$197.66

155

LH Hood Trim

517306470

$25.35

160

Screw M4 X 16

250000725

$2.87

170

Torx Screw M5 X 20

250000528

$1.74

180

Torx Screw M5 X 26

250000587

$3.61

185

Washer

250200166

$1.74

190

Panel Nut M5 X 0.8

250000958

$3.48

195

LH Front Hood Foam

517305764

$11.54

196

LH Hood Foam

517306002

$11.54

200

Deep Black, Rear Console

517307687

$196.12

210

Flange Elastic Nut M5

233251434

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Console Nut

517306602

$11.22

250

O-Ring

706002839

$0.98

360

LH Front Console

517306582

$29.97

365

Cap

572051500

$5.38

600

Gauge Support

517307675

$35.35

620

Torx Screw M5 X 26

250000587

$3.61

630

Panel Nut M5 X 0.8

250000958

$3.48

800

Windshield Ass'y 585MM | Includes 800 to 800j

517307327

$229.97

800a

Deep Black, Windshield Support

517306183

$42.99

800b

Push Nut

732610072

$1.72

800c

RH Air Deflector

517306184

$33.82

800d

LH Air Deflector

517306185

$33.82

800e

Screw M4 X 16

250000889

$2.46

800f

Rubber Washer 5 mm

250200024

$1.77

800g

Decal

516009227

Unavailable

810

Grommet

517303756

$3.15

1055

Foam

517306846

$4.43

1085

RH Rear Panel Foam

517307293

$6.48

1270

LH Rear Panel Foam

517306499

$13.63

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$113.82

2200a

Torx Screw M5 X 14

250000742

$1.20

2200b

Rubber Washer 5 mm

250200024

$1.77

2200c

Torx Truss Screw K40 X 12

250000577

$1.74

2200d

Elastic Stop Nut M5

232551414

$0.72

2200e

Torx Screw Nylon

250000732

$1.74

2400

Headlamp | Includes 2400 to 2400a

517305752

$425.35

2400a

Bulb

415130081

$39.97

2810

Grommet

517307161

$2.22

3010

Grommet

517307161

$2.22

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$20.74

3200a

Push Nut

732610072

$1.72

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$18.43

3400a

Seal Joint

517305157

$2.28

3800

Headlamp Fairing

517306301

$74.58

3810

Torx Screw M5 X 20

250000528

$1.74

3820

Panel Nut M5 X 0.8

250000958

$3.48

3830

Screw M4 X 16

250000725

$2.87

3840

Tuflok Plastic Rivet

293150230

$1.21

4400

Shift Lever Grille

517306303

$12.69

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37
