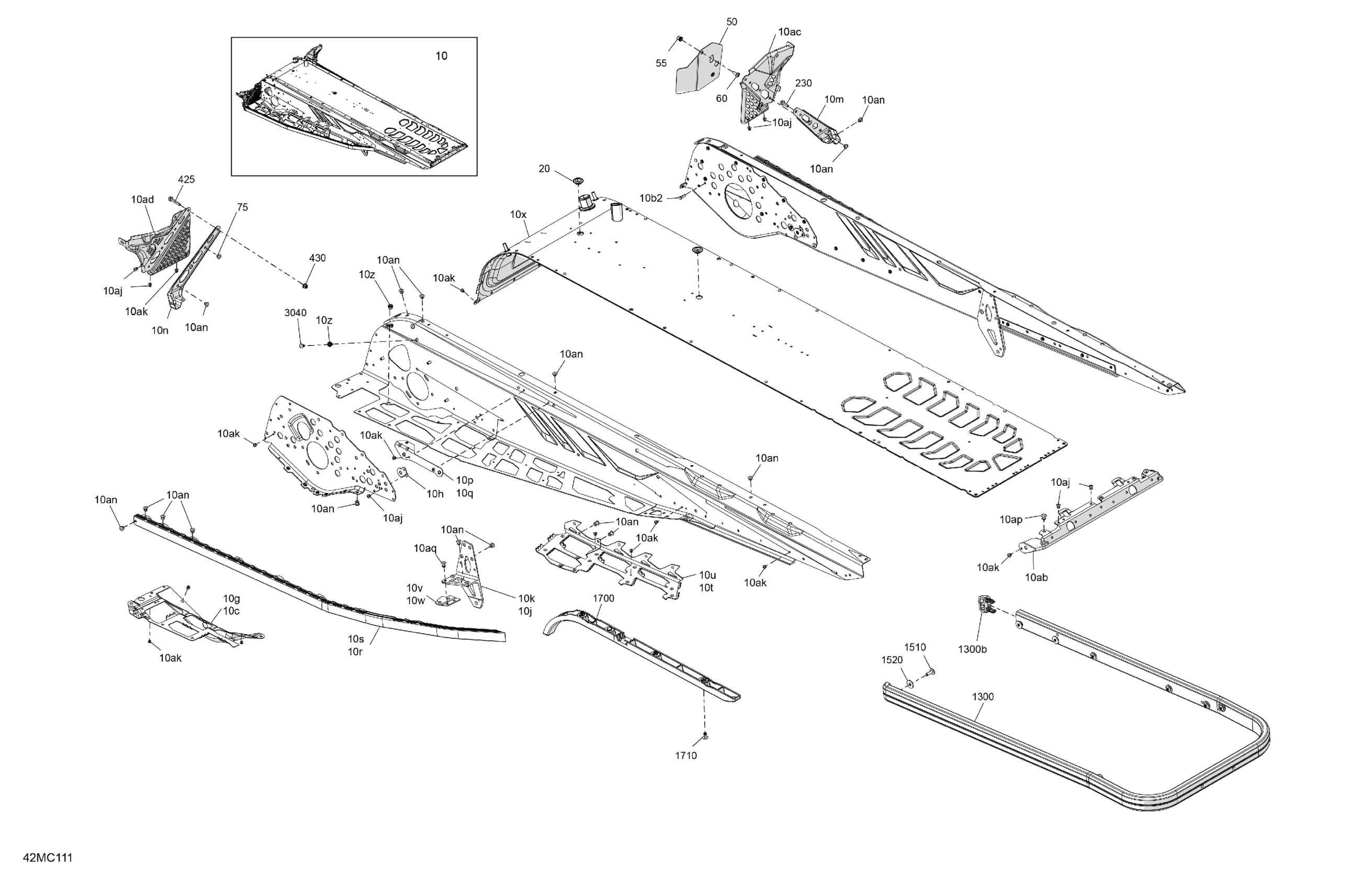

Ski-Doo EXPEDITION SPORT 900 ACE - (KDPC-KDPD) - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Full Moon, Chassis Tunnel Module 154" | Includes 10 to 10aq

518334209

$3,069.20

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

RH Footrest Reinforcement

518332578

$81.51

10g

LH Footrest Reinforcement

518332577

$81.51

10h

Front Suspension Arm Reinforcement

518335959

$3.85

10j

RH Rear Suspension Support

518334407

$41.51

10k

LH Bracket

518329632

$66.12

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

LH Under Chassis Reinforcement

518331744

$16.12

10q

RH Under Chassis Reinforcement

518331745

$16.89

10r

RH Roller

518328451

$180.74

10s

LH Roller

518328452

$180.74

10t

RH Tunnel Liner

518329646

$33.05

10u

LH Tunnel Liner

518329647

$33.05

10v

LH Reinforcement Plate

518329088

$3.08

10w

RH Reinforcement Plate

518329089

$4.22

10x

Radiator Tunnel 154 Ass'y

518334491

$692.28

10z

Clinch Nut M6 Hexsert

605636003

$4.12

10ab

Rear Cap

518328990

$20.74

10ac

RH Footrest

518334509

$20.74

10ad

LH Foot Protector

518331559

$23.82

10aj

Avex Rivet

390909100

$0.29

10ak

Avex Rivet

390909200

$0.29

10an

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ap

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10aq

Rivet Ornit 6,5 X 16.5

293150267

$1.94

20

Black, Plug

293730052

$6.37

50

Heat Shield

518331823

$7.42

55

Insert

293450275

$9.89

60

Torx Head Screw M6 X 16

250000717

$1.74

75

Rivet Ornit 6,5 X 12.5

293150265

$1.94

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$154.99

1300b

Bumper Cap

520001629

$0.95

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
