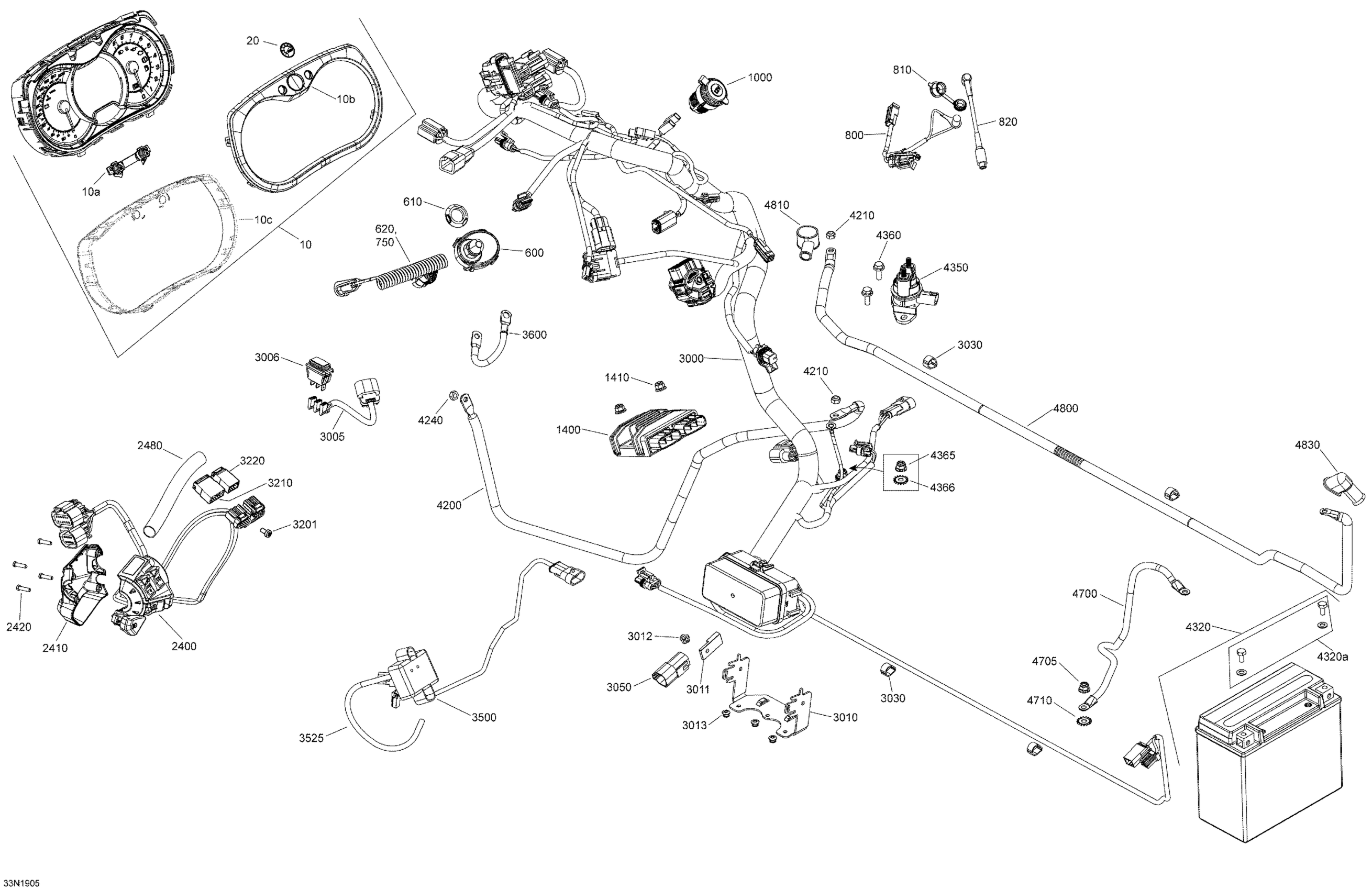

Ski-Doo EXPEDITION LE-SE-SWT 900 ACE, 2019 Electrical - 900 ACE Diagram

#

Description
Price

10

Indicator

515177912

$501.46

10

Indicator | Except Package SWT

515177913

$519.37

10a

Speedometer Button | XTP

415129355

$13.52

10b

Gauge Ring

415129348

$11.36

10c

Lens | XTP

415129349

$22.36

20

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

600

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

610

Safety Nut (DESS Switch)

278002963

$3.12

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

750

Green - RF Key Ass'y | Includes 625 to 625d

515178287

$62.66

800

Visor Harness

515177837

$31.31

810

Cap

572103300

$9.36

820

Extension

515175851

$10.55

1000

DC Outlet

710001248

$35.79

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2400

LH Switch Housing

515178197

$251.46

2400

LH Housing

515178198

$258.93

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

3000

Wiring Harness

515178451

Unavailable

3005

Eco Switch Wiring Harness This part replaces 515177568.

515179615

Unavailable

3006

ECO Rocker Switch

515177569

$17.88

3010

Fusebox Support

515178394

Unavailable

3011

Clip

270000141

$9.57

3012

Avdel Rivet 3/16"

293150037

$0.54

3013

Pop Rivet 3/16"

390402200

$0.30

3030

Velcro

293740059

Unavailable

3050

Connector Plug

710004904

$8.30

3201

Pan Screw Forming, 7500C

250000690

$2.00

3210

Male Terminal Housing, 6 Circuits

515175662

$8.31

3220

Male Terminal Housing, 4 Circuits

515175846

$8.31

3500

Compressor Module | With Air Suspension

515177125

$479.07

3525

Tubing 6 Mm 3000Mm Long

219704425

$12.75

3600

Ground Wire

515176883

$26.84

4200

Battery Wire

515176945

Unavailable

4210

Elastic Stop Nut M6

232561414

$1.78

4220

Flat Washer 6 mm

234061410

$1.19

4240

Elastic Stop Nut M6

232561414

$1.78

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

4320a

Battery Bolt Kit

250000282

$3.39

4320

Battery | Includes 900 to 900a

515176151

$199.45

4320a

Battery Bolt Kit

515176081

$5.85

4350

Starter Relay

278003012

$40.27

4360

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

4365

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4366

Lock Washer Serrated M6

250200041

$1.06

4700

Ground Wire

515176777

Unavailable

4705

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4710

Lock Washer Serrated M6

250200041

$1.06

4800

Battery Wire

515176778

Unavailable

4810

Protection Cap

570151000

$17.88

4830

Protector Cap

710000495

$9.84
