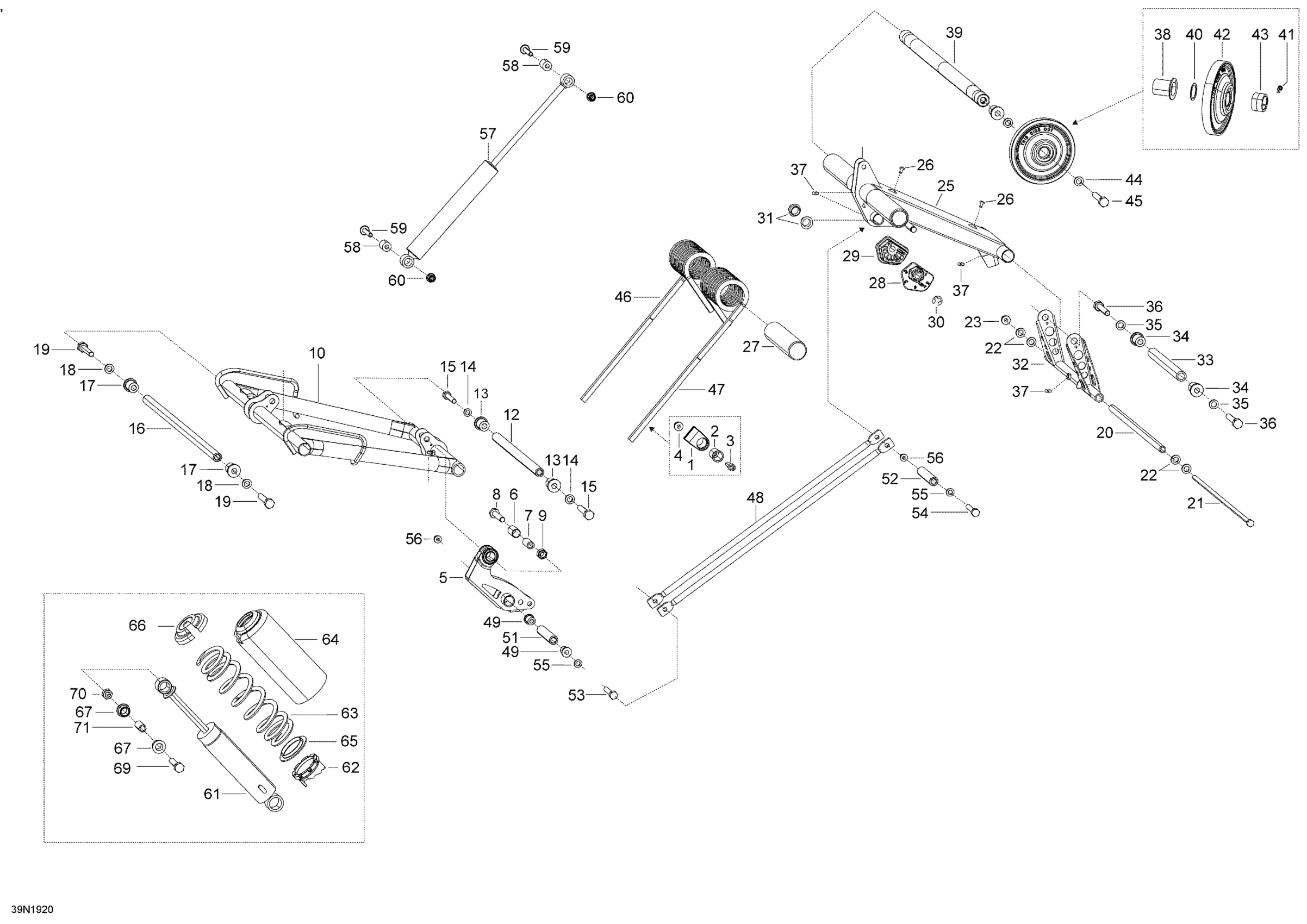

Ski-Doo EXPEDITION LE-SE-SWT 900 ACE, 2019 Rear Suspension - Upper Section - SWT Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Rocker

503192211

$83.99

6

Bushing

503193037

$16.18

7

Bushing | Includes 240d to 240d1

503189282

$4.34

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Front Arm Ass'y | Includes 1400 to 1400a

503193275

$285.99

12

Lower Shaft

503191390

$28.99

13

Bushing

503189324

$14.15

14

Washer

503192496

$0.77

15

Hex. Screw S.Grip M10 X 55

250000605

$8.11

16

Upper Shaft

503191392

$48.99

17

Bushing

503189324

$14.15

18

Washer

503189564

$0.74

19

Hex. Screw S.Grip M10 X 55

250000605

$8.11

20

Axle Pivot

503191396

$80.49

21

Bolt 369MM

503195156

$25.99

22

Washer

503189157

$3.28

23

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Rear Arm

503191398

$312.49

26

Black, Dart

414644300

$0.98

27

Plastic Bushing

503191740

$7.83

28

LH Cam Adjuster

503191565

$16.49

29

RH Cam Adjuster

503191566

$16.49

30

E-Circlip

293370013

$0.65

31

Swivel Bushing

503191555

$7.83

33

Lower Shaft

503192330

$45.99

34

Cushion

503191640

$5.93

35

Washer

503192491

$4.54

36

Socket Head Screw M12 X 35

205523554

$4.44

37

Grease Fitting

408200700

$3.49

38

Cushion

503191451

$14.15

39

Upper Shaft

503195202

$94.99

40

Washer

503190328

$12.65

41

Socket Set Screw M6 X 8

206260844

$1.48

42

Wheel 165 | Includes 3070 to 3070a

503190803

$51.99

43

Retaining Ring

503194674

$15.49

44

Washer

503192491

$4.54

45

Socket Screw M12 X 35

250000484

$7.51

46

Painted Square Spring, RH

503192910

$126.99

47

Painted Square Spring, LH

503192911

$126.99

48

Link Rod

503191765

$18.49

49

Swivel Bushing

503191555

$7.83

51

Axle Bar (Long)

503190643

$17.39

52

Axle Bar (Long)

503190643

$17.39

53

Hex. Screw M8 X 90

207089044

$3.48

54

Hex. Screw M8 X 90

207089044

$3.48

55

Washer

503189157

$3.28

56

Hex. Flange Elastic Nut M8

233281414

$1.47

57

Rear Shock

503193520

$248.99

58

Bushing

414936000

$13.99

59

Hex. Flange Screw M8 X 40

207684044

$1.48

60

Hex. Flange Elastic Nut M8

233281414

$1.47

61

Center Shock

503192266

$164.49

62

Adjustment Cam

505073625

$12.99

63

Black, Spring 242MM

503191880

$67.99

64

Protector

503193663

$37.99

65

Spring Guide

503191872

$2.29

66

Spring Stopper

706200881

$12.99

67

Urethane Bushing

503189117

$8.19

71

Bushing | Includes 240d to 240d1

503189282

$4.34

69

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

70

Elastic Locking Nut M10 X 1.5

233601416

$1.69
