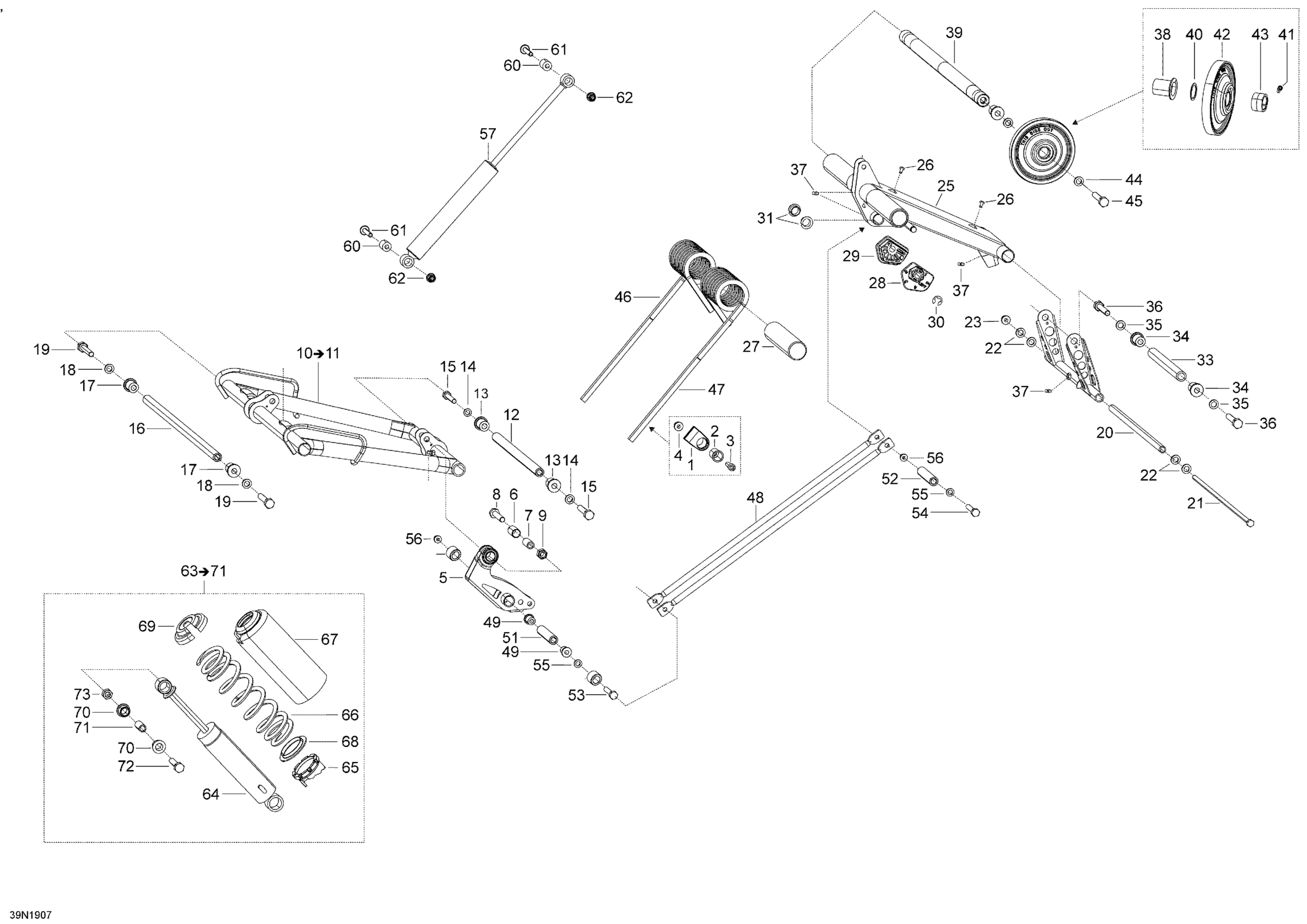

Ski-Doo EXPEDITION LE-SE-SWT 900 ACE, 2019 Rear Suspension - Upper Section - LE Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Rocker

503192211

$76.09

6

Bushing

503193037

$14.90

7

Bushing | Includes 240d to 240d1

503189282

$4.06

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

9

Elastic Locking Nut M10 X 1.5

233601416

$1.63

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$203.70

12

Lower Shaft

503191390

$26.84

13

Bushing

503189324

$10.84

14

Washer

503192496

$0.73

15

Hex. Screw S.Grip M10 X 55

250000605

$7.09

16

Upper Shaft

503191391

$33.55

17

Bushing

503189324

$10.84

18

Washer

503189564

$0.70

19

Hex. Screw S.Grip M10 X 55

250000605

$7.09

20

Axle Pivot

503191396

$76.09

21

Bolt 369MM

503195156

$24.60

22

Washer

503189157

$3.10

23

Hex. Flange Elastic Nut M8

233281414

$1.31

25

Rear Arm

503191398

$248.48

26

Black, Dart

414644300

$0.90

27

Plastic Bushing

503191740

$5.54

28

LH Cam Adjuster

503191565

$13.54

29

RH Cam Adjuster

503191566

$13.54

30

E-Circlip

293370013

$0.60

31

Swivel Bushing

503191555

$5.54

33

Lower Shaft

503192330

$44.75

34

Cushion

503191640

$5.54

35

Washer

503192491

$4.25

36

Socket Head Screw M12 X 35

205523554

$4.15

37

Grease Fitting

408200700

$3.21

38

Cushion

503191451

$10.84

39

Upper Shaft

503191405

$86.54

40

Washer

503190328

$11.00

41

Socket Set Screw M6 X 8

206260844

$1.43

42

Wheel 165 | Includes 3070 to 3070a

503190803

$48.48

43

Retaining Ring

503194366

$36.54

44

Washer

503192491

$4.25

45

Socket Screw M12 X 35

250000484

$7.09

46

Black RH Square Spring

503192377

$105.94

47

Black LH Square Spring

503192378

$105.94

48

Link Rod

503191765

$17.13

49

Swivel Bushing

503191555

$5.54

51

Axle Bar (Long)

503190643

$14.90

52

Axle Bar (Long)

503190643

$14.90

53

Hex. Screw M8 X 90

207089044

$3.24

54

Hex. Screw M8 X 90

207089044

$3.24

55

Washer

503189157

$3.10

56

Hex. Flange Elastic Nut M8

233281414

$1.31

57

Rear Shock

503193520

$231.31

60

Bushing

414936000

$11.21

61

Hex. Flange Screw M8 X 40

207684044

$1.43

62

Hex. Flange Elastic Nut M8

233281414

$1.31

64

Center Shock

503192266

$152.96

64

Center Shock

503192991

$231.31

65

Adjustment Cam

505073625

$11.82

66

Black, Spring

503189686

$64.90

67

Protector

503193663

$34.30

68

Spring Guide

503191872

$2.12

69

Spring Stopper

706200881

$11.82

69

Spring Stopper

503189912

$16.39

70

Urethane Bushing

503189117

$6.67

71

Bushing | Includes 240d to 240d1

503189282

$4.06

72

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

73

Elastic Locking Nut M10 X 1.5

233601416

$1.63
