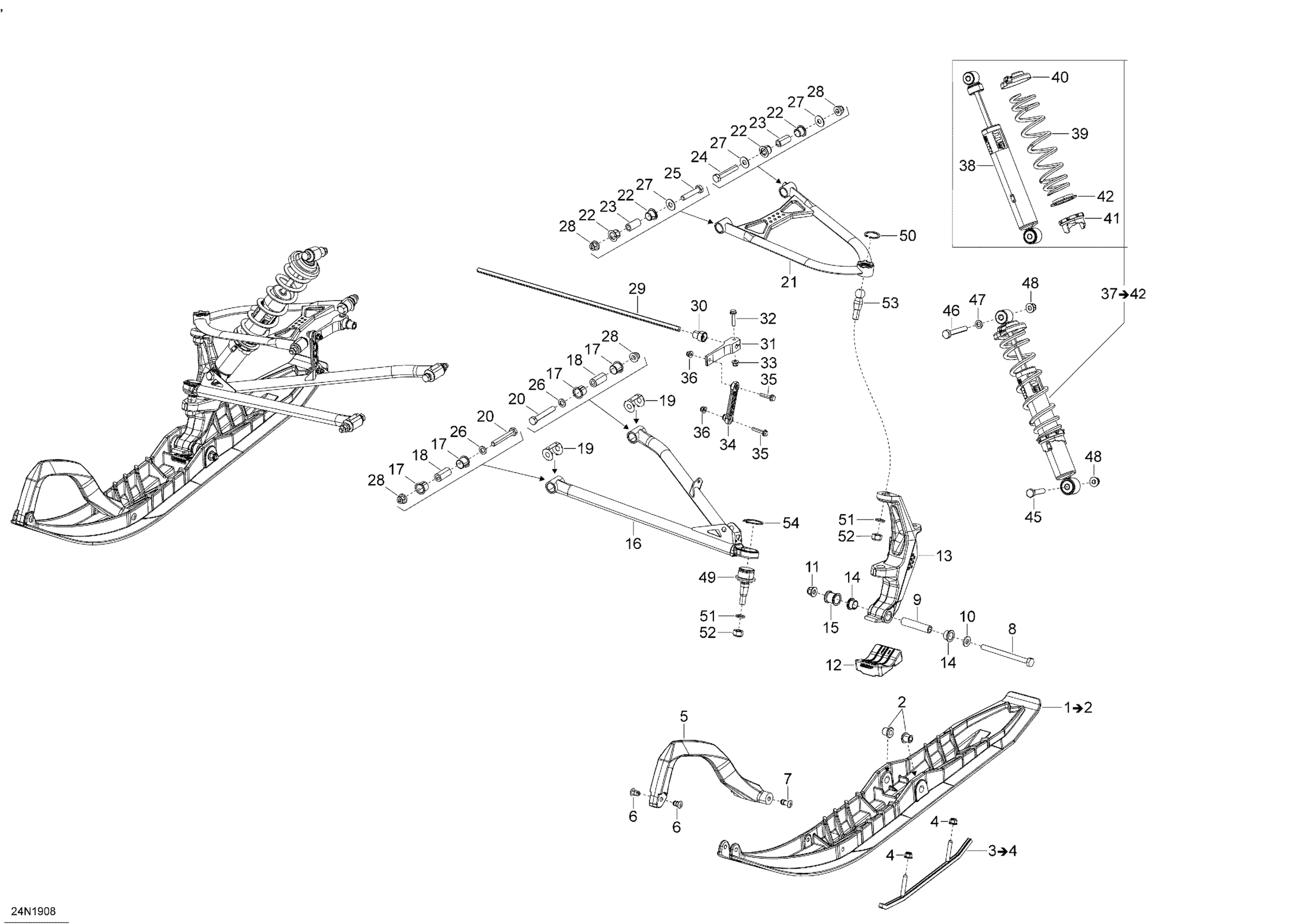

Ski-Doo EXPEDITION LE-SE-SWT 900 ACE, 2019 Front Suspension And Ski - 800R E-TEC - Europe Diagram

#

Description
Price

1

Black, Ski

505073227

$179.99

3

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Red, Handle

505073388

$41.49

5

Black, Handle

505072976

$35.99

5

Handle | Viper Red

505073109

$34.99

6

Retainer 17mm long

505071812

$5.95

7

Retainer 23mm Long

505072133

$6.78

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

503192496

$0.77

11

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

12

Ski Stopper

505072594

$18.49

13

Black, LH Ski Leg | Package SE

505073630

$249.99

13

LH Ski Leg

505073628

$249.99

13

Black, Ski Leg RH | Package SE

505073631

$249.99

13

RH Ski Leg

505073629

$249.99

14

Leg Bushing

505072690

$12.49

15

Spacer

505071999

$14.99

16

Black Epoxy, RH Lower Arm

505073584

$204.99

16

Black Epoxy, LH Lower Arm

505073583

$204.99

17

Bushing

505073330

$9.23

18

Sleeve

505072209

$17.84

19

Wear Plate

505072634

$6.29

20

Screw Hex. M10 X 70

250001024

$2.11

21

Black Epoxy, LH Upper Arm

505073588

$154.99

21

Black Epoxy, RH Upper Arm

505073589

$154.99

22

Bushing

505073329

$9.23

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

800

Stabilisator

505072602

$68.99

810

Bushing

505072064

$2.32

810

Cap

572091300

$12.99

31

Stabilisator Lever

505072394

$18.73

32

Hex. Flange Screw M6 X 30

207663046

$1.69

33

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34

Sway Bar Double Joint Link

505072204

$21.99

35

Hex. Flange Screw M6 X 30

207663046

$1.69

36

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Front Shock

505072517

$248.99

38

Front Shock (EUR)

505073342

$248.99

38

Front Shock

505072517

$248.99

38

Front Shock (EUR)

505073342

$248.99

38

Front Shock

505072517

$248.99

39

Spring

505073827

$158.99

39

Black Spring 300mm-18n/mm

505074329

Unavailable

39

Spring

505073827

$158.99

39

Black Spring 300mm-18n/mm

505074329

Unavailable

39

Spring

505073827

$158.99

40

Spring Seat

230076

$9.69

40

Spring Stopper

706200881

$12.99

40

Spring Seat

230076

$9.69

40

Spring Stopper

706200881

$12.99

40

Spring Seat

230076

$9.69

41

Adjustment Cam

505073625

$12.99

42

Spring Guide

503191872

$2.29

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

Ball Joint

505073636

$51.99

50

Circlip

293370070

$8.99

51

Flat Washer 12 mm

234021410

$0.72

52

Hex. Elastic Hex. Nut M12

250100089

$0.46

53

Upper Ball Joint

505072913

$72.99

54

Circlip

293370035

$2.64

60

O-Ring

505072448

$2.32
