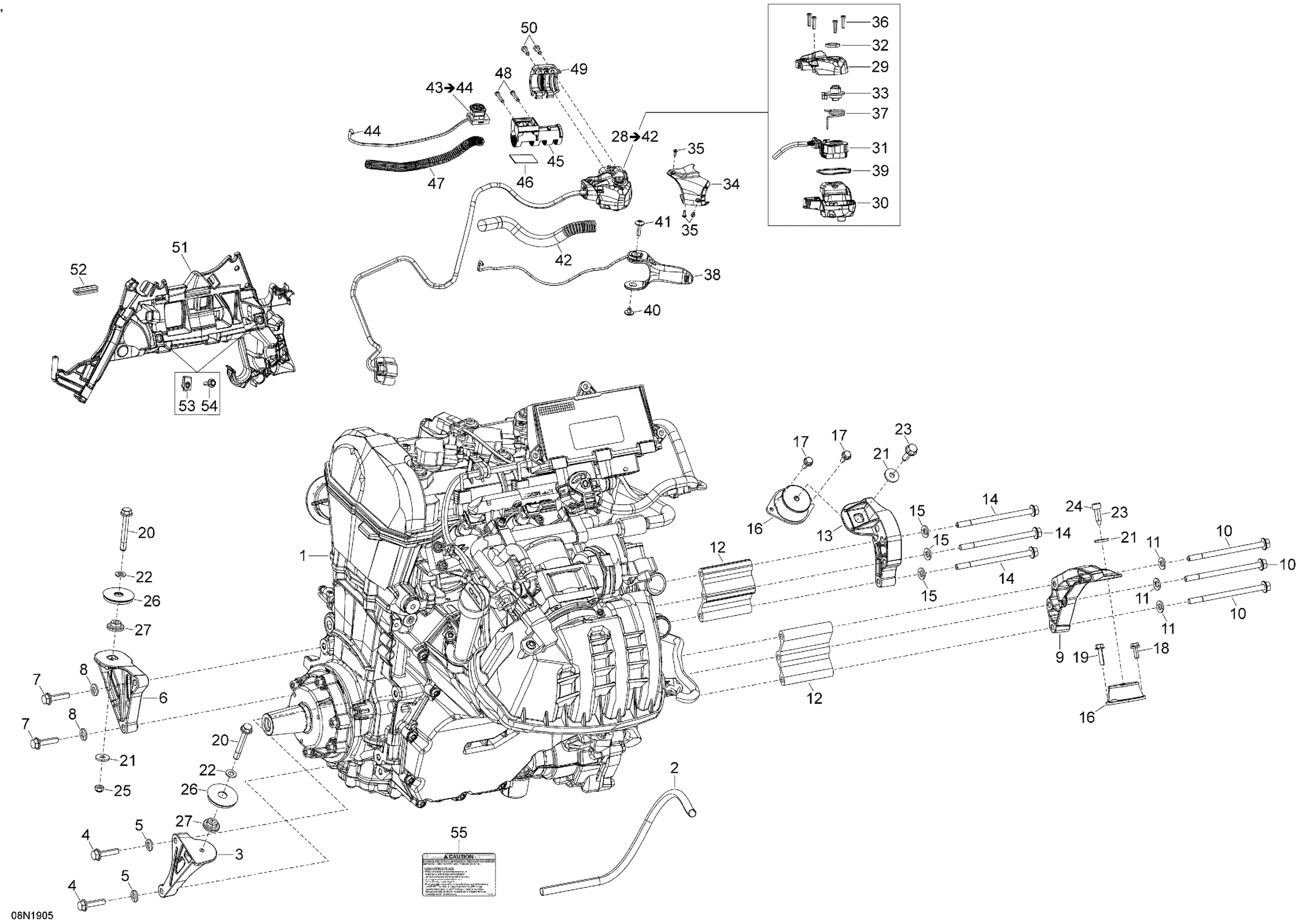

Ski-Doo EXPEDITION LE-SE-SWT 900 ACE, 2019 Engine - 900 ACE Diagram

#

Description
Price

2

Protector Tube

512061067

$23.05

3

Rear Support PTO

512061139

$23.82

4

Hex. Flange Screw M8 X 35

250000986

$1.74

5

Conical Spring Washer M8

250200146

$0.83

6

Front Support PTO

512061140

$17.66

7

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Conical Spring Washer M8

250200146

$0.83

9

Rear Support MAG

512061142

$27.66

10

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

11

Conical Spring Washer M8

250200157

$2.06

13

Front Support MAG

512061141

$18.43

14

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

15

Conical Spring Washer M8

250200157

$2.06

16

Rubber Mount

512060729

$69.97

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

19

Hex. Flange Screw M6 X 25

207562544

$1.39

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

21

Yellow, Washer

503183200

$3.00

22

Flat Washer With Teflon 8 mm

250200008

$3.12

73

O-Ring

293300123

$1.00

23

Cone Screw, M8 X 30

250000257

$1.72

24

Cone Screw, M8 X 25

250000639

Unavailable

25

Hex. Elastic Stop Nut M8

232581414

$0.47

26

Engine Stopper

512061536

$18.43

27

Spacer

512060285

$17.66

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$278.43

29

Handle Ass'y kit

415130047

$96.89

30

Cap

512060862

$11.57

31

Torx Screw M2.9 x 9.5

250000623

$3.11

32

Torx Screw

250000671

$0.83

33

Screw

512060961

$10.52

34

Torx Screw M5 X 20

250000528

$1.74

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

45

Switch Support

512061453

$8.38

46

Friction Tape

294000973

$8.97

47

Protector Tube

515177946

$4.22

48

Torx Screw #8-18

250000263

$1.02

49

Front Housing

512060987

$8.34

50

Torx Screw M5 X 14

250000632

$6.18

51

Module Support

512060994

$14.54

52

Trim 1000Mm Long

219704354

$14.74

53

Panel Nut M5 X 0.8

250000958

$3.48

54

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

55

Caution Decal, Oil Level

516005521

Unavailable
