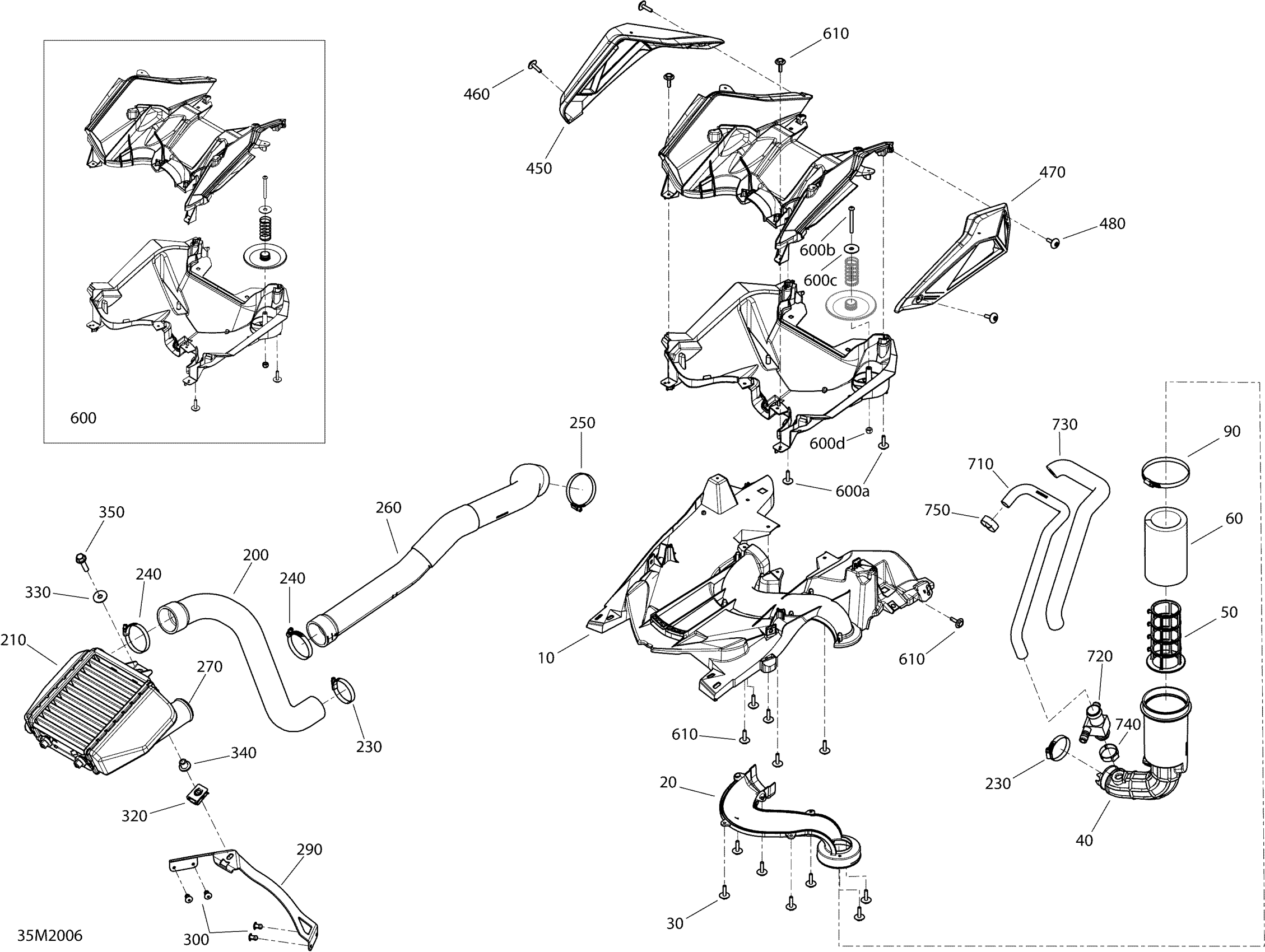

Ski-Doo EXPEDITION LE/SE 900 ACE Turbo - 2020 Engine - Air Intake Diagram

#

Description
Price

10

Structural Plate

508000886

$40.99

20

Tube In

508000887

$13.49

30

Screw M4 X 16

250000725

$3.49

40

Inlet Muffler

508001008

$56.99

50

Grill

508000868

$7.89

60

Foam

508000869

$7.89

90

Norma Clamp

514052924

$14.22

200

Inlet Hose

508000856

$76.99

210

Intercooler

508000880

$389.99

230

Norma Clamp

293650077

$7.41

240

Norma Clamp

293650079

$11.60

250

Norma Clamp

293650079

$11.60

260

Inlet Hose

508001010

$91.99

270

Protector Tube

508001033

$13.49

290

Rear Support

508000861

$36.99

300

Avex Rivet

390909100

$0.30

320

Panel Nut M6 X 1.0

250100208

$1.46

330

Flat Washer

250200082

$0.42

340

Bushing

293900100

$7.65

350

Hex. Flange Screw M6 X 25

207562544

$1.69

450

RH Air Filter (Nitex Mesh)

508000906

$38.99

460

Screw M4 X 16

250000889

$3.09

470

LH Air Filter (Nitex Mesh)

508000905

$38.99

480

Screw M4 X 16

250000889

$3.09

600

Air Duct Ass'y | Includes 600 to 600j

508000915

$99.99

600a

Screw M4 X 16

250000725

$3.49

600b

Socket Head Screw M4 X 40

205444056

$2.11

600c

Flat Washer

224060201

$1.26

600d

Elastic Stop Nut M4

232541414

$0.58

610

Screw M4 X 16

250000725

$3.49

710

Vent Hose

508000862

$16.49

720

Heated Breather

508000946

$27.99

730

Insulating Tube

508000907

$16.49

740

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

750

Tridon Gear Clamp

293650172

$3.09
