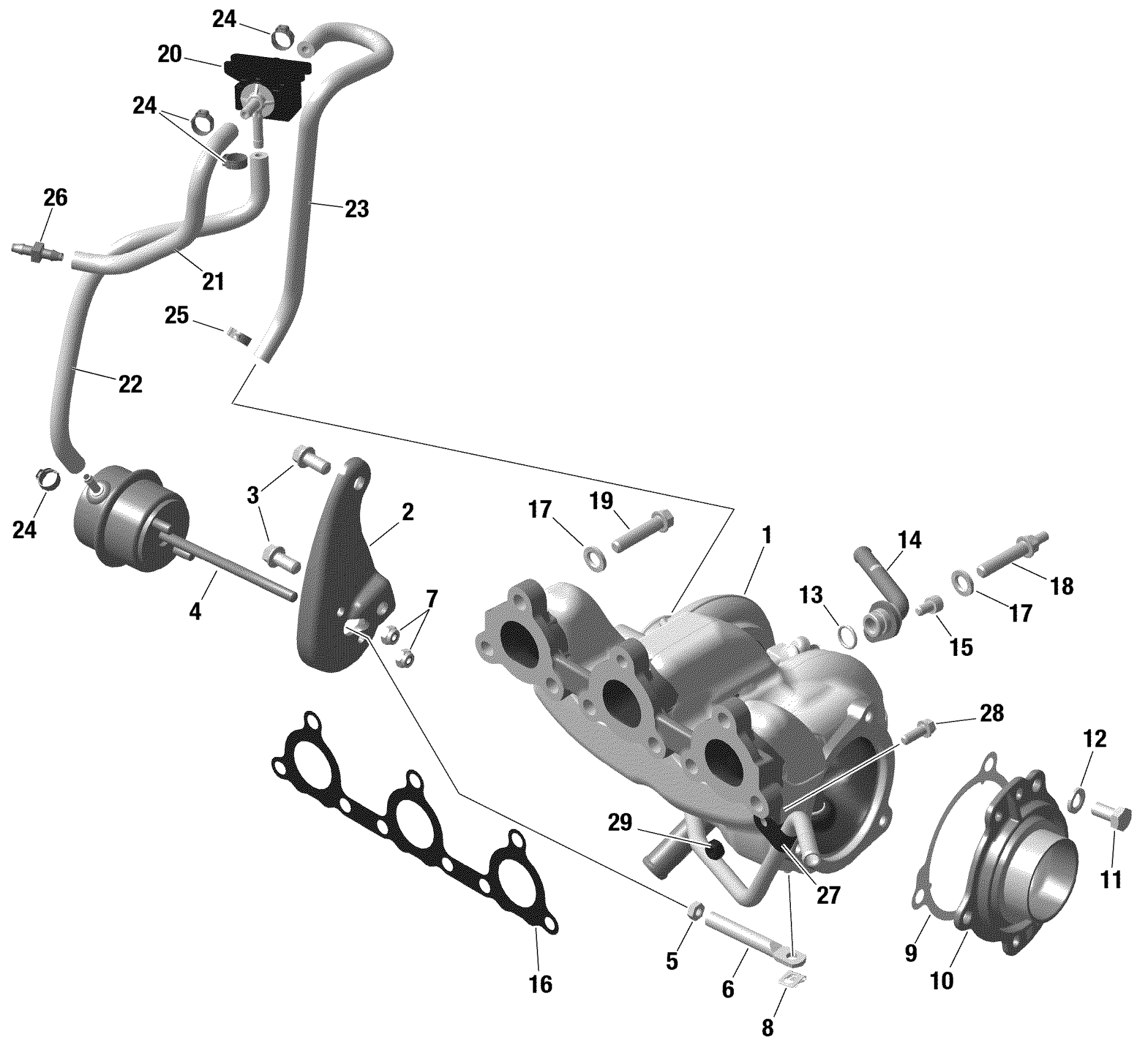

Ski-Doo EXPEDITION LE/SE 900 ACE Turbo - 2020 Engine - Turbocharger Diagram

#

Description
Price

1>15

Turbo Ass'y - for turbine/exhaust manifold replacement see TST 143931

420893881

$1.00

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4>6

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Circlip

420845000

$1.01

9

Exhaust Gasket

420431941

$12.71

10

Exhaust Flange

420873511

$56.99

11

Hex Screw M8 X 16

420940586

$19.99

12

Washer

420827521

$5.50

13

O-Ring

420650928

$3.17

14

Cooling Water Pipe

420622063

$45.49

15

Allen Screw M6 X 10

420241081

$2.11

16

Gasket | Included in gasket kit

420431850

$15.89

17

Washer

420827521

$5.50

18

Collar Screw M8 X 35

420440693

$4.79

19

Torx Flange Screw M8 X 35

420641188

$7.41

20

Solenoid Valve

420664636

$129.99

21

Hose 390MM This part replaces 420201231.

420201233

$21.99

22

Hose 390MM This part replaces 420201231.

420201233

$21.99

23

Hose 390MM This part replaces 420201231.

420201233

$21.99

24

Clamp 9.2-10.9 mm

420853133

$3.56

25

Gear Clamp

420851468

$5.97

26

Tube Connector

420922160

$5.90

27

Cable Clamp

420851101

$2.51

28

Torx Flange Screw M6 X 16

420440162

$3.17

29

Lock Nut M6-10

420942046

$14.22
