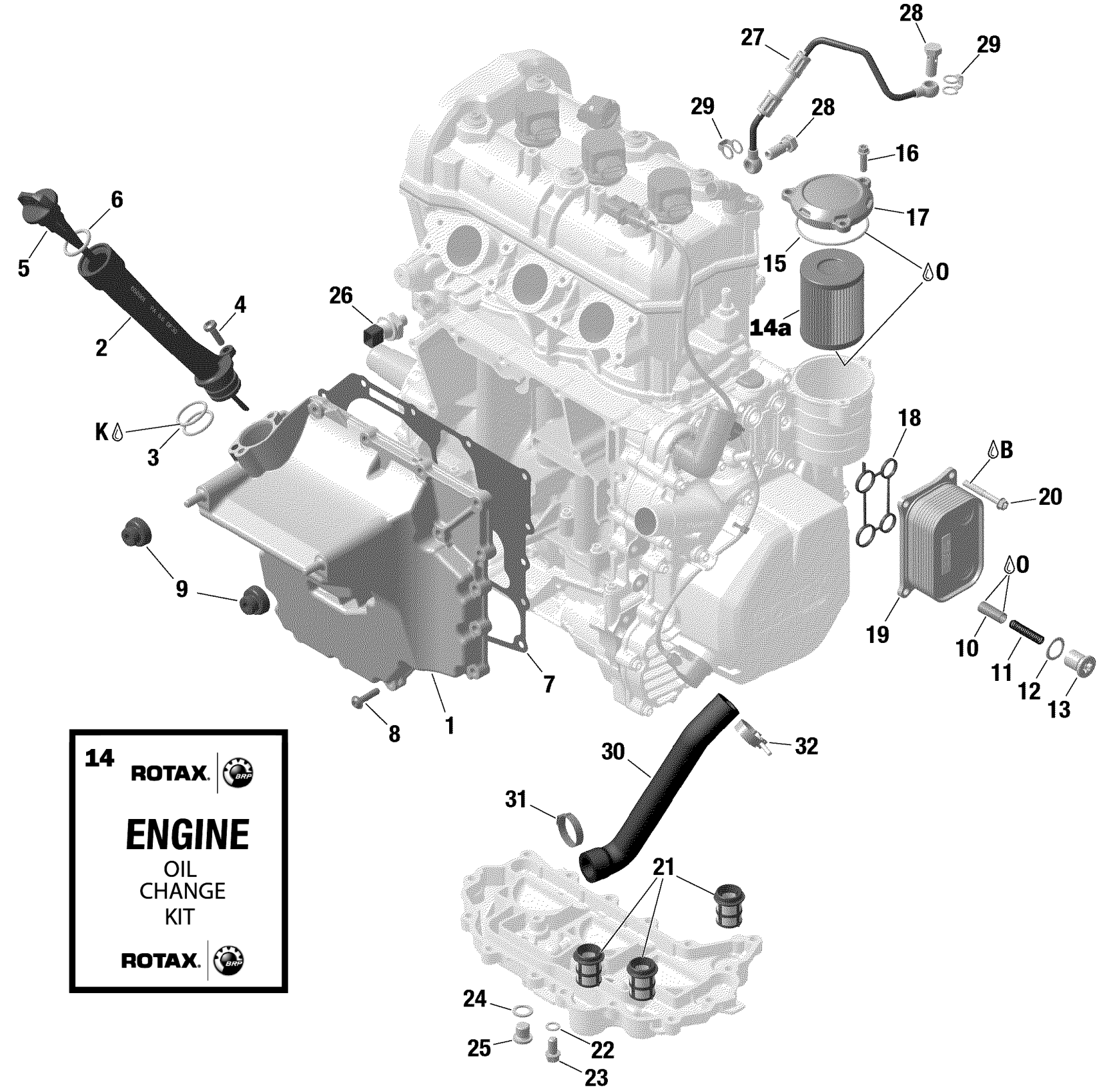

Ski-Doo EXPEDITION LE/SE 900 ACE Turbo - 2020 Engine - Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$104.45

2

Oil Filler Tube

420656901

$9.19

3

O-Ring

420430440

$3.49

4

Torx Flange Screw M6 X 20

420441386

$2.00

5

Oil Dipstick | Includes no. 5-6

420856666

$11.18

6

O-Ring

420631640

$2.00

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

8

Torx Flange Screw M6 X 25

420841549

$1.91

9

Rubber Grommet

420860150

$5.06

10

Pressure Regulating Piston

420256591

$12.15

11

Spring

420239445

$12.15

12

Gasket Ring

420430624

$1.73

13

Plug Screw

420441372

$9.03

14

Ski-Doo Oil Change Kit 0W40 900 ACE

9779254

$92.51

14a

Oil Filter

420956124

$19.37

15

O-Ring

420230923

$2.97

16

Torx Flange Screw M6 X 20

420440207

$2.91

17

Oil Filter cover

420612135

$10.78

18

Gasket

420431871

$10.13

19

Oil Water Heat Exchanger

420656698

$110.42

20

Torx Flange Screw M6 X 45

420440324

$0.93

21

Oil Sieve

420656680

$10.01

22

Sealing Ring

420950141

$1.88

23

Torx Flange Screw M8 X 16

420440852

$3.88

24

Copper Washer

420250640

$0.93

25

Plug Screw M12 x 1,5

420241701

$10.76

26

Oil Pressure Switch

420256978

$45.49

27

Oil Line

420456322

$90.27

28

Banjo Bolt

420840184

$8.24

29

Sealing Ring | Included in gasket kit

420230153

$4.15

30

Molded Hose

420201750

$29.07

31

Clamp

420251578

$8.09

32

Clamp

420251223

$2.94
