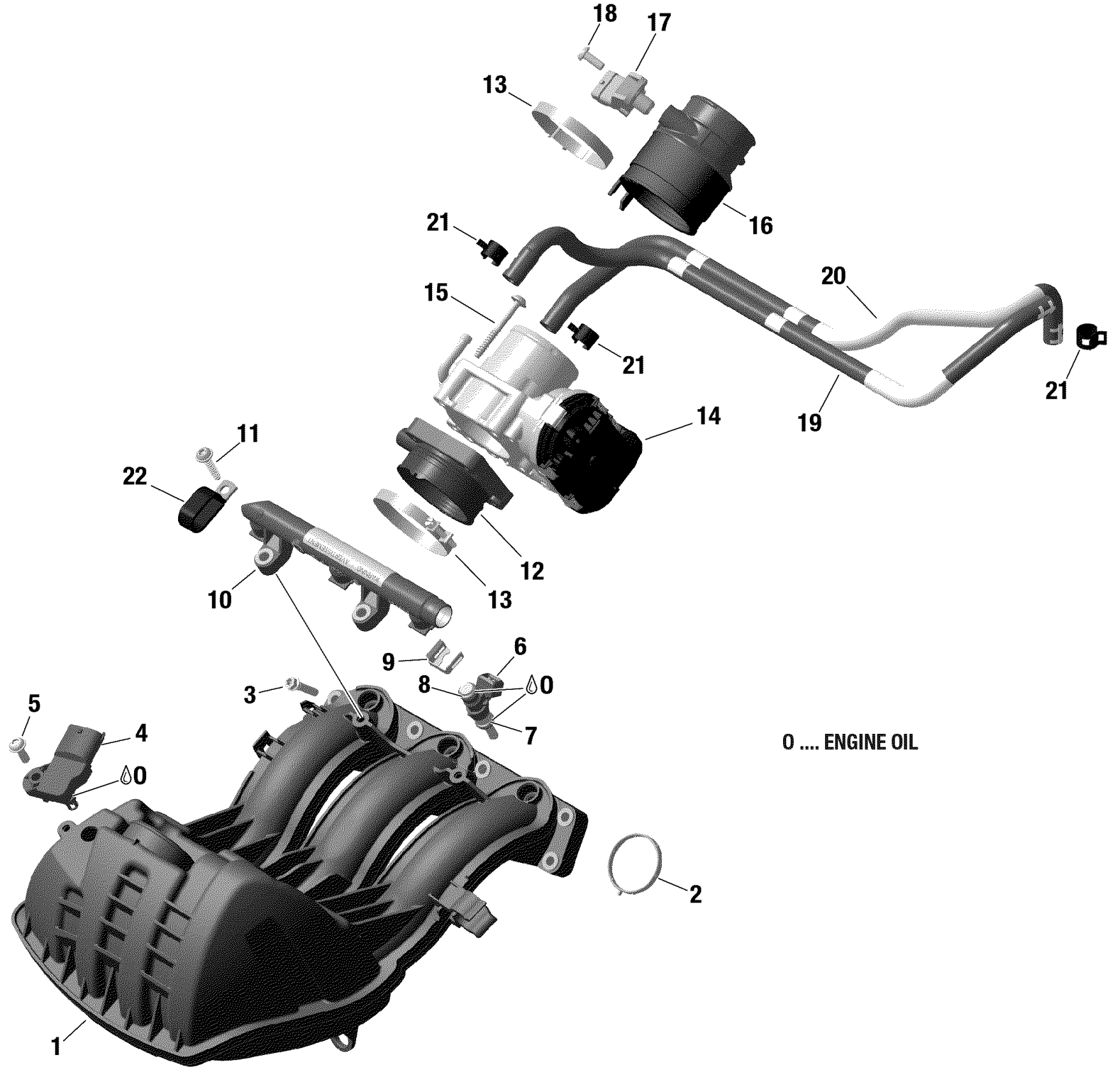

Ski-Doo 006 - EXPEDITION LE/SE 900 ACE Turbo - North America, 2020 01- Engine - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1>2

Airbox Ass'y | Includes no. 1-2

420867342

$239.99

2

Gasket | Included in gasket kit

420431662

$10.33

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Pressure Sensor And Air Temperature

515178563

$159.99

5

Torx Flange Screw M6 X 20

420841103

$3.66

6>8

Injection Valve | Includes 8-10

420874845

$158.99

7

O-Ring

420831050

$20.49

8

O-Ring

420631220

$14.28

9

Injector Clip

420853030

$3.09

10

Fuel Rail

420874966

$14.49

11

Torx Screw 6X30

420441575

$3.06

12

Intake Neck

420867110

$35.99

13

Hose Clamp

420251830

$14.28

14

Throttle Body

420893148

$381.49

15

Torx Flange Screw M6 X 50

420441588

$4.44

16

Connecting Socket

420867556

$35.99

17

Pressure Sensor

420274058

$124.99

18

Torx Flange Screw M6 X 16

420641588

$2.11

19

Molded Hose

420201506

$30.49

20

Molded Hose

420201500

$24.99

21

Clamp

420853511

$7.51

22

Double Clamp

420951830

$14.22
