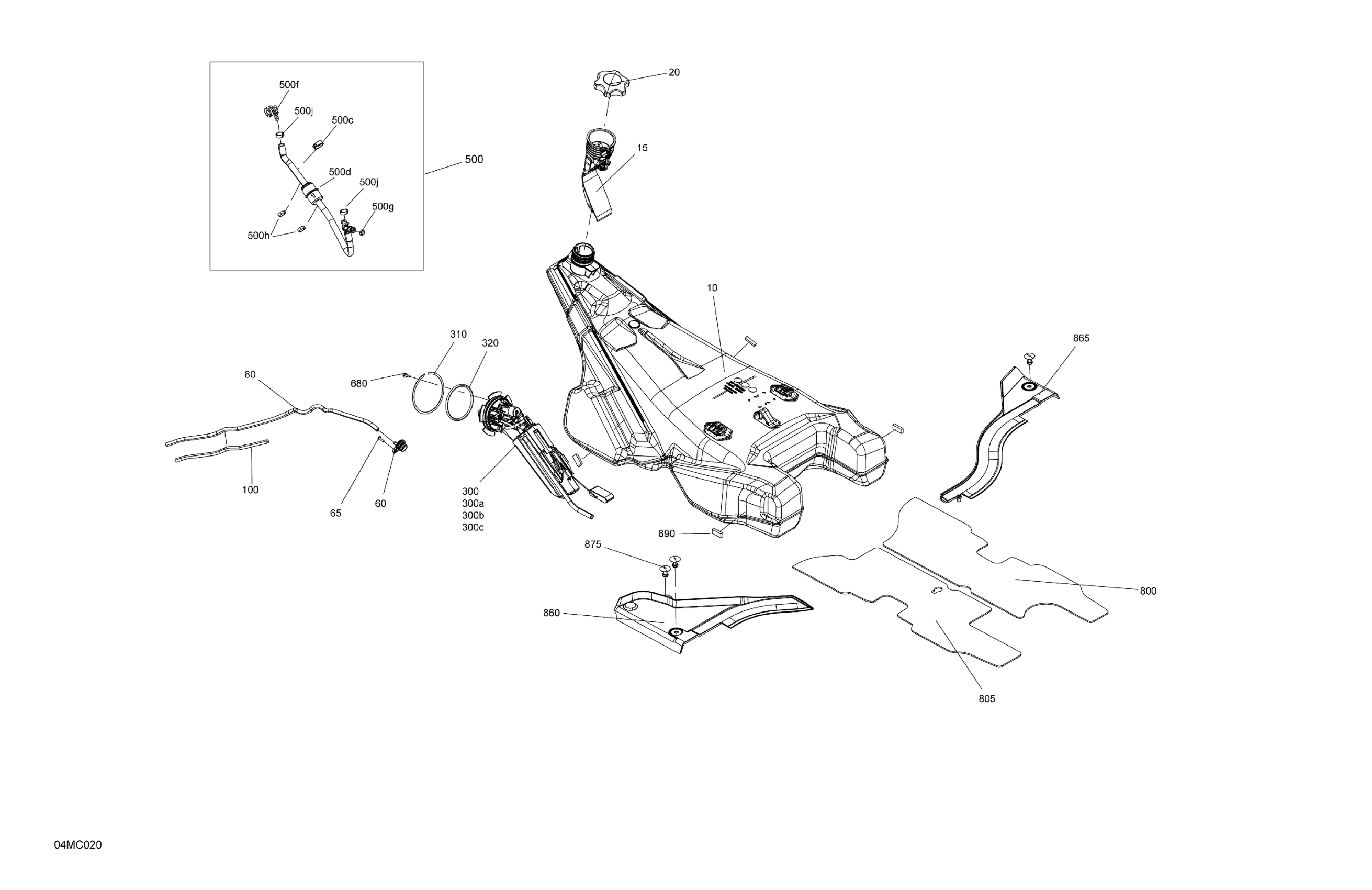

Ski-Doo 006 - EXPEDITION LE 900 ACE TURBO R - 24 INCH - Europe, 2023 02- Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034100

$274.99

15

Tube Ass'y

513033959

$28.99

20

Fuel Tank Cap

513033943

$26.99

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

100

Protector Tube | Not shown

503195447

$13.49

300

Fuel Pump Ass'y | Includes 300 to 300c

513034083

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130281

$149.99

300c

Canister

415130507

$85.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500k

513034122

$73.99

500c

Ring

513033910

$7.99

500d

Fuel Filter

513034047

$21.99

500f

Elbow Fitting 90°

293710105

$14.22

500g

O-Ring

513033668

$10.99

500h

Oetiker Clamp

293650125

$3.29

500j

Crimp Clamp

293650053

$3.09

680

Hex. Flange Screw M5 X 16

250000911

$0.85

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

LH Guide Ass'y

513033978

$11.05

865

RH Guide Ass'y

513033979

$11.05

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

890

Tank Guard

513034038

$4.39
