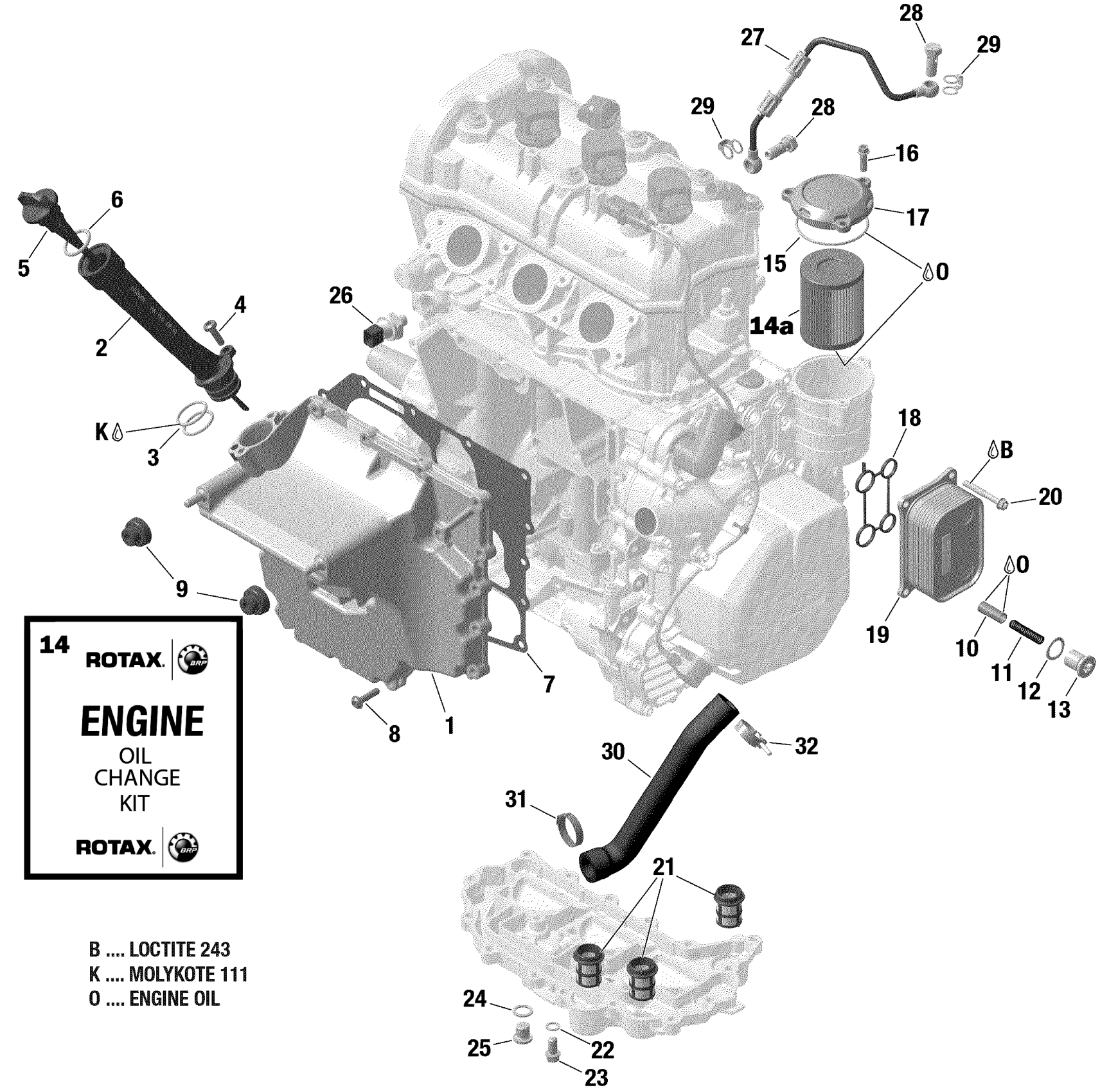

Ski-Doo EXPEDITION LE 900 ACE TURBO - 2022 Rotax - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$110.99

2

Oil Filler Tube

420656901

$9.02

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Oil Dipstick | Includes no. 5-6

420856666

$13.16

6

O-Ring

420631642

$2.11

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

$18.49

8

Torx Flange Screw M6 X 25

420841549

$2.00

9

Rubber Grommet

420860150

$5.39

10

Pressure Regulating Piston

420256591

$14.22

11

Spring

420239445

$14.22

12

Gasket Ring

420430624

$1.89

13

Plug Screw

420441372

$10.33

14

Ski-Doo Oil Change Kit 0W40 900 ACE

9779254

$97.99

14a

Oil Filter

420956124

$20.99

15

O-Ring

420230923

$3.17

16

Torx Flange Screw M6 X 20

420440207

$3.06

17

Oil Filter cover

420612135

$11.63

18

Gasket

420431871

$11.60

19

Oil Water Heat Exchanger

420656698

$116.49

20

Torx Flange Screw M6 X 45

420440324

$0.98

21

Oil Sieve

420656680

$11.60

22

Sealing Ring

420950141

$2.00

23

Torx Flange Screw M8 X 16

420440852

$4.12

24

Copper Washer

420250640

$0.98

25

Plug Screw M12 x 1,5

420241701

$12.63

26

Oil Pressure Switch

420256978

$49.99

27

Oil Line

420456322

$95.49

28

Banjo Bolt

420840184

$9.48

29

Sealing Ring | Included in gasket kit

420230153

$4.44

30

Molded Hose

420201750

$30.49

31

Clamp

420251578

$8.57

32

Clamp

420251223

$3.07
