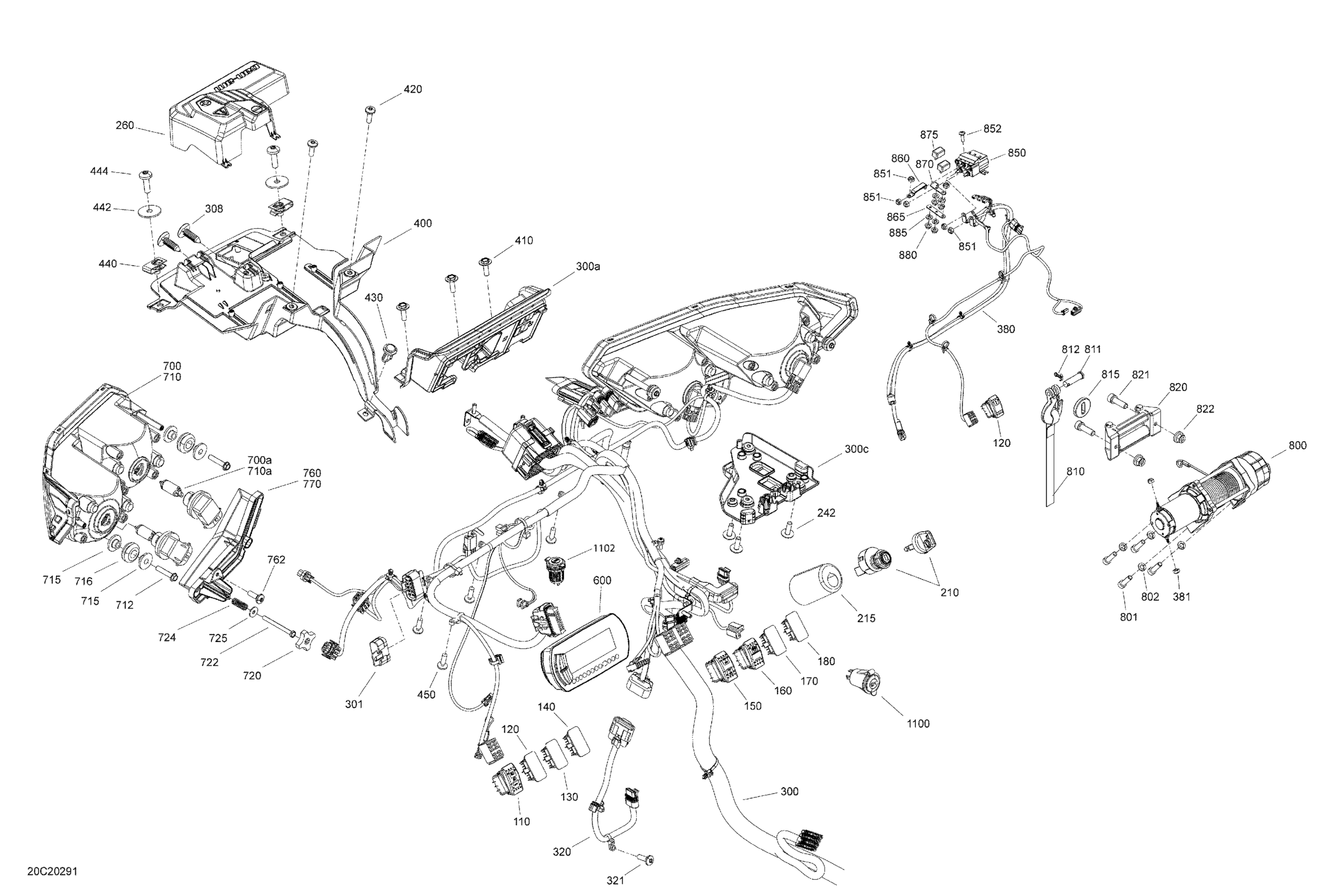

Can-Am Defender MAX HD8 - 2020 Electric - System - Front section Diagram

Light Switch

710004492

$46.12

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch Winch

710002052

$28.92

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch 2X4

710005489

$32.28

Differential Lock Switch

710005470

$46.12

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Inter Allumage *Ignition

710007870

$55.35

Key Switch Protector

710005739

$2.69

Screw PT Type K-50 X 16

250000959

$1.74

Junction Block Cover

710006707

$6.45

Main Wiring Harness | Includes 300 to 300c

710006377

$876.89

Fusebox Support

710006640

$7.69

Connector Support

710006706

$5.00

DPS Connector Cap | Not Shown

710005760

$15.22

Black, Dart

293730006

$0.81

Throttle Pedal Harness

710006837

$226.12

Torx Screw K50 X 16

250000720

$1.39

Winch Wiring Harness | XT_XTP

710006653

$106.12

Elastic Stop Nut M6

232561434

$1.55

Wiring Harness Support

710006649

$22.28

Screw PT Type K-50 X 16

250000959

$1.74

Torx Screw K50 X 16

250000720

$1.39

Tuflok Plastic Rivet

293150230

$1.21

Panel Nut M6 X 1.0

250100198

$1.73

Washer M6

250200029

$1.83

Torx Screw M6 X 20

250000712

$1.74

Torx Screw K50 X 16

250000720

$1.39

Compact Multifonction Gauge | Package DPS

710006739

$355.35

LH Beam | Includes 700 to 700a

710008316

$189.20

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

RH Beam | Includes 710 to 710a

710008317

$189.20

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Handle

572106600

$9.31

Hex. Screw K40 X 45

250000718

$1.74

Spring

517168600

$6.91

Flat Washer 4 mm, Stainless

234042600

$0.92

Deep Black, LH Front Headlight Trim

710008973

$19.20

Torx Screw K50 X 16

250000720

$1.39

Deep Black, RH Front Headlight Trim

710008974

$19.20

Electric Winch | Includes 800 to 800a

710006993

$234.99

Socket Head Screw M8 X 30

205083044

$0.92

Lock Washer 8 mm

234181401

$0.89

Winch Hook Kit

705014949

$27.66

Winch Hook Kit

705014949

$27.66

Winch Hook Kit

705014949

$27.66

Stopper

710007028

$10.18

Fairlead Roller

710007082

$59.97

Socket Screw M10 x 30 | XT

205003044

$2.61

Hex. Flange Elastic Nut M10

233201414

$1.26

Solenoid

710006991

$59.97

Elastic Stop Nut M6, Brass

232561200

$3.51

Torx Screw K50 X 16

250000720

$1.39

Power Bar

710004772

$11.98

Copper Busbar

710006401

$11.98

Power Bar

710004873

$11.98

Circuit Breaker 50 Amp

710007039

$18.43

Hex. Flange Nut M5

250100071

$1.77

Lock Washer Helical M6

234161601

$0.92

12V Power Outlet

710005374

$27.27

USB Outlet

219400510

$40.92
