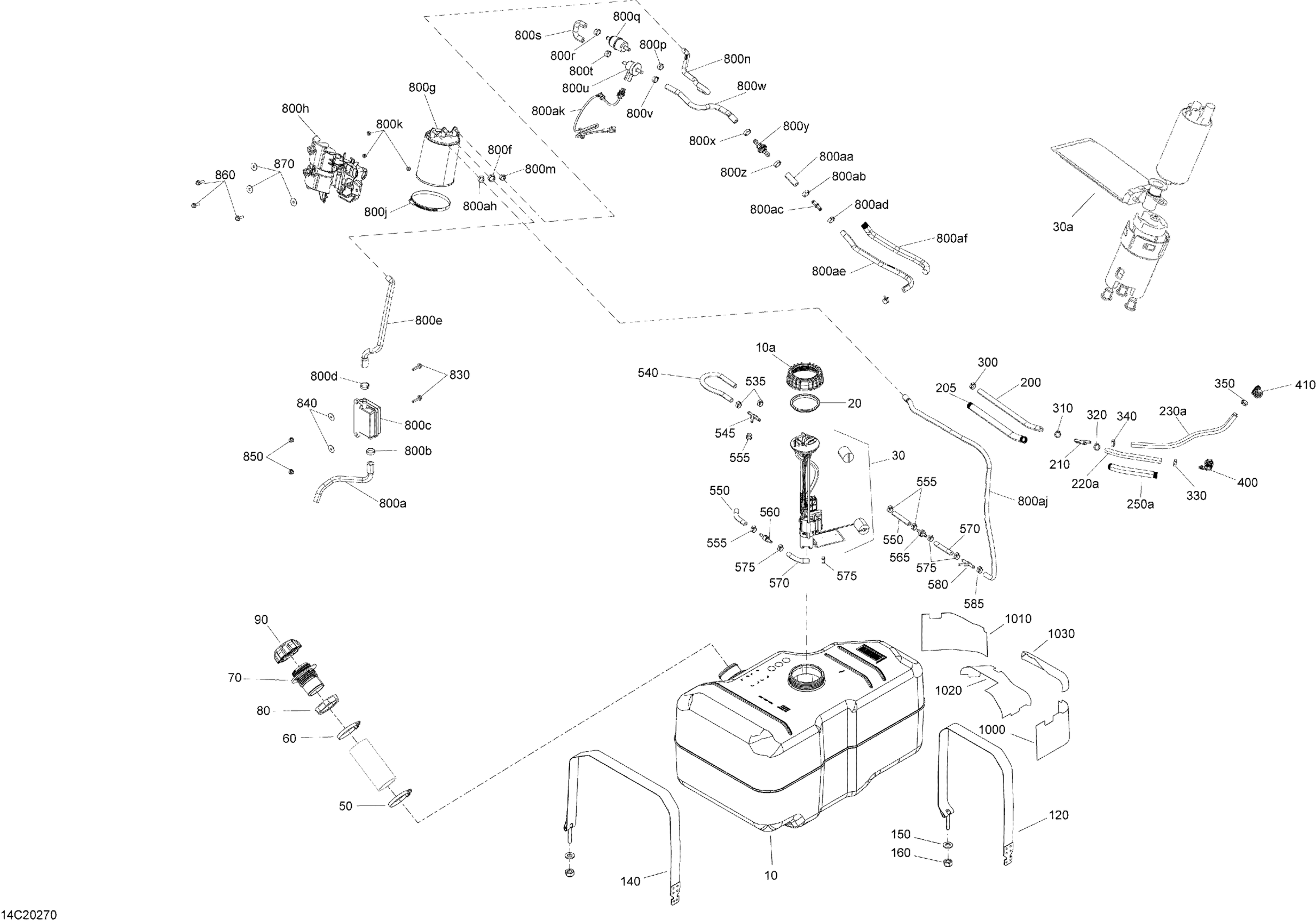

Can-Am Defender MAX HD8 - 2020 Engine - Fuel - Evap Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$253.82

10a

Fuel Pump Module Nut

709000328

$12.82

20

Seal

709000208

$12.54

30

Fuel Pump | Includes 30 to 30a

709001189

$313.49

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.82

50

Norma Clamp

293650081

$9.87

60

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

709000868

$32.28

120

Retaining Strap

709001291

$36.89

140

Retaining Strap

709001141

$36.89

150

Flat Washer 8 mm

234081410

$0.69

160

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

Was 709000163 Fuel Line

219704440

$108.43

205

Tubing 16 Mm 1000Mm Long

219704408

$6.23

210

Y-Fitting, 5/16''

293710136

$6.45

220a

Was 709000163 Fuel Line

219704440

$108.43

230a

Was 709000163 Fuel Line

219704440

$108.43

250a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Attach 90°

275500700

$12.61

410

Quick Attach 90°

275500700

$12.61

535

Oetiker Clamp

293650042

$1.40

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$8.19

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

800a

Formed Hose | EVAP Models

709000849

$16.89

800b

Oetiker Clamp

293650186

$3.33

800c

Air Filter

709000524

$46.12

800d

Oetiker Clamp

293650186

$3.33

800e

Formed Hose

709000850

$14.75

800f

Crimp Clamp

293650053

$2.42

800g

Charcoal Canister This part replaces 709001294.

709001673

$83.05

800h

Canister Support | EVAP Models

709000851

$4.60

800j

Tridon Clamp

293650054

$7.51

800k

Hex. Elastic Stop Nut M6

232561600

$0.92

800m

Oetiker Clamp

293650042

$1.40

800n

Formed Hose

709000853

$15.22

800p

Oetiker Clamp

293650046

$2.33

800q

Fuel Filter

513034047

$23.05

800r

Crimp Clamp, 15.3-706R

293650047

$2.64

800s

Formed Hose

709000857

$15.22

800t

Crimp Clamp, 15.3-706R

293650047

$2.64

800u

Bleed Valve

709000443

$69.20

800v

Crimp Clamp, 15.3-706R

293650047

$2.64

800w

Formed Hose

709000937

$15.35

800x

Crimp Clamp

293650053

$2.42

800y

Check Valve

275500941

$27.66

800z

Crimp Clamp

293650053

$2.42

800aa

Hose

709000882

$15.35

800ab

Crimp Clamp

293650053

$2.42

800ac

Flow Reducer

709000933

$4.60

800ad

Crimp Clamp, 15.3-706R

293650047

$2.64

800ae

Formed Hose

709000855

$17.66

800af

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800ah

Oetiker Clamp

293650046

$2.33

800aj

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800ak

Purge Valve Cable

710005718

$18.43

830

Hex. Flange Screw M6 X 25

207662554

$1.48

840

Flat Washer M6.6 X 22

250200162

$1.91

850

Hex. Flange Elastic Nut M6

233261494

$1.26

860

Hex. Flange Screw M6 X 20

207662054

$0.83

870

Flat Washer M6.6 X 22

250200162

$1.91

1000

Heat Shield

707002670

$32.28

1010

Heat Shield

707002671

$32.28

1020

Heat Shield

707002673

$32.28

1030

Heat Shield

707002719

$32.28
