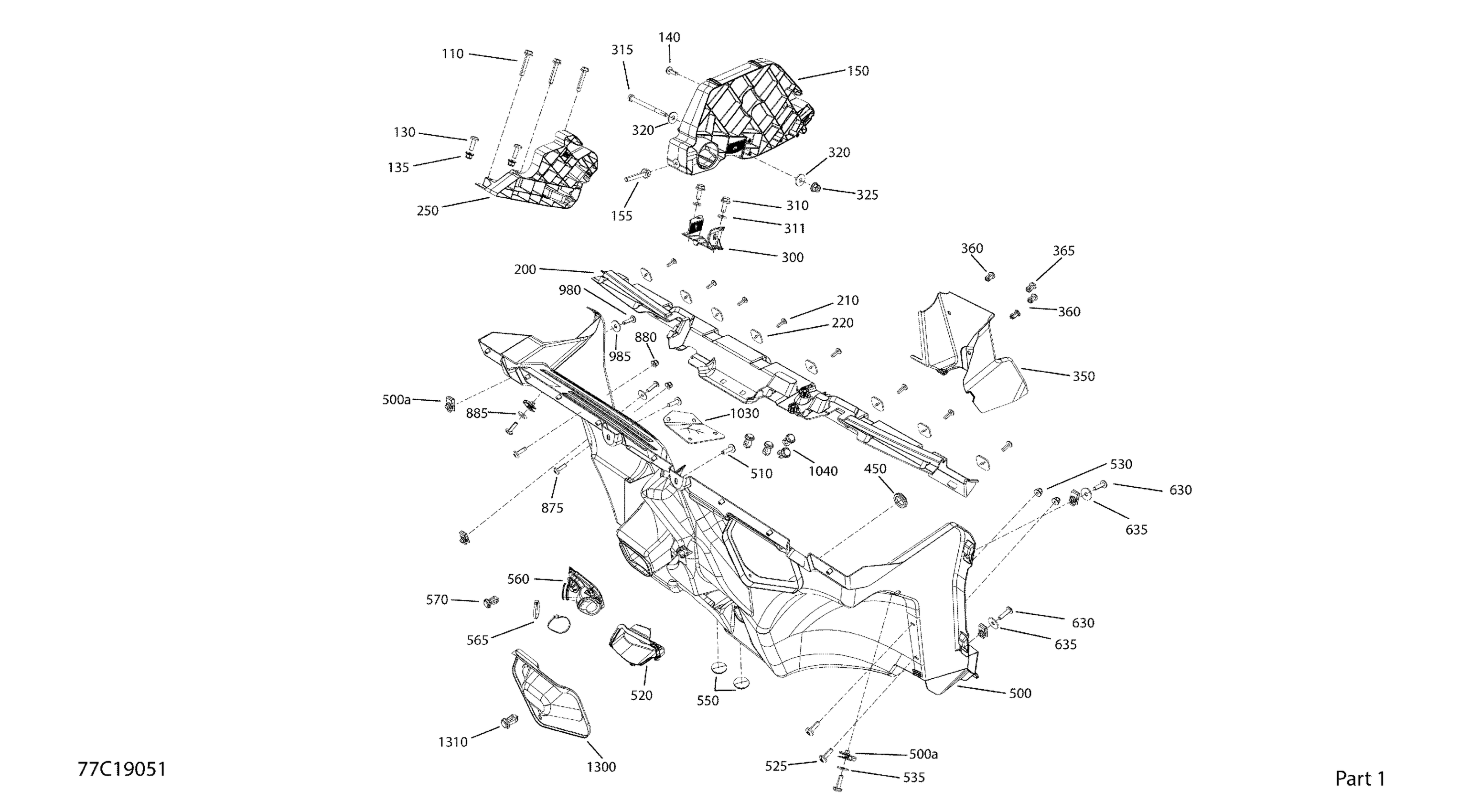

Can-Am Defender MAX HD10 - XMR - 2019 Cab Interior Defender & Traxter MAX - Lower front Section Diagram

Description

Price

100

Dashboard Upper Kit

715006522

$172.36

110

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

130

Torx Screw M6 X 20

250000712

$2.00

135

Hex. Flange Elastic Nut M6

233261494

$1.45

140

Torx Screw K50 X 16

250000720

$1.60

150

Dash Support

707900249

$58.93

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

200

Upper Front Deflector

707900296

$49.22

210

Torx Screw K50 X 16

250000720

$1.60

220

Support Plate

705003841

$0.91

250

RH Support

707900367

$34.30

300

Plier

707900940

$5.22

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

311

Flat Washer 6 mm

234061410

$1.19

315

Hex. Screw M6 X 80

207068044

$3.90

320

Stainless Steel Flat Washer

234062670

$2.00

325

Hex. Flange Elastic Nut M6

233261494

$1.45

350

Front Bulkhead Cover

707900289

$41.01

360

Tuflok Plastic Rivet

293150230

$1.39

365

Tuflok Plastic Rivet

293150230

$1.39

450

Rubber Cover

293250242

$5.18

500

Front Bulkhead

707900430

$255.94

500a

Panel Nut M6 X 1.0

250100198

$1.99

510

Torx Screw M6 X 20

250000722

$1.54

520

DPS Cover

707900408

$15.64

525

Torx Screw M6 X 20

250000712

$2.00

530

Hex. Flange Elastic Nut M6

233261494

$1.45

535

Stainless Steel Flat Washer

234062670

$2.00

550

Bumber Cap | Except Cab Package

291002744

$11.72

560

RH Rubber Cover

707900390

$15.64

565

Tie Wrap 368 mm

293750008

$0.97

570

Tuflok Plastic Rivet

293150230

$1.39

630

Torx Truss Screw M6 X 25

250000807

$2.00

635

Flat Washer M6.6 X 22

250200162

$2.19

875

Torx Screw M6 X 20

250000712

$2.00

880

Hex. Flange Elastic Nut M6

233261494

$1.45

885

Stainless Steel Flat Washer

234062670

$2.00

980

Torx Truss Screw M6 X 25

250000807

$2.00

985

Flat Washer M6.6 X 22

250200162

$2.19

1030

Steering Column Deflector | Except Package STD, Except Base

707900645

$16.39

1040

Tuflok Plastic Rivet

293150230

$1.39

1300

Exterior Cover

707900389

$10.67

1310

Tuflok Plastic Rivet

293150230

$1.39
