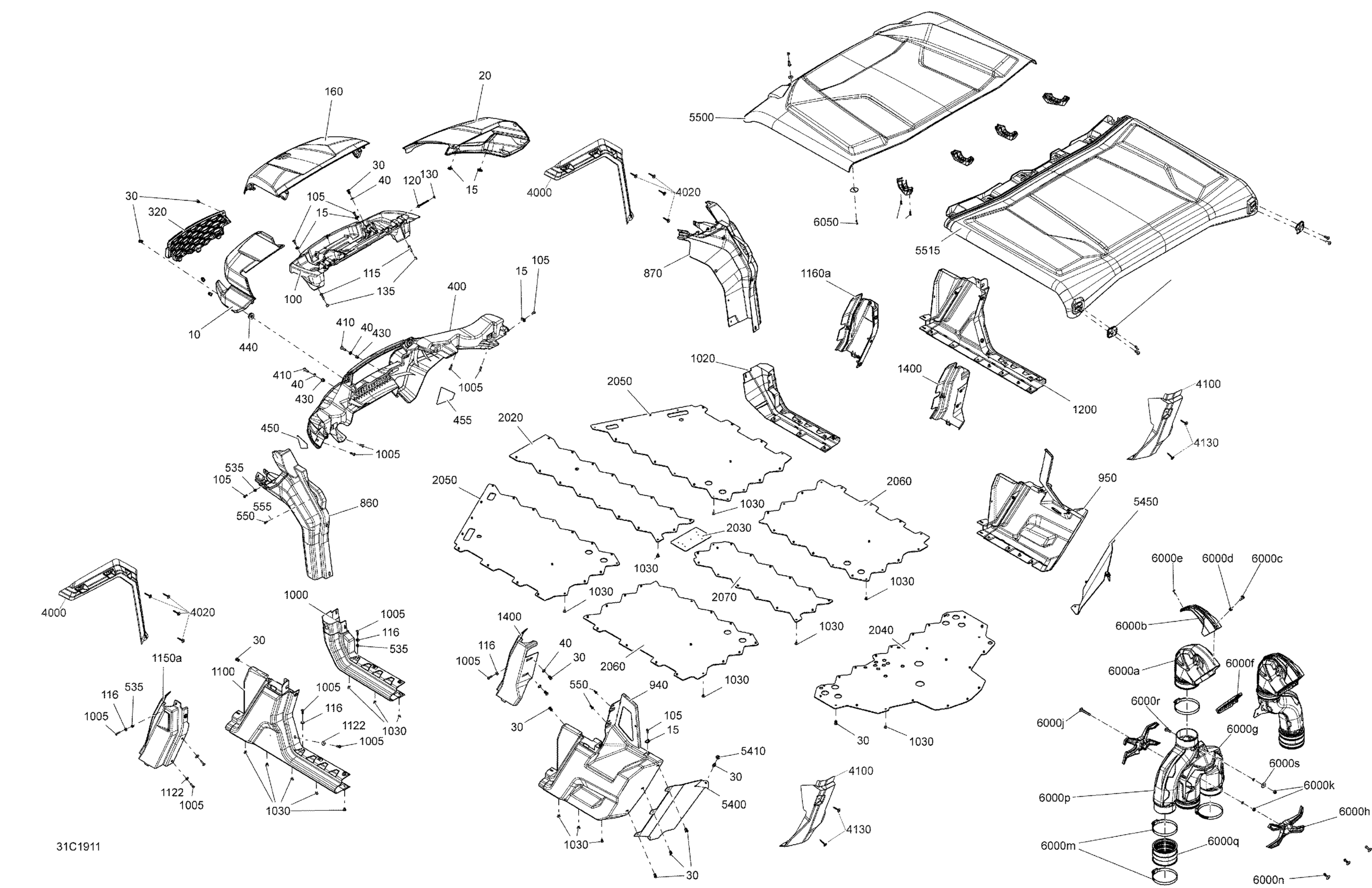

Can-Am Defender MAX HD10 - XMR - 2019 Body - Sunburst Yellow Diagram

#

Description
Price

10

Sunburst Yellow, Front LH Fender

705012296

$184.30

15

Panel Nut M6 X 1.0

250100198

$1.99

20

Sunburst Yellow, Front RH Fender

705012297

$184.30

25

Panel Nut M6 X 1.0

250100198

$1.99

30

Tuflok Plastic Rivet

293150230

$1.39

40

Washer

503192494

$3.01

100

Service Center

705011391

$58.18

105

Torx Screw M6 X 20

250000722

$1.54

110

Panel Nut M6 X 1.0

250100198

$1.99

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

116

Stainless Steel Flat Washer

234062670

$2.00

120

Hex. Flange Screw M6 X 75

207667554

$4.15

130

Push Nut

732610072

$1.97

135

Bushing

293900125

$2.69

160

Carbon Black, Removable Hood

705012300

$346.24

320

Grid Front Fascia

705009364

$25.34

330

Tuflok Plastic Rivet

293150230

$1.39

400

Front Facia

705011392

$226.84

410

Torx Screw M8 X 30

250000886

$2.00

420

Washer

503192494

$3.01

430

Hex. Flange Elastic Nut M8

233281414

$1.31

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$10.82

455

RH Front Reflector

704905073

$10.82

510

Torx Screw M6 X 20

250000722

$1.54

520

Panel Nut M6 X 1.0

250100198

$1.99

525

Torx Screw M6 X 20

250000722

$1.54

530

Stainless Steel Flat Washer

234062670

$2.00

550

Torx Screw K50 X 16

250000720

$1.60

555

Flat Washer M5

234051670

$2.00

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

935

Torx Screw K50 X 16

250000720

$1.60

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$83.55

945

Tuflok Plastic Rivet

293150230

$1.39

950

RH Rear Side Panel

705012705

$99.97

955

Tuflok Plastic Rivet

293150230

$1.39

960

Torx Screw M6 X 20

250000722

$1.54

970

Panel Nut M6 X 1.0

250100198

$1.99

975

Tuflok Plastic Rivet

293150230

$1.39

1000

Deep Black, LH Central Panel

705019037

$64.15

1005

Torx Truss Screw M6 X 25

250000807

$2.00

1006

Stainless Steel Flat Washer

234062670

$2.00

1020

Deep Black, RH Central Panel

705019038

$67.13

1025

Torx Truss Screw M6 X 25

250000807

$2.00

1026

Stainless Steel Flat Washer

234062670

$2.00

1030

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705013112

$99.22

1105

Torx Truss Screw M6 X 25

250000807

$2.00

1115

Tuflok Plastic Rivet

293150230

$1.39

1120

Torx Truss Screw M6 X 25

250000807

$2.00

1122

Flat Washer M6.6 X 22

250200162

$2.19

1125

Stainless Steel Flat Washer

234062670

$2.00

1150a

LH Middle Cage Cover

705010601

$35.04

1155

Flat Washer M6.6 X 22

250200162

$2.19

1156

Torx Truss Screw M6 X 25

250000807

$2.00

1160a

RH Middle Cage Cover

705010602

$35.04

1165

Flat Washer M6.6 X 22

250200162

$2.19

1166

Torx Truss Screw M6 X 25

250000807

$2.00

1167

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1200

RH Middle Side Panel

705013661

$99.22

1205

Torx Truss Screw M6 X 25

250000807

$2.00

1215

Tuflok Plastic Rivet

293150230

$1.39

1220

Torx Truss Screw M6 X 25

250000807

$2.00

1222

Flat Washer M6.6 X 22

250200162

$2.19

1225

Stainless Steel Flat Washer

234062670

$2.00

1300

LH Rear Cage Cover Kit

715003564

$73.85

1330

Tuflok Plastic Rivet

293150230

$1.39

1335

Washer

503192494

$3.01

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

1430

Tuflok Plastic Rivet

293150230

$1.39

1435

Washer

503192494

$3.01

1880

Tuflok Plastic Rivet

293150230

$1.39

2020

Central Skid Plate

705009151

$52.96

2025

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2030

Connection Plate

705010884

$28.33

2040

Rear Skid Plate

705011292

$82.06

2045

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2050

Lateral Skid Plate

705010422

$80.57

2055

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2060

Rear Side Skid Plate

705010587

$80.57

2065

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2070

Rear Central Skid Plate

705010588

$57.43

2075

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2100

Tuflok Plastic Rivet

293150230

$1.39

4000

LH Front Fender Flare

705011518

$22.36

4010

RH Front Fender Flare

705011519

$22.36

4020

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

4100

LH Central Fender Flare

705011522

$11.51

4110

RH Center Fender Flare

705011523

$13.36

4120

Torx Screw M6 X 25

250000758

$2.00

4125

Stainless Steel Flat Washer

234062670

$2.00

4130

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

4140

Hex. Flange Elastic Nut M6

233261494

$1.45

5400

LH Rear Deflector

705010426

$48.48

5410

Flat Washer 8 mm, Nylon

292001663

$1.36

5450

RH Rear Deflector

705010427

$48.48

5460

Flat Washer 8 mm, Nylon

292001663

$1.36

6000a

Air Inlet

706600236

$49.22

6000b

Cap

707002086

$19.37

6000c

Torx Screw M5 X 20

250000792

$2.00

6000d

Elastic Flange Nut M5

233251494

$2.00

6000e

Torx Truss Screw K40 X 12

250000577

$2.00

6000f

Grate

706600247

$18.63

6000g

CVT Outlet

706600205

$38.78

6000h

Trim

705012556

$11.49

6000j

Torx Screw M6 X 45

250000647

$5.46

6000k

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

6000m

Clamp

293650272

$18.63

6000n

Pop Rivet 3/16”

293150101

$2.00

6000p

Intake Tube

706600277

$63.40

6000q

Flexible Joint

706600278

$26.09

6000r

Torx Screw M6 X 20

250000712

$2.00

6000s

Flat washer M6

250200164

$0.96

6010

Hex. Nut M8

232081414

$0.69

6015

Flat Washer 8 mm

234082410

$1.27

6020

Torx Truss M8 X 25

250000874

$2.00

6025

Torx Screw Truss Head K50X20 T20

250000760

$2.00

6030

Flat Washer M6.6 X 22

250200162

$2.19

6035

Torx Truss M8 X 25

250000874

$2.00

6040

Roof Anchor

705800131

$6.90

6055

Roof Cap

705800058

$2.96

6060

Torx Truss Screw M6 X 25

250000807

$2.00

6065

Torx Truss Screw M6 X 25

250000807

$2.00

6070

Torx Truss Screw M6 X 25

250000807

$2.00

6075

Stainless Steel Flat Washer

234062670

$2.00

6080

Torx Truss Screw M6 X 25

250000807

$2.00

6085

Stainless Steel Flat Washer

234062670

$2.00
