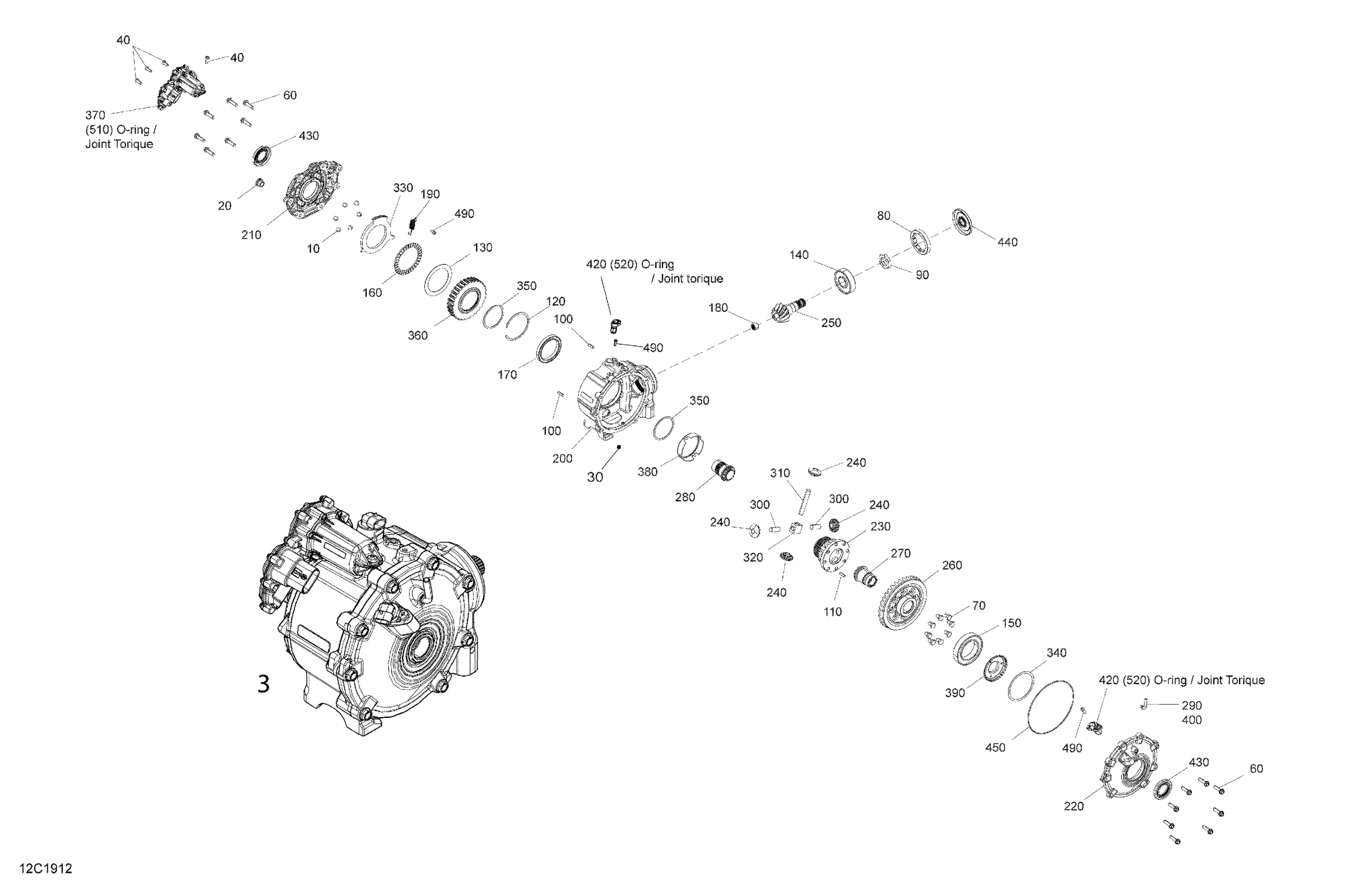

Can-Am Defender MAX HD10 - XMR - 2019 Front Drive - Differential Parts Diagram

#

Description
Price

3

Front Differential Ass'y | Includes 30 to 30vv

705402767

Unavailable

10

Ball

715900564

$5.04

20

Fill Level Plug

705501889

$18.63

30

Fill Level Plug M10

715900563

$25.34

40

Torx Screw M6 X 16

705402845

$9.25

60

Bolt

705501886

$6.30

70

Hex Screw 3/8 X 0.500

715900561

$12.64

80

Nut M75 X 1.5

705401819

$22.36

90

Nut M27 X 1.5

705401820

$19.37

100

Dowel Pin

715900559

$6.16

110

Dowell Pin

715900618

$17.88

120

Retainin Ring

715900558

$23.85

130

Thrust Washer

715900557

$26.84

140

Ball Bearing

705401821

$29.82

150

Ball Bearing 60 X 95 X 18

715900556

$40.27

160

Needle Bearing

715900555

$17.13

170

Ball Bearing 65 X 85 X 10

715900554

$87.28

180

Ball Bearing | After May 30, 2014

705402848

$44.75

190

Spring

715900553

$26.84

200

Housing

715900674

$127.58

210

RH Cover

715900632

$129.82

220

LH Cover

715900631

$121.61

230

Housing

715900617

$112.66

240

Pinion 10T

715900548

$82.06

250

Pinion 10 th.

705401933

$173.85

260

Gear 36T

715900676

$364.15

270

Gear 14T

715900546

$79.82

280

Gear 14T

715900545

$79.82

290

Vent Valve

705401935

$13.43

300

Pinion Pin 0.5 X 1.250

715900543

$17.88

310

Pinion Pin 0.5 X 3.000

715900542

$17.88

320

Coupler, Pin

715900541

$60.42

330

Ramp Ball

715900540

$71.61

340

Shim 74.50 X 66.00

715900539

$160.42

350

Shim 3.735 X 3.300

715900538

$246.99

360

Clutch Pack

715900537

$215.64

370

Actuator Ass'y

715900640

$429.82

380

Cross Pin Retainer

715900535

$26.09

390

Tone Ring 30T

715900534

$32.06

400

Vent Cap 5/16

715900533

$6.30

420

Speed Sensor

715900532

$92.51

430

Oil Seal

715900531

$24.60

440

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$17.13

450

O-Ring

715900530

$10.94

490

Torx Screw M6 X 16

705402845

$9.25

510

O-Ring

715900601

$10.24

520

O-Ring

715900600

$10.94
