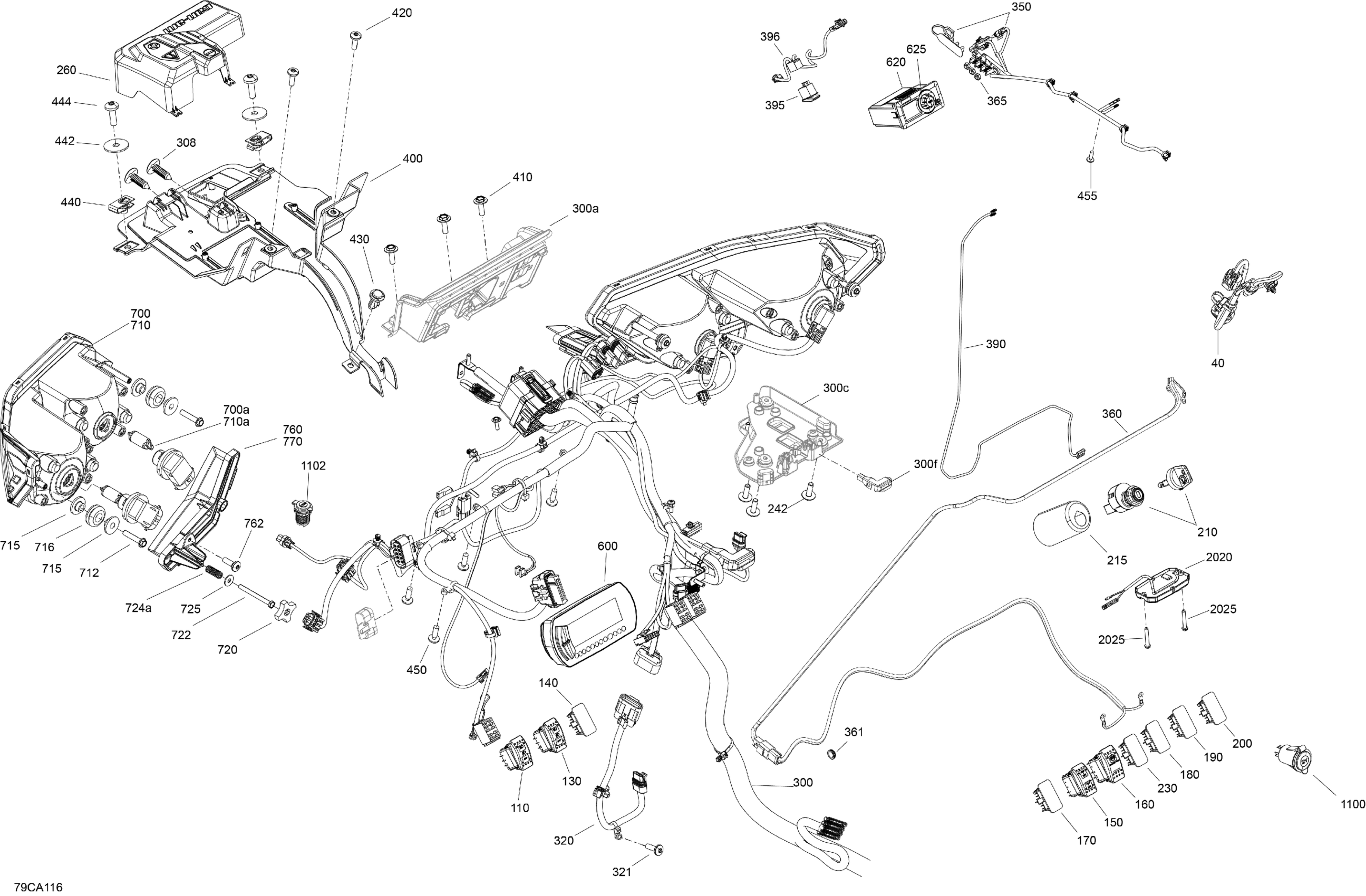

Can-Am Defender HD10 - LTD CAB - 2021 Electric - Front System Diagram

Adaptor

710007305

$27.66

Light Switch

710004492

$46.12

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch 2X4

710005489

$32.28

Differential Lock Switch

710005470

$46.12

Multifonction Switch

710006650

$87.66

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Inter Allumage *Ignition

710007870

$55.35

Key Switch Protector

710005739

$2.69

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Screw PT Type K-50 X 16

250000959

$1.74

Junction Block Cover

710006707

$6.45

Main Wiring Harness | Included 300 to 300c

710007148

$1,315.35

Fusebox Support

710006640

$7.69

Connector Support

710006706

$5.00

Relay Decal

710007128

$13.18

Temperature Sensor

710007152

$15.35

Protector Cap

710007153

$10.14

Black, Dart

293730006

$0.81

Throttle Pedal Harness

710006837

$226.12

Torx Screw K50 X 16

250000720

$1.39

Window/Wiper Harness

710004462

$84.99

Roof Wiring Harness | Pro International

710007047

$55.35

Boot

710002743

$3.98

Elastic Stop Nut M6, Brass

232561200

$3.51

Wiper Harness

710004466

$32.28

Wiper Switch

710004941

$46.12

Wiper Harness

710004942

$41.51

Wiring Harness Support

710006649

$22.28

Screw PT Type K-50 X 16

250000959

$1.74

Torx Screw K50 X 16

250000720

$1.39

Tuflok Plastic Rivet

293150230

$1.21

Panel Nut M6 X 1.0

250100198

$1.73

Washer M6

250200029

$1.83

Torx Screw M6 X 20

250000712

$1.74

Torx Screw K50 X 16

250000720

$1.39

Torx Screw K50 X 16

250000720

$1.39

Multifunction Gauge MID | Model XTP

710007409

$341.51

A/C Control Unit | Includes 620 to 620a

710009400

$636.89

Replacement Control Knob

715900906

$6.75

LH Beam | Includes 700 to 700a

710008316

$189.20

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

RH Beam | Includes 710 to 710a

710008317

$189.20

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Handle

572106600

$9.31

Hex. Screw K40 X 45

250000718

$1.74

Spring

517168600

$6.91

Flat Washer 4 mm, Stainless

234042600

$0.92

LH Auxiliary LED Headlight

710006374

$184.58

Screw PT Type K-50 X 16

250000959

$1.74

RH Auxiliary LED Headlight

710006375

$184.58

12V Power Outlet

710005374

$27.27

USB Outlet

219400510

$40.92

Dome Light

715002455

$104.99

Hex. Flange Screw K40 X 25

241142560

$2.17

Valve Ass'y

705800486

$286.12
