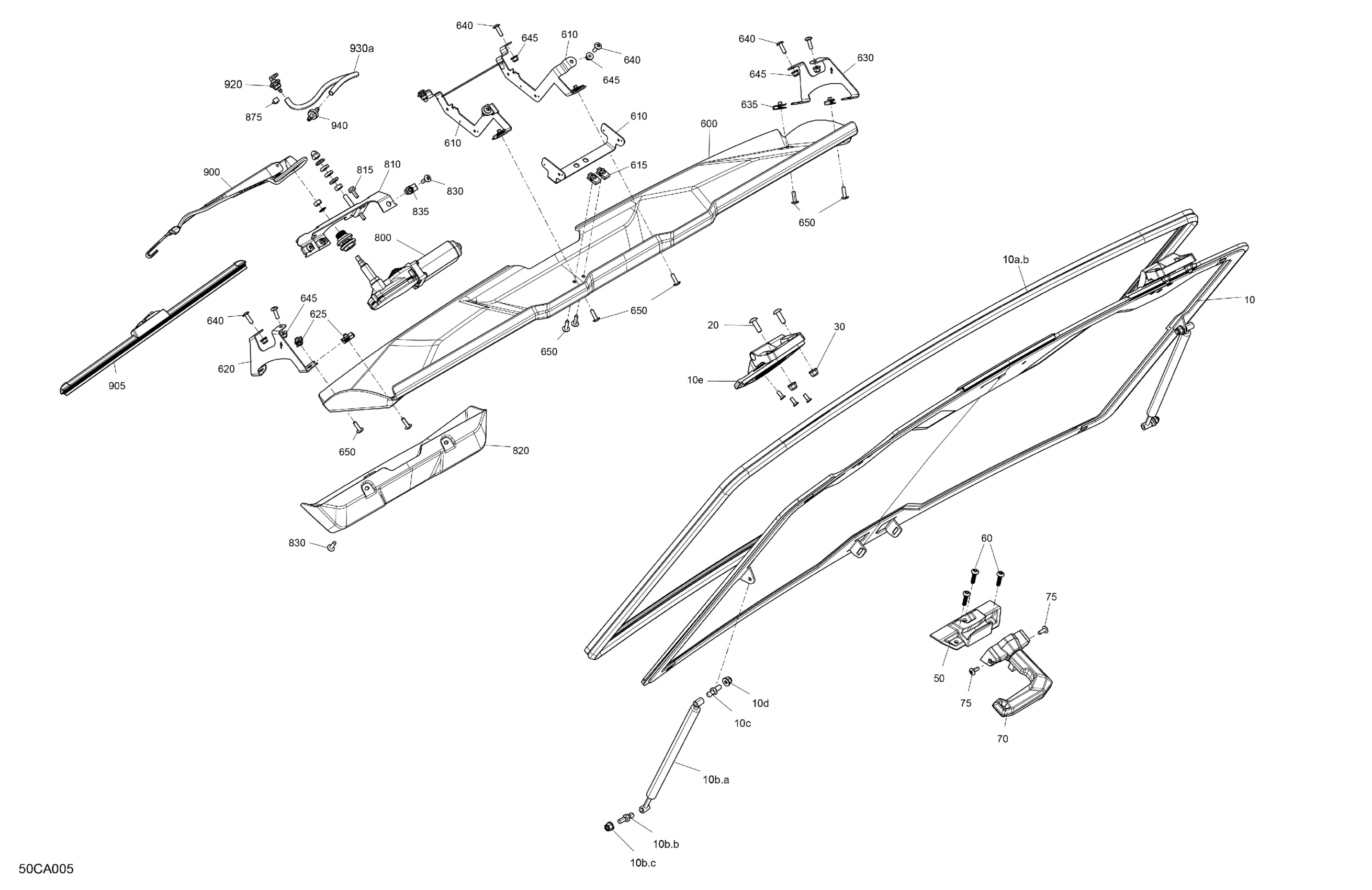

Can-Am Defender HD10 - LTD CAB - 2021 Body - Windshield Diagram

#

Description
Price

10

Windshield Ass'y | Includes 10 to 10f

715002942

$1,499.99

10a.b

Neoprene Seal

705800006

$194.99

10a.b

Was 293250240 Neoprene Seal

219704451

$60.49

10b.a

Shock

705800030

$104.99

10b.b

Ball Head Stud

250300039

$7.51

10b.c

Hex. Flange Elastic Nut M8

233281414

$1.47

10c

Ball Head Stud

250300039

$7.51

10d

Hex. Flange Elastic Nut M8

233281414

$1.47

10e

Windshield Hinges

705800082

$124.99

10

Windshield Ass'y | Includes 10 to 10f

715002942

$1,499.99

20

Torx Truss M8 X 25

250000874

$2.11

30

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Handle Anchor

705800008

$20.99

60

Screw Torx M6.81 X 30

250001007

$2.54

70

Mobile Handle Ass'y

705800085

$124.99

75

Torx Truss M8 X 16

250000881

$2.11

600

Radio Support Kit

715006524

$214.99

610

Support

705800060

$60.99

615

Panel Nut M6 X 1.0

250100198

$2.11

620

LH Support

705800108

$26.99

625

Panel Nut M6 X 1.0

250100198

$2.11

630

RH Support

705800109

$25.99

635

Panel Nut M6 X 1.0

250100198

$2.11

640

Torx Screw M6 X 20

250000722

$1.68

645

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

650

Torx Screw M6 X 20

250000722

$1.68

800

Wiper Motor

705010657

$379.99

810

Cover Support Ass'y

705800073

$85.99

815

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

820

Wiper Motor Trim

705800805

$71.99

830

Torx Screw M6 X 20

250000722

$1.68

835

Panel Nut M6 X 1.0

250100198

$2.11

875

Spring Clamp

414554800

$0.88

900

Wiper Arm

705010656

$80.99

905

Winshield Wiper

705011443

$42.99

920

90° Elbow Connector

705800103

$13.76

930a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

940

Check Valve

275500398

$10.99
