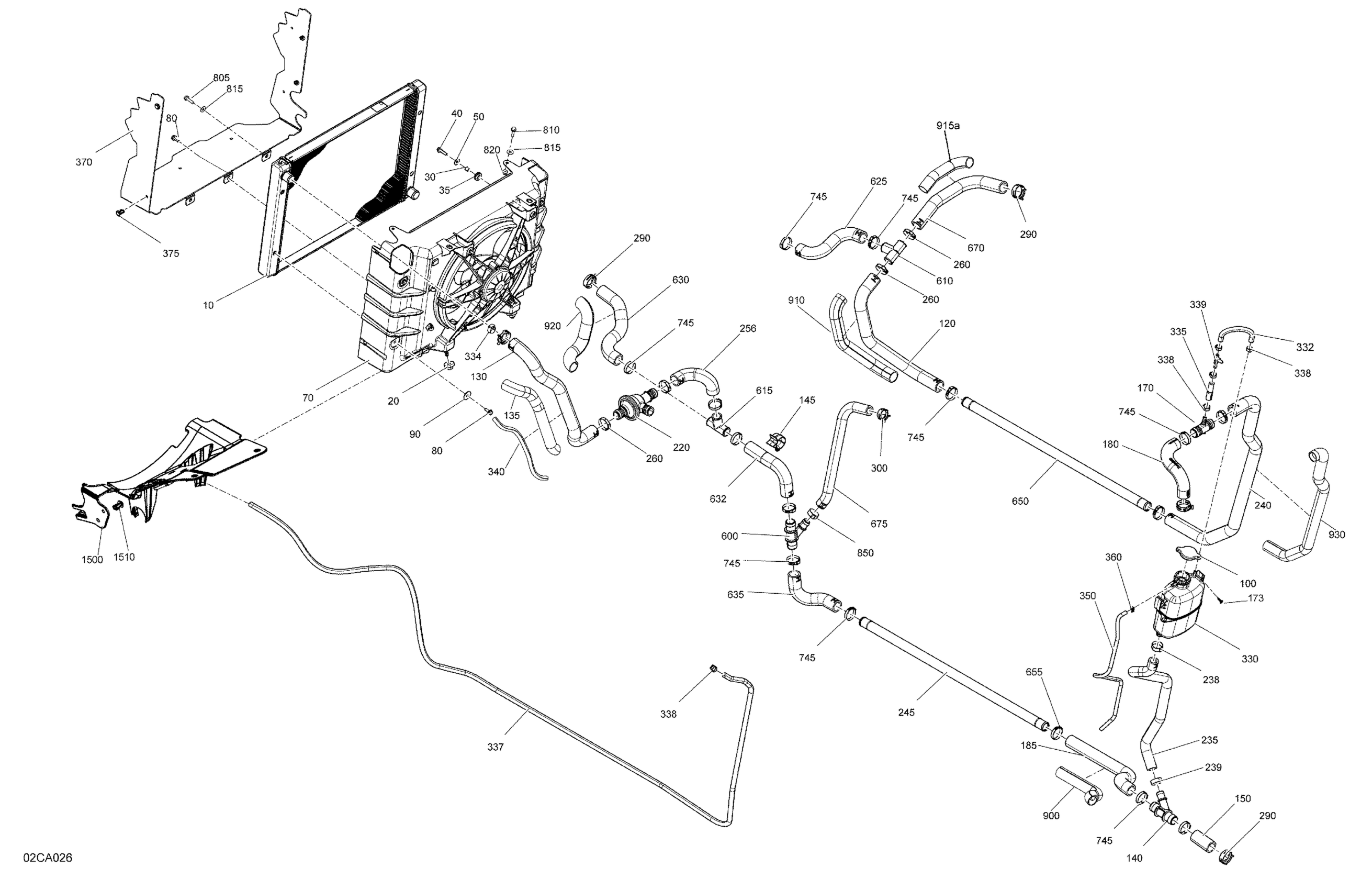

Can-Am Defender HD10 - LTD CAB - 2021 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200829

$269.99

20

Grommet

709200948

$8.89

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Cooling Fan Ass'y

709201287

$259.99

80

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

90

Washer M6

250200029

$2.50

100

Radiator Pressure Cap

709200207

$25.49

120

Hose

709200973

$14.31

130

Formed Radiator Hose IN

709201443

$16.40

135

Tubing 35 MM 1000MM Long

219704428

$10.99

140

Y Fitting

509001200

$5.50

145

Retainer

275500590

$9.69

150

Hose

709200299

$8.60

170

T-Fitting

509000510

$13.16

173

Torx Screw K50 X 16

250000720

$1.69

180

Hose Engine Out

709200915

$41.49

185

Hose

709200971

$41.49

220

Thermostat Housing

709200986

$96.49

235

Hose Coolant Tank Out

709201103

$38.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oetiker Gear Clamp

293650165

$5.39

240

Hose

709200969

$35.99

245

Heater Tubing

709200657

$19.49

256

Formed Thermostat Hose OUT

709201439

$16.40

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

300

Norma Spring Clamp

293650109

$4.12

330

Coolant Tank

709201323

$80.99

332

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Clamp

293650042

$3.09

335

Bleeding Hose

709200606

$20.99

337

Was 415129508 Bleeder Hose

219704416

$12.18

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

370

Front Radiator Deflector

705015970

$57.99

375

Tuflok Plastic Rivet

293150230

$1.47

600

Y Fitting

509001200

$5.50

610

T-Fitting

509000219

$15.89

615

T-Fitting

509000219

$15.89

625

Hose Thermostat In

709201031

$16.40

630

Formed Radiator Hose OUT

709201444

$11.63

632

Formed Radiator Hose OUT

709201437

$11.63

635

Hose

709200972

$14.31

650

Heater Tubing

709200657

$19.49

655

Gear Clamp

509000162

$7.29

670

Hose

709200976

$14.31

675

Hose

709200975

$14.31

745

Gear Clamp

509000162

$7.29

805

Hex. Flange Screw M6 X 25

207662544

$0.64

810

Hex. Flange Screw M6 X 25

207662544

$0.64

815

Flat Washer 6 mm

234062410

$0.77

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

850

Oetiker Gear Clamp

293650165

$5.39

900

Tubing 35 MM 1000MM Long

219704428

$10.99

900

Tubing 35 MM 1000MM Long

219704428

$10.99

910

Tubing 35 MM 1000MM Long

219704428

$10.99

915a

Tubing 35 MM 1000MM Long

219704428

$10.99

920

Tubing 35 MM 1000MM Long

219704428

$10.99

930

Tubing 35 MM 1000MM Long

219704428

$10.99

1050

Hose Retainer

293650218

$9.39

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.47
