Description

Price

10

LH Front Brake Caliper | LH Front

705601887

$360.49

10a

LH Brake Pads

715900379

$79.49

10c

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

20

RH Front Brake Caliper | RH Front

705601888

$370.99

20a

RH Brake Pads

715900380

$79.49

20c

Bleeding Screw

705601017

$6.35

20d

Cap Spring Kit

715900385

$17.59

30

Master Cylinder

705601863

$279.99

30a

Master Cylinder | Includes 30 to 30b

705601803

$379.99

30b

Oil Tank

705601020

$39.99

30c

Housing Oil Hose

705601866

$15.87

40

Front Caliper Hose | Includes 40 to 40a

705601754

$148.49

40a

Clamp

293650256

$5.49

45

Rear Caliper Hose | Includes 45 to 45a

705601757

$163.99

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682544

$1.35

95

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Open Clamp

515175507

$1.89

140

Pop Rivet 3/16"

390402200

$0.35

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Brake Switch

705601250

$59.49

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

170

LH Rear Brake Caliper | LH Rear

705601928

$259.49

170a

LH Brake Pads

715900381

$79.49

170b

Bleeding Screw

705601017

$6.35

170c

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | RH Rear

705601929

$280.99

180a

RH Brake Pads

715900382

$79.49

180b

Bleeding Screw

705601017

$6.35

180c

Cap Spring Kit

715900385

$17.59

200

Screw PT Type K-50 X 16

250000959

$2.11

210

Open Clamp

515175507

$1.89

220

Flat Washer

250200040

$1.90

230

Grommet

414036300

$2.79

250

Brake Pedal | Includes 250 to 250a

705601777

$57.99

260

Brake Pedal Spring

705600792

$9.10

300

O-Ring

293300144

$3.82

350

Inside Sleeve

705601373

$12.11

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11

2000

Pin Kit | Packages STD & PRO

715900384

$12.12

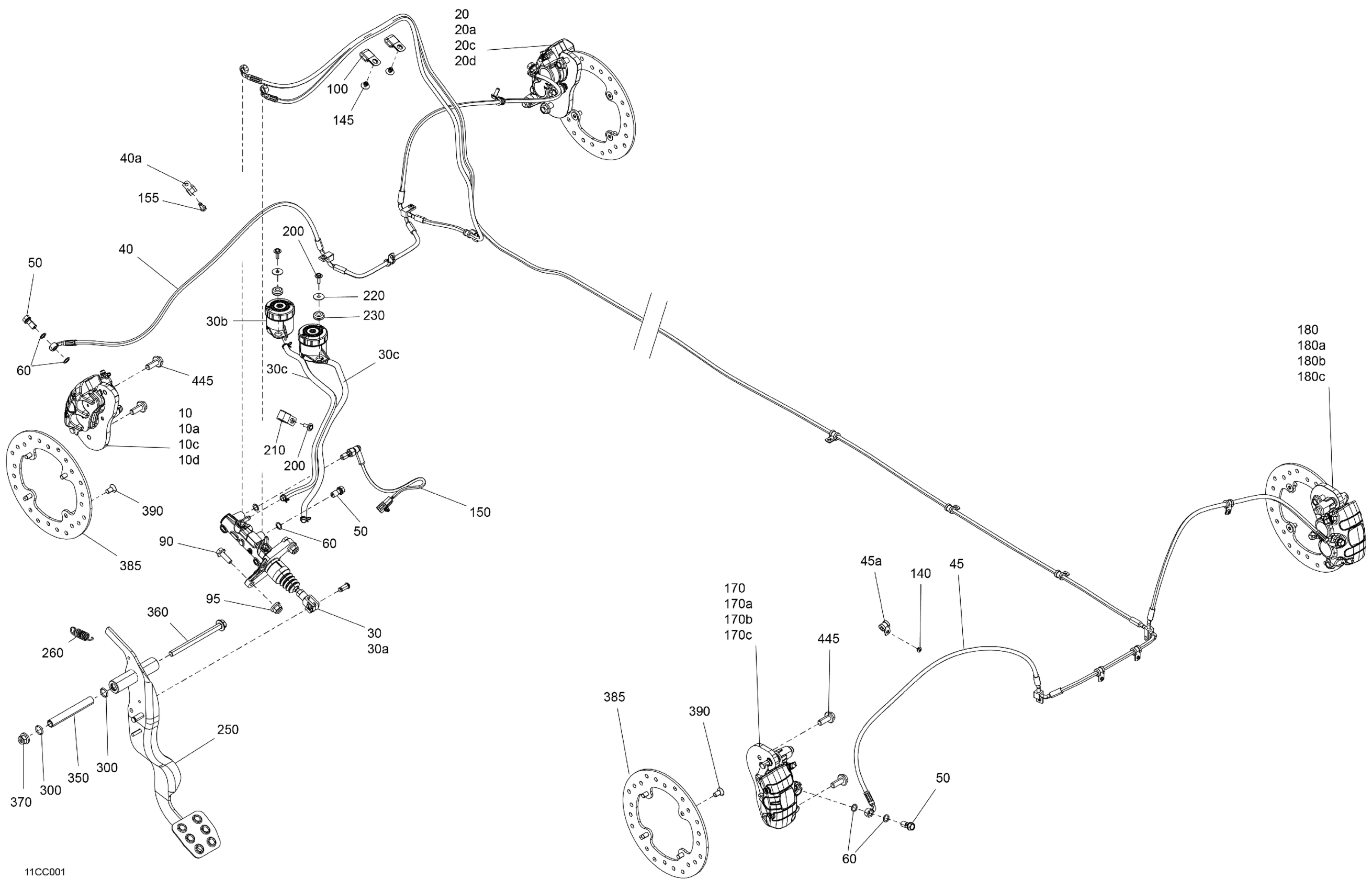

Can-Am 006 - Defender HD10 - DPS - International, 2023 03- Mechanic - Brake System Diagram

LH Front Brake Caliper | LH Front

LH Brake Pads

Bleeding Screw

Cap Spring Kit

RH Front Brake Caliper | RH Front

RH Brake Pads

Bleeding Screw

Cap Spring Kit

Master Cylinder

Master Cylinder | Includes 30 to 30b

Oil Tank

Housing Oil Hose

Front Caliper Hose | Includes 40 to 40a

Clamp

Rear Caliper Hose | Includes 45 to 45a

Clamp

Banjo Bolt (M10 x 1.25 thread)

Copper Washer

Hex. Flange Screw M8 X 25

Hex. Elastic Flange Nut M8

Open Clamp

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Brake Switch

Hex. Flange Screw M6 X 16, Scotch Grip

LH Rear Brake Caliper | LH Rear

LH Brake Pads

Bleeding Screw

Cap Spring Kit

RH Rear Brake Caliper | RH Rear

RH Brake Pads

Bleeding Screw

Cap Spring Kit

Screw PT Type K-50 X 16

Open Clamp

Flat Washer

Grommet

Brake Pedal | Includes 250 to 250a

Brake Pedal Spring

O-Ring

Inside Sleeve

Hex. Flange Screw, M10 X 130

Hex. Flange Elastic Nut M10

Brake Disc

Torx Screw M8 X 16, Scotch Grip

Hex. Flange Screw M10 X 25

Pin Kit | Packages STD & PRO
