Description

Price

30

Front Differential Ass'y | Includes 30 to 30bc

705403300

$1,693.49

30a

Ball

715900564

$6.50

30b

Fill Level Plug

705501889

$20.49

30c

Fill Level Plug M10

715900563

$27.49

30d

Torx Screw M6 X 16

705402845

$11.05

30f

Torx Screw M6 X 16

705402845

$11.05

30g

Bolt

705501886

$7.69

30h

Hex Screw 3/8 X 0.500

715900561

$13.76

30j

Nut M75 X 1.5

705401819

$23.99

30k

Nut M27 X 1.5

705401820

$20.99

30m

Thrust Washer 1,510 X 1,875 X 0,032

715900656

$28.99

30n

Dowel Pin

715900559

$6.67

30p

Dowel Pin 3 X 36

715900655

$29.99

30q

Dowell Pin

715900618

$21.99

30r

Retainin Ring

715900558

$26.99

30s

Thrust Washer

715900557

$29.49

30t

Ball Bearing

705401821

$31.99

30u

Ball Bearing 60 X 95 X 18

715900556

$43.49

30v

Needle Bearing

715900555

$19.99

30w

Ball Bearing 65 X 85 X 10

715900554

$94.49

30x

Needle Bearing

715900634

$38.99

30y

Spring

715900553

$29.99

30z

LH Cover

715900684

$149.99

30aa

RH Cover

715900683

$153.49

30ab

Housing

715900674

$144.99

30ac

Housing

715900713

$119.99

30ad

Pinion 10 T

715900635

$194.99

30af

Gear 36T

715900658

$449.99

30ag

Diff Pinion Gear 9T

715900714

$79.99

30ah

Gear Output 14T

715900715

$124.99

30aj

Gear Output 14T

715900716

$124.99

30ak

Vent Valve

705401935

$16.49

30am

Coupler, Pin

715900541

$65.49

30an

Ramp Ball

715900540

$77.49

30ap

Pin Diff Pinion 0.5 x 1.3125

715900711

$38.99

30aq

Pin Diff Pinion 0.5 X 3.125

715900712

$38.99

30ar

Shim 74.50 X 66.00

715900539

$179.99

30as

Shim 3.735 X 3.300

715900538

$274.99

30at

Clutch Pack

715900537

$239.99

30au

Actuator Ass'y

715900640

$509.99

30av

Tone Ring 30T

715900534

$35.99

30aw

Vent Cap 5/16

715900533

$7.69

30ax

Speed Sensor

715900532

$104.99

30ay

Oil Seal

715900531

$26.49

30az

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

30ba

O-Ring

715900530

$13.16

30bb

O-Ring

715900601

$12.49

30bc

O-Ring

715900600

$13.16

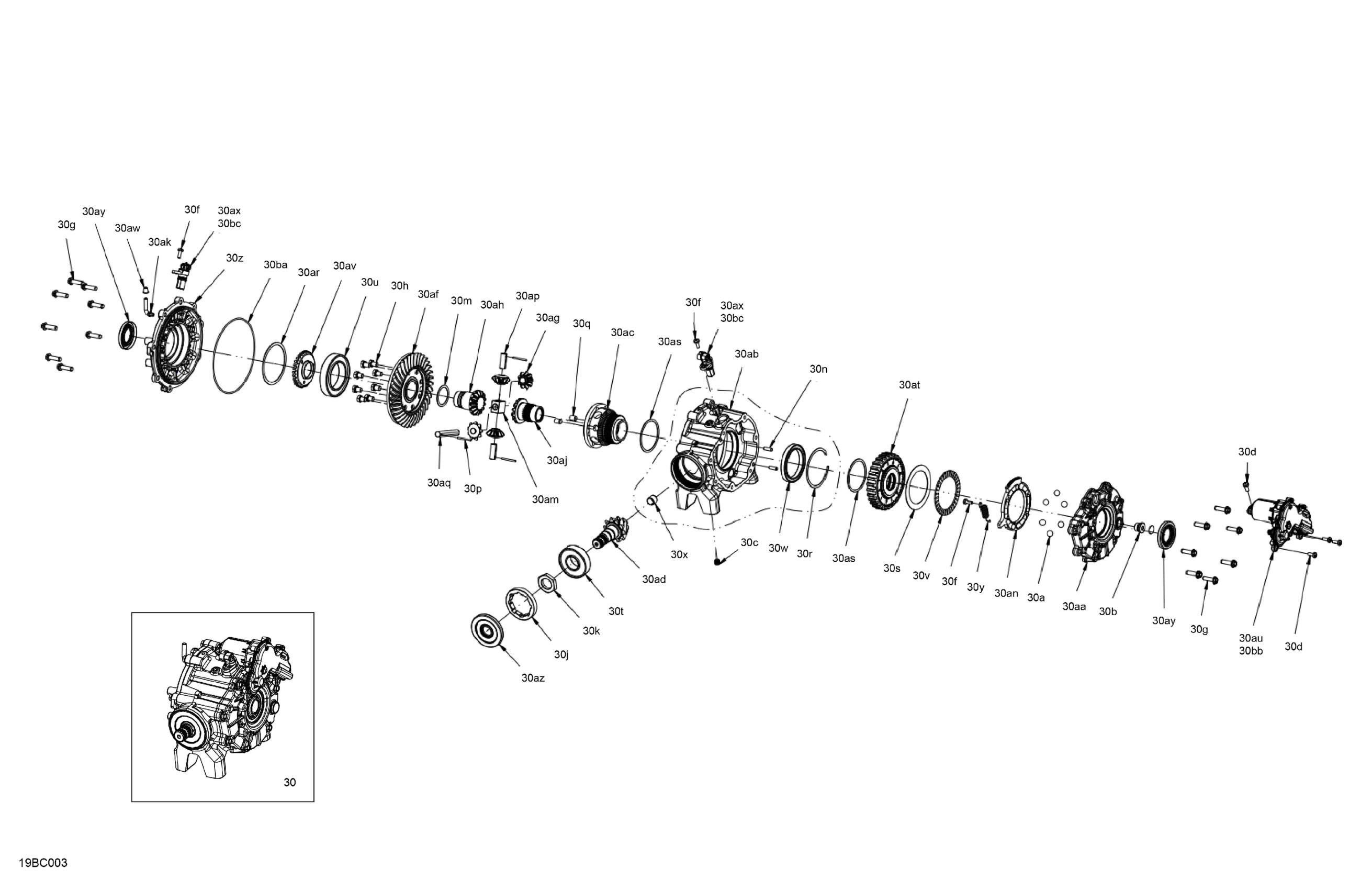

Can-Am Commander 1000R EFI - XMR - 2023 Drive - Front - Differential Parts Diagram

Front Differential Ass'y | Includes 30 to 30bc

Ball

Fill Level Plug

Fill Level Plug M10

Torx Screw M6 X 16

Torx Screw M6 X 16

Bolt

Hex Screw 3/8 X 0.500

Nut M75 X 1.5

Nut M27 X 1.5

Thrust Washer 1,510 X 1,875 X 0,032

Dowel Pin

Dowel Pin 3 X 36

Dowell Pin

Retainin Ring

Thrust Washer

Ball Bearing

Ball Bearing 60 X 95 X 18

Needle Bearing

Ball Bearing 65 X 85 X 10

Needle Bearing

Spring

LH Cover

RH Cover

Housing

Housing

Pinion 10 T

Gear 36T

Diff Pinion Gear 9T

Gear Output 14T

Gear Output 14T

Vent Valve

Coupler, Pin

Ramp Ball

Pin Diff Pinion 0.5 x 1.3125

Pin Diff Pinion 0.5 X 3.125

Shim 74.50 X 66.00

Shim 3.735 X 3.300

Clutch Pack

Actuator Ass'y

Tone Ring 30T

Vent Cap 5/16

Speed Sensor

Oil Seal

Oil Seal, Triple Lip 25 X 79 X 8

O-Ring

O-Ring

O-Ring
