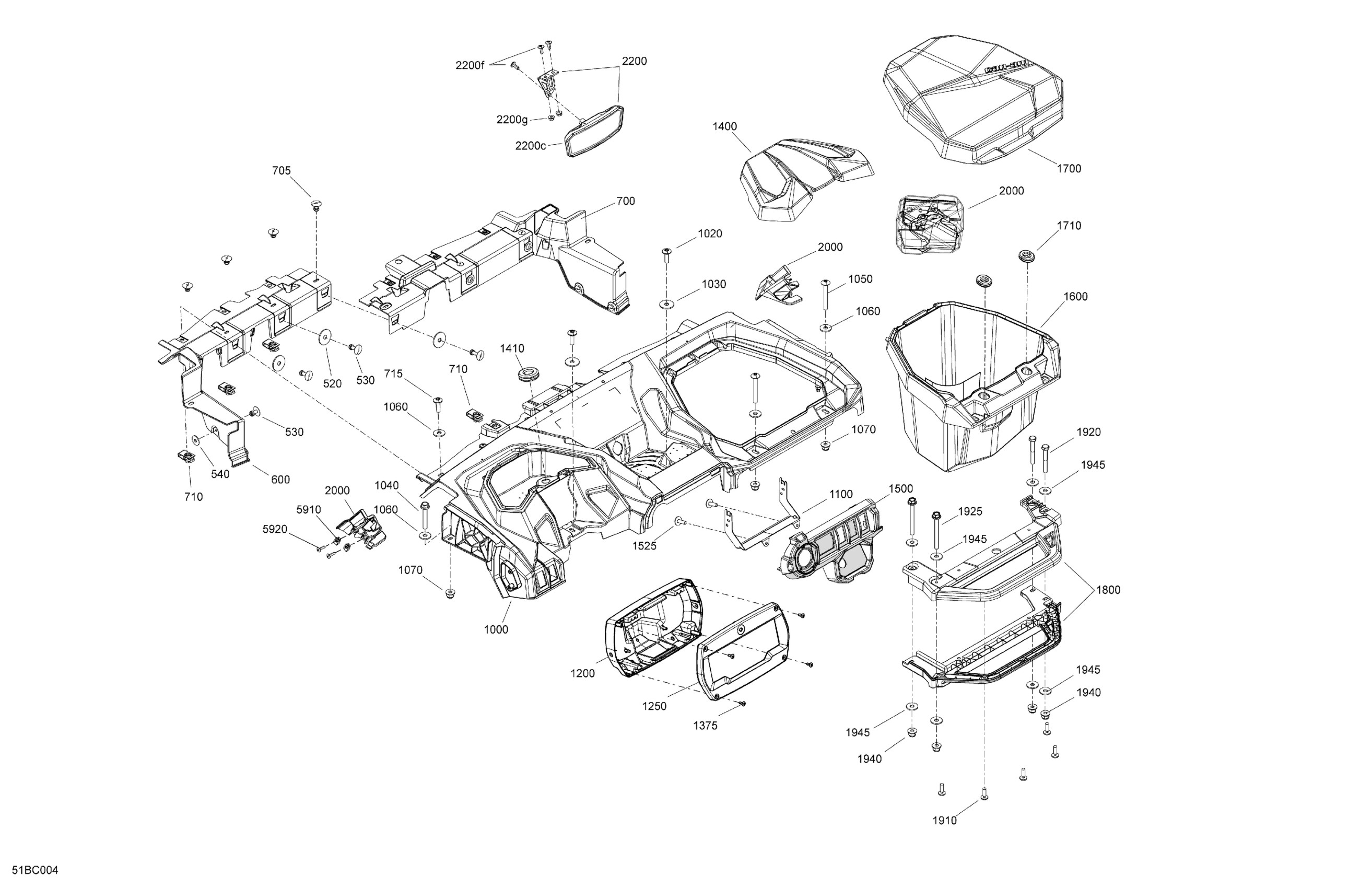

Can-Am Commander 1000R EFI - XTP - 2023 Cab Interior - Dashboard Diagram

#

Description
Price

30a

Panel Nut M5 X 0.8

250000958

$3.48

30b

Torx Screw M5 X 20

250000724

$1.39

520

Flat Washer M6 X 25

250200044

$2.31

530

Pop Rivet 3/16"

293150100

$1.08

540

Washer M5

250200025

$0.61

600

LH Upper Front Bulkhead

707900513

$16.12

700

RH Upper Front Bulkhead

707900514

$16.12

705

Pop Rivet 3/16"

293150100

$1.08

710

Panel Nut M6 X 1.0

250100198

$1.73

715

Torx Screw M6 X 20

250000722

$1.34

1000

Dashboard Kit

715008528

$193.82

1020

Torx Screw M6 X 20

250000722

$1.34

1030

Flat Washer M6.6 X 22

250200162

$1.91

1040

Hex. Flange Screw M6 X 40

207664044

$2.18

1050

Torx Truss Screw M6 X 50

250000749

$3.11

1060

Stainless Steel Flat Washer

234062670

$1.74

1070

Hex. Flange Elastic Nut M6

233261466

$1.66

1100

Dash Support

707900941

$7.69

1200

Rear Gauge Trim

709402490

$20.74

1250

Front Gauge Trim

709402487

$20.74

1375

Torx Truss Screw K40 X 12

250000577

$1.74

1400

Storage Cover

707900522

$13.52

1410

Grommet

517303756

$3.15

1500

Switch Support

707900870

$17.66

1525

Screw PT Type K-50 X 16

250000959

$1.74

1600

Glove Box

715005011

$55.35

1700

Glove Box Cover

715005009

$50.74

1710

Oblong Grommet

707900663

$1.79

1800

Passenger Handle Bar Kit

707900559

$32.28

1910

Torx Screw K50 X 16

250000720

$1.39

1920

Hex. Screw M6 X 45

207064544

$2.02

1925

Hex. Flange Screw M6 X 60

250000778

$3.61

1940

Hex. Flange Elastic Nut M6

233261466

$1.66

1945

Stainless Steel Flat Washer

234062670

$1.74

2000

Front Cage Trim Kit

707901021

$26.12

2200a

Central Rear View Mirror Kit | Includes 2200a to 2200a5 But NOT 2200b

715009470

Unavailable

2200a3

Central Mirror

707900502

$55.35

2200a4

Torx Truss Screw M6 X 16

250000721

$1.39

2200a5

Hex. Elastic Flange Nut M6

233161464

$0.83

2200b

Mirror Support | NOT Included in 2200a

707901225

$64.58
