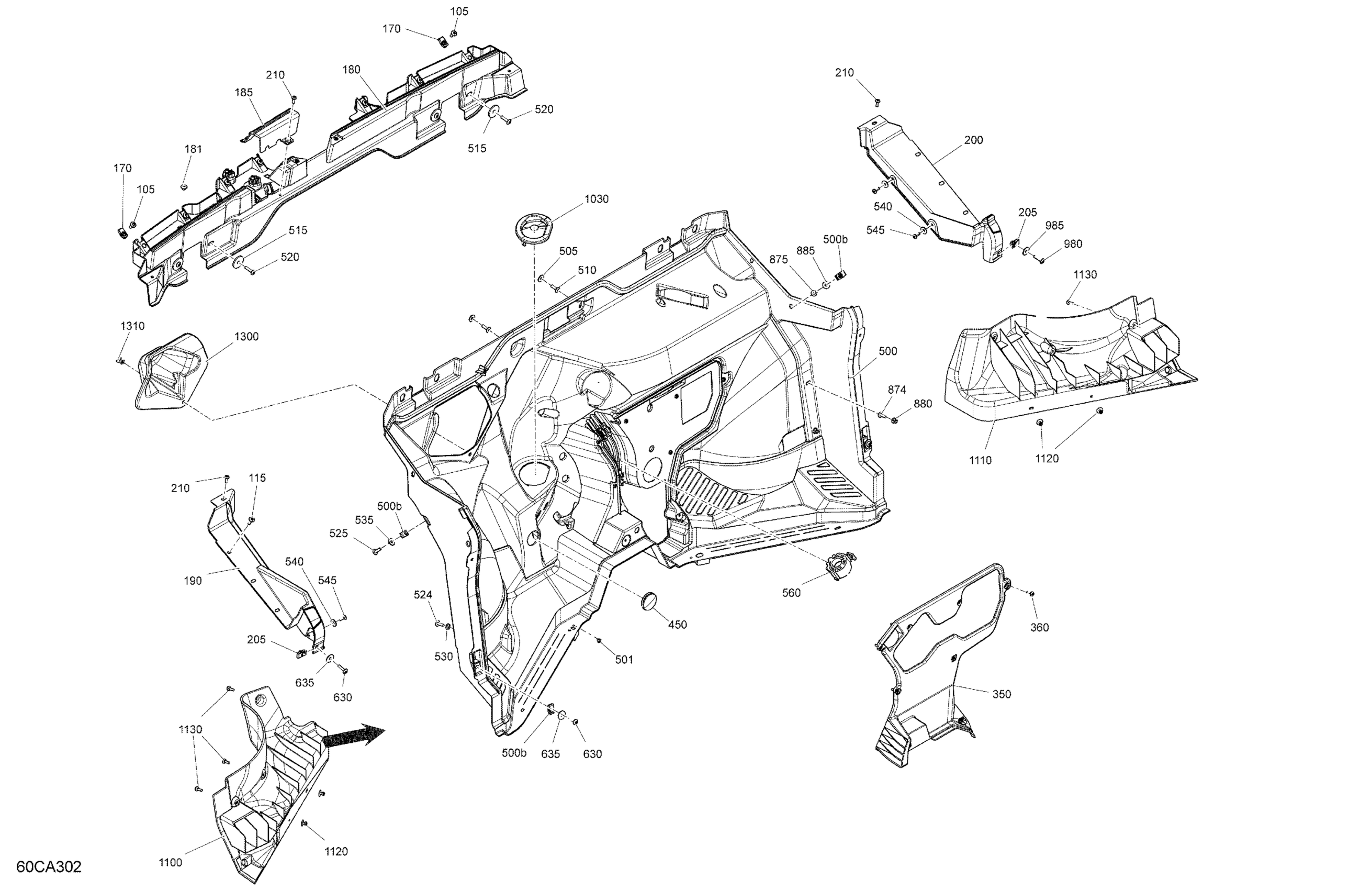

Can-Am Defender HD10 - DPS_XT - 2021 Cab Interior - Firewall Diagram

#

Description
Price

105

Torx Truss Screw M6 X 16

250000721

$1.69

115

Torx Screw M6 X 20

250000722

$1.68

170

Panel Nut M6 X 1.0

250100198

$2.11

180

Front Upper Deflector

707900755

$54.99

181

Pop Rivet 3/16"

293150103

$0.55

185

Front Upper Deflector

707900747

$12.99

190

LH Upper Deflector

707900738

$54.99

200

RH Upper Deflector

707900739

$54.99

205

Panel Nut M6 X 1.0

250100198

$2.11

210

Torx Screw K50 X 16

250000720

$1.69

350

Front Panel Trim

707900740

$21.49

360

Torx Screw K50 X 16

250000720

$1.69

450

Rubber Cover

293250242

$6.99

500

Front Cab Panel Ass'y | Includes 500 to 500b

707900981

$219.99

500b

Panel Nut M6 X 1.0

250100198

$2.11

501

Pop Rivet 3/16"

390402200

$0.35

505

Stainless Steel Flat Washer

234062670

$2.11

510

Torx Screw M6 X 20

250000722

$1.68

515

Flat Washer M8

250200158

$2.11

520

Torx Truss Screw M6 X 25

250000807

$2.11

524

Torx Screw M6 X 20

250000712

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Hex. Flange Elastic Nut M6

233261494

$1.58

535

Stainless Steel Flat Washer

234062670

$2.11

540

Stainless Steel Flat Washer

234062670

$2.11

545

Torx Screw K50 X 16

250000720

$1.69

560

Split Grommet

707900719

$4.39

630

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

635

Flat Washer M6.6 X 22

250200162

$2.32

874

Torx Screw M6 X 20

250000712

$2.11

875

Torx Screw M6 X 20

250000722

$1.68

880

Hex. Flange Elastic Nut M6

233261494

$1.58

885

Stainless Steel Flat Washer

234062670

$2.11

980

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

985

Flat Washer M6.6 X 22

250200162

$2.32

1030

Sterring Column Trim

707900851

$6.09

1100

LH Front Deflector

707900750

$54.99

1110

RH Front Deflector

707900751

$54.99

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1130

Torx Screw K50 X 16

250000720

$1.69

1300

Exterior Cover

707900389

$14.49

1310

Tuflok Plastic Rivet

293150230

$1.47
