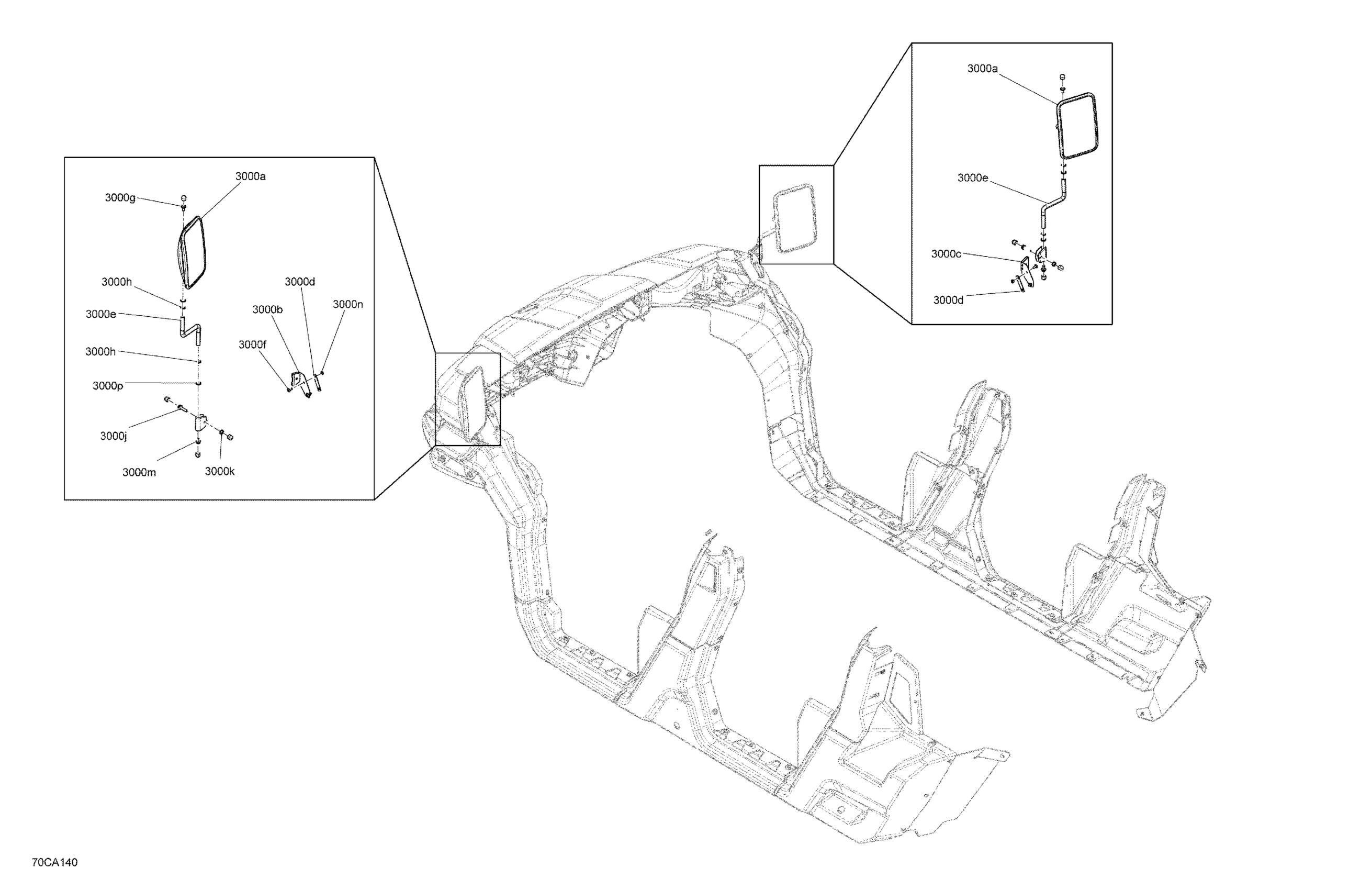

Can-Am Traxter MAX HD8 - DPS - CE, 2021 Body - System - Mirrors Diagram

Description

Price

3000a

Mirror

705011497

$80.49

3000b

LH Mirror Support

705012151

$28.99

3000c

RH Mirror Support

705012152

$28.99

3000d

Plate

705010469

$16.37

3000e

Mirror Rod

705012671

$33.99

3000f

Torx Truss Screw M6 X 16

250000348

$2.11

3000g

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

3000h

Snap Ring

293370131

$1.35

3000j

Hex. Flange Screw M8 X 35

207683544

$1.69

3000k

Hex. Flange Elastic Nut M8

233281414

$1.47

3000m

Torx Screw M6 X 25

250000758

$2.11

3000n

Hex. Flange Elastic Nut M6

233261494

$1.58

3000p

Flat Washer

250200178

$2.11
