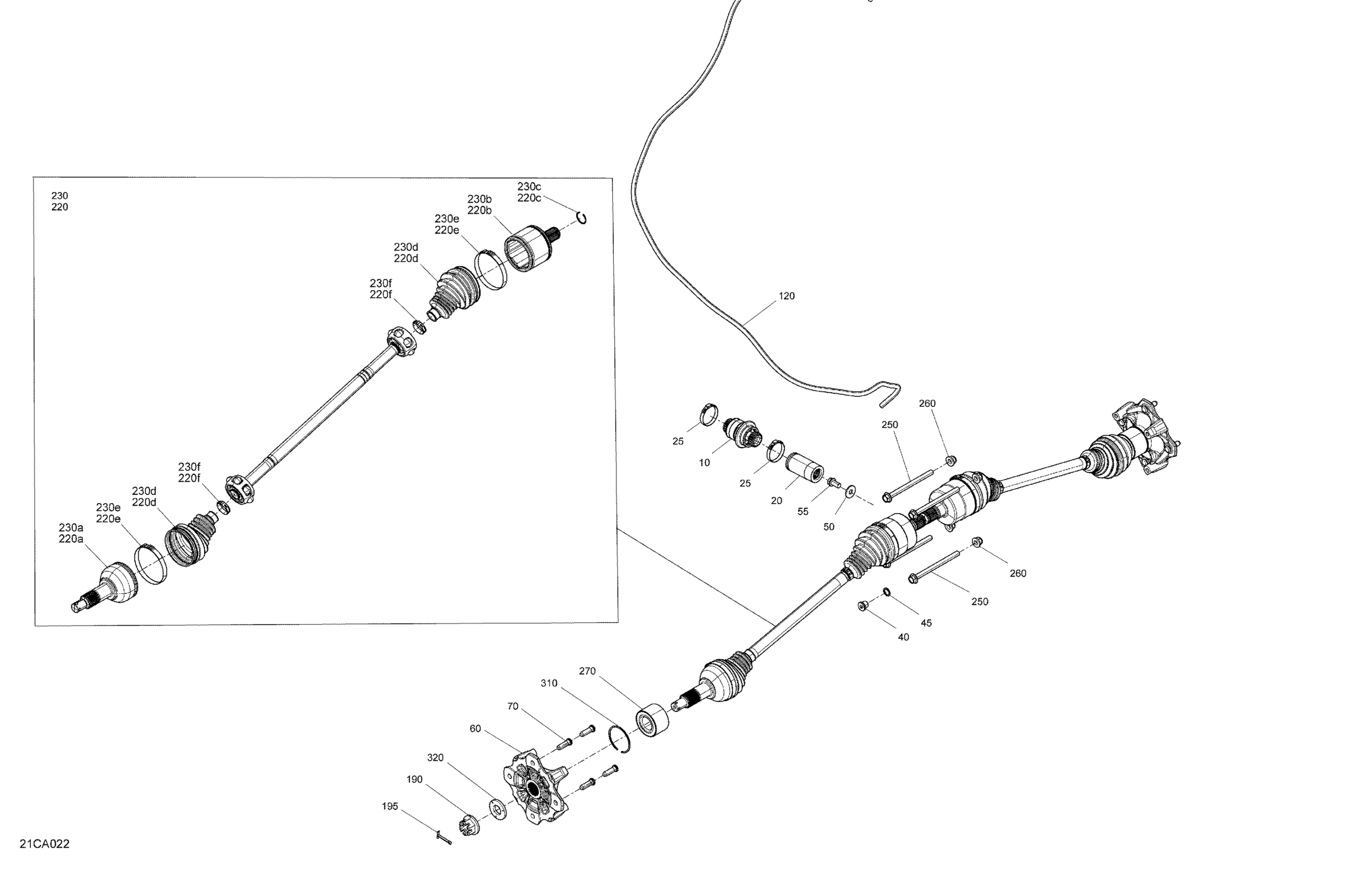

Can-Am Traxter HD10 - XT - CE, 2021 Drive - Rear Section - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y

705401950

$166.39

20

Coupling Sleeve

705401969

$26.09

25

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

40

Fill Level Plug | 4X4

705500504

$8.73

45

Copper Washer | 4X4

705500506

$0.42

50

Flat Washer M10 | 4X4

250200014

$1.34

55

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.15

60

Wheel Hub

705502338

$108.18

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

120

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

220

CV Joint | Includes 230 to 230f

705502831

$226.84

220a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

220b

Plunging Joint

715900444

$256.69

220c

Circlip

705501781

$5.10

220d

Boot Kit

705501864

$39.52

220e

Oetiker Clamp, 82.1 mm

715900241

$9.00

220f

Oetiker Clamp, 27.3 mm

715900242

$9.00

230

CV Joint | Includes 230 to 230f

705502831

$226.84

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900444

$256.69

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230e

Oetiker Clamp, 82.1 mm

715900241

$9.00

230f

Oetiker Clamp, 27.3 mm

715900242

$9.00

250

Hex. Flange Screw, M10 X 130

230603046

$6.99

260

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$12.63
