Description

Price

10

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$184.99

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$93.99

10a1

O-Ring

715900514

$19.49

10b

Air Filter

715900394

$52.99

20

Norma Clamp

293650091

$11.12

25

Elbow Fitting 90

293710155

$9.39

30

Intake Duct

707800834

$28.99

40

Crankcase Formed Hose

707800868

$39.99

50

Tridon Gear Clamp

293650173

$3.09

55

Tridon Gear Clamp

293650173

$3.09

60

Hex. Flange Screw M8 X 25

207682534

$2.11

65

Hex. Flange Screw M8 X 25

207682534

$2.11

70

Flat Washer M8

250200158

$2.11

75

Flat Washer M8

250200158

$2.11

90

Bushing

277000980

$15.99

95

Bushing

277000980

$15.99

100

Duct Bill Valve

715003114

$13.49

190

Resonator | Includes 450 to 450d

707800849

$104.99

190a

Plug

293000125

$1.15

215

Norma Clamp

293650096

$3.17

265

Hose Anchor

709200036

$11.12

270

Hex. Flange Screw M6 X 25

207662544

$0.64

280

Hex. Flange Nut M6

233061414

$1.68

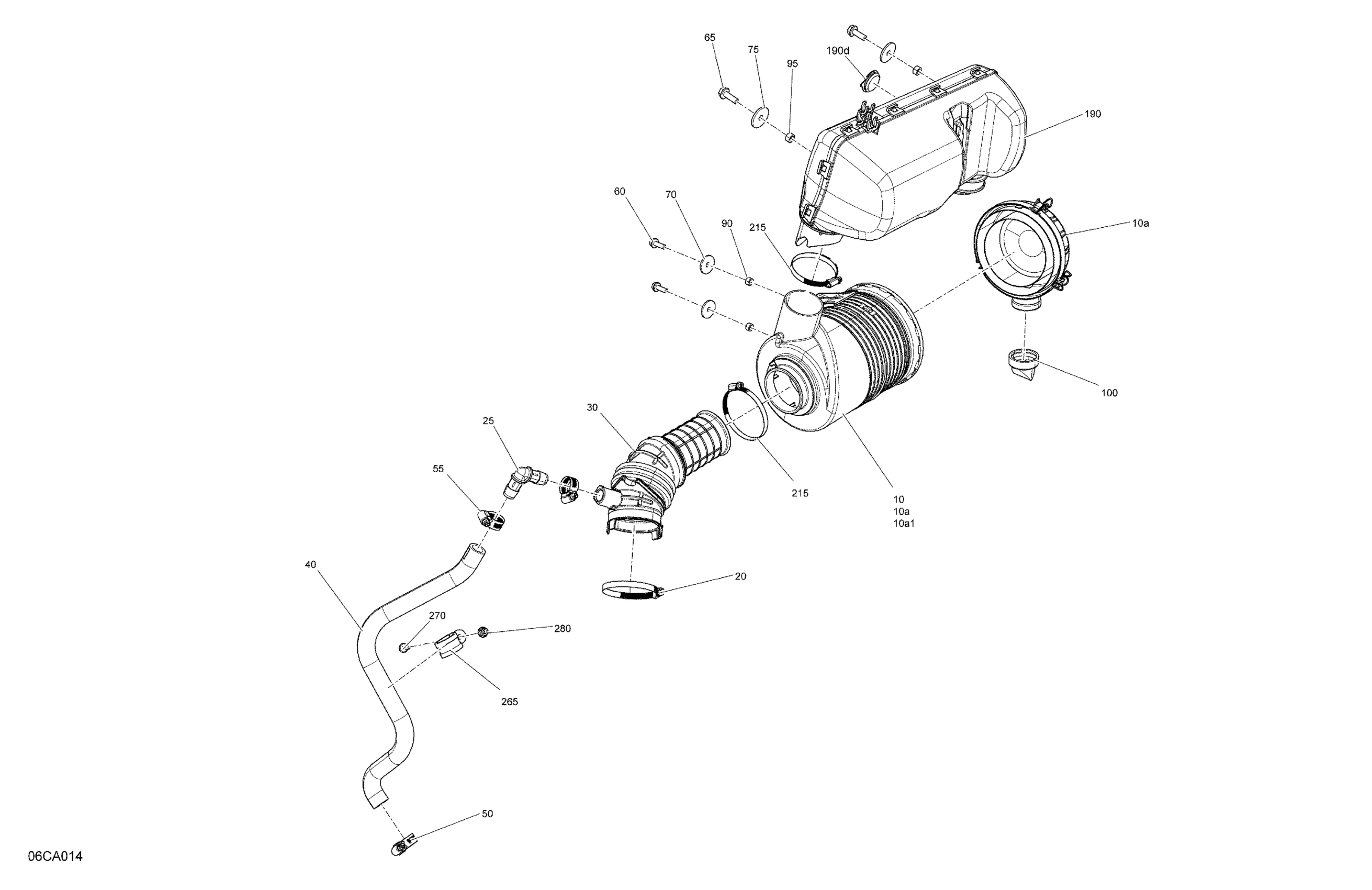

Can-Am Defender 6X6 HD10 - DPS_XT - 2021 Engine - Air Intake Diagram

Intake Silencer Ass'y | Includes 10 to 10b

Silencer Air Cover Ass'y | Includes 10a to 10a1

O-Ring

Air Filter

Norma Clamp

Elbow Fitting 90

Intake Duct

Crankcase Formed Hose

Tridon Gear Clamp

Tridon Gear Clamp

Hex. Flange Screw M8 X 25

Hex. Flange Screw M8 X 25

Flat Washer M8

Flat Washer M8

Bushing

Bushing

Duct Bill Valve

Resonator | Includes 450 to 450d

Plug

Norma Clamp

Hose Anchor

Hex. Flange Screw M6 X 25

Hex. Flange Nut M6
