Description

Price

10

Tundra Green, LH Front Fender

705015425

$204.99

10

Timeless Black, LH Front Fender

705015673

$204.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Tundra Green, RH Front Fender

705015426

$204.99

20

Timeless Black, RH Front Fender

705015674

$204.99

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Multi Purpose Support

705013766

$43.99

105

Torx Screw M6 X 20

250000722

$1.68

110

Panel Nut M6 X 1.0

250100198

$2.11

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Tundra Green, Front Hood

705015429

$139.99

160

Timeless Black, Front Hood

705015666

$379.99

320

Grille

705013590

$26.99

330

Clip

517306478

$1.09

395

Screw M4 X 16

250000725

$3.49

400

Deep Black, Front Fascia

705014165

$229.99

401

LH Flasher Cap

705012285

$14.49

402

RH Flasher Cap

705012286

$14.49

403

Torx Screw M6 X 20

250000722

$1.68

404

Panel Nut M6 X 1.0

250100198

$2.11

410

Torx Screw M8 X 30

250000886

$2.11

420

Washer

503192494

$3.17

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

510

Torx Screw M6 X 20

250000722

$1.68

520

Panel Nut M6 X 1.0

250100198

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Stainless Steel Flat Washer

234062670

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

LH Rear Body Panel Ass'y

715007497

$109.99

941

Black, Nylon Cap

414916600

$4.69

945

Tuflok Plastic Rivet

293150230

$1.47

950

RH Rear Body Panel Ass'y

715007498

$109.99

955

Tuflok Plastic Rivet

293150230

$1.47

960

Torx Screw M6 X 20

250000722

$1.68

970

Panel Nut M6 X 1.0

250100198

$2.11

1000

Deep Black, LH Central Panel

705019037

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1006

Stainless Steel Flat Washer

234062670

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Pop Rivet 3/16”

293150108

$1.19

1035

Pop Rivet 3/16”

293150108

$1.19

1100

LH Central Body Panel

705015817

$109.99

1105

Torx Truss Screw M6 X 25

250000807

$2.11

1115

Tuflok Plastic Rivet

293150230

$1.47

1120

Torx Truss Screw M6 X 25

250000807

$2.11

1122

Flat Washer M6.6 X 22

250200162

$2.32

1125

Stainless Steel Flat Washer

234062670

$2.11

1200

RH Central Body Panel

705015818

$109.99

1205

Torx Truss Screw M6 X 25

250000807

$2.11

1215

Tuflok Plastic Rivet

293150230

$1.47

1220

Torx Truss Screw M6 X 25

250000807

$2.11

1222

Flat Washer M6.6 X 22

250200162

$2.32

1225

Stainless Steel Flat Washer

234062670

$2.11

1300

LH Rear Cage Cover Kit

715003564

$82.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1335

Washer

503192494

$3.17

1350

Deep Black, LH Rear Body Panel

705014748

$114.99

1360

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1370

Washer M5

250200025

$0.74

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

1430

Tuflok Plastic Rivet

293150230

$1.47

1435

Washer

503192494

$3.17

1450

Deep Black, RH Rear Body Panel

705014749

$114.99

1460

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1470

Washer M5

250200025

$0.74

1880

Tuflok Plastic Rivet

293150230

$1.47

2100

Tuflok Plastic Rivet

293150230

$1.47

5000a

LH Front Deflector

705015795

$28.99

5000b

RH Front Deflector

705015796

$28.99

5000c

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

5400

LH Rear Deflector

705016336

$51.99

5450

RH Rear Deflector

705016337

$51.99

9710

Torx Truss Screw M6 X 25

250000807

$2.11

9720

Stainless Steel Flat Washer

234062670

$2.11

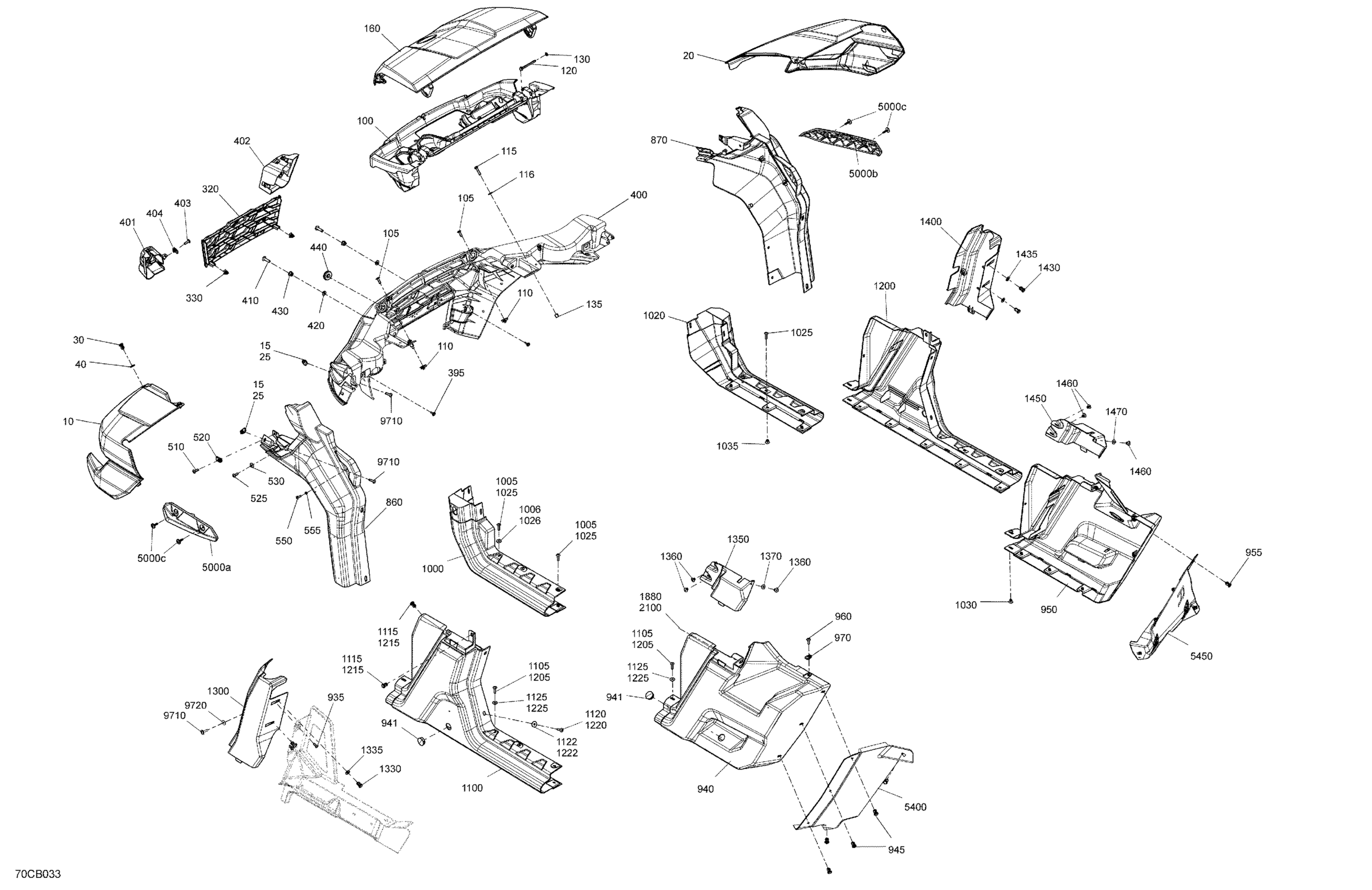

Can-Am Traxter PRO HD10 - DPS - CE, 2022 Body - System - With ABS Diagram

Tundra Green, LH Front Fender

Timeless Black, LH Front Fender

Panel Nut M6 X 1.0

Tundra Green, RH Front Fender

Timeless Black, RH Front Fender

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

Washer

Multi Purpose Support

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 30 | International

Stainless Steel Flat Washer

Hex. Flange Screw M6 X 75

Push Nut

Bushing

Tundra Green, Front Hood

Timeless Black, Front Hood

Grille

Clip

Screw M4 X 16

Deep Black, Front Fascia

LH Flasher Cap

RH Flasher Cap

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw M8 X 30

Washer

Hex. Flange Elastic Nut M8

Grommet

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw K50 X 16

Flat Washer M5

LH Front Lateral Panel

RH Front Lateral Panel

Torx Screw K50 X 16

LH Rear Body Panel Ass'y

Black, Nylon Cap

Tuflok Plastic Rivet

RH Rear Body Panel Ass'y

Tuflok Plastic Rivet

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Deep Black, LH Central Panel

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Deep Black, RH Central Panel

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Pop Rivet 3/16”

Pop Rivet 3/16”

LH Central Body Panel

Torx Truss Screw M6 X 25

Tuflok Plastic Rivet

Torx Truss Screw M6 X 25

Flat Washer M6.6 X 22

Stainless Steel Flat Washer

RH Central Body Panel

Torx Truss Screw M6 X 25

Tuflok Plastic Rivet

Torx Truss Screw M6 X 25

Flat Washer M6.6 X 22

Stainless Steel Flat Washer

LH Rear Cage Cover Kit

Tuflok Plastic Rivet

Washer

Deep Black, LH Rear Body Panel

Pop Rivet 3/16" | DS 650 X

Washer M5

RH Rear Cage Cover Kit | Includes 1160 to 1160a

Tuflok Plastic Rivet

Washer

Deep Black, RH Rear Body Panel

Pop Rivet 3/16" | DS 650 X

Washer M5

Tuflok Plastic Rivet
