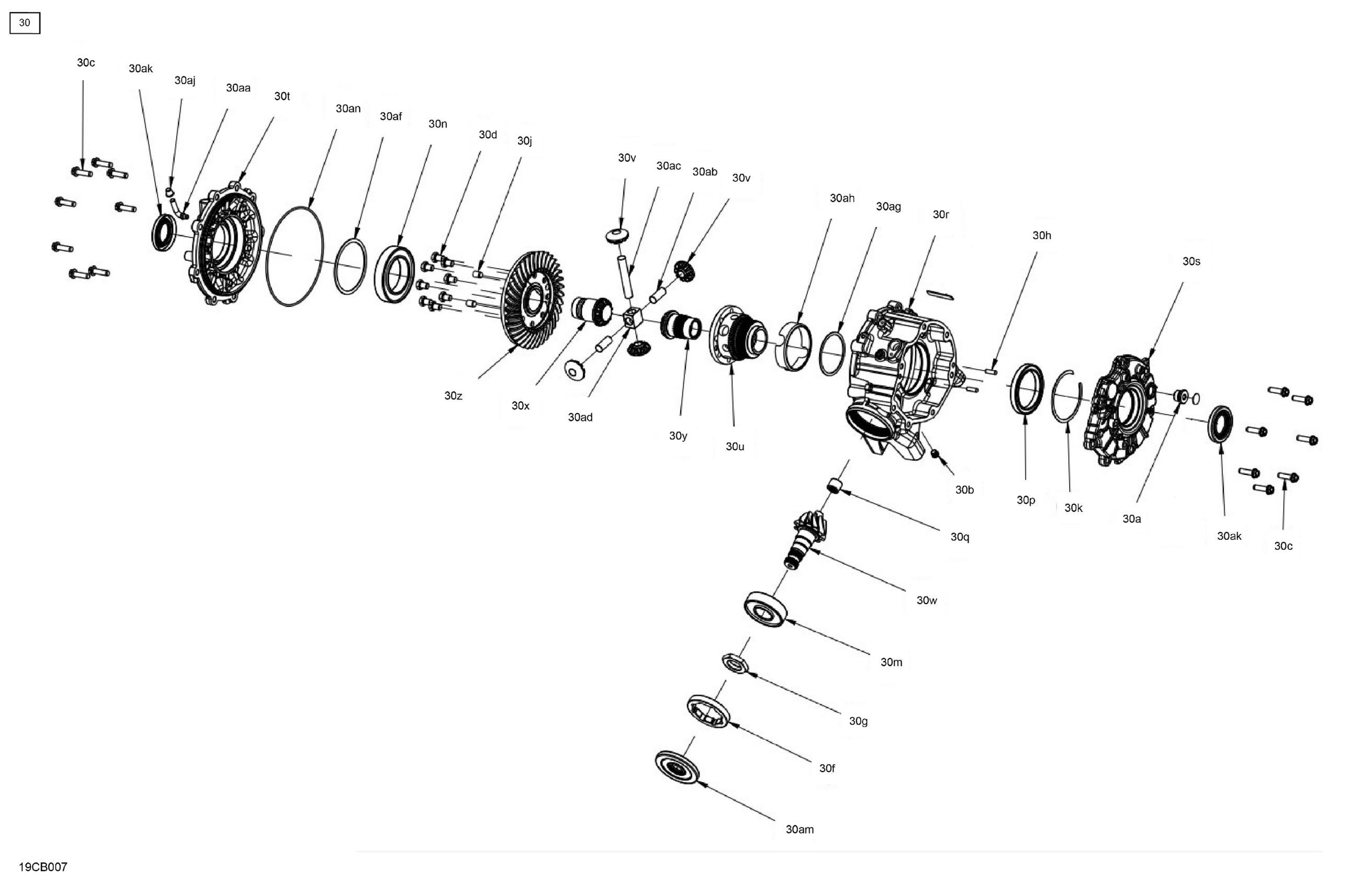

Can-Am Traxter PRO HD10 - DPS - CE, 2022 Drive - Front - Differential Parts - With ABS System Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30an

705403424

$1,339.99

30a

Fill Level Plug

705501889

$20.49

30b

Fill Level Plug M10

715900563

$27.49

30c

Bolt

705501886

$7.69

30d

Hex Screw 3/8 X 0.500

715900561

$13.76

30f

Nut M75 X 1.5

705401819

$23.99

30g

Nut M27 X 1.5

705401820

$20.99

30h

Dowel Pin

715900559

$6.67

30j

Dowell Pin

715900618

$21.99

30k

Retainin Ring

715900558

$26.99

30m

Ball Bearing

705401821

$31.99

30n

Ball Bearing 60 X 95 X 18

715900556

$43.49

30p

Ball Bearing 65 X 85 X 10

715900554

$94.49

30q

Needle Bearing

715900634

$38.99

30r

Mid Case

715900675

$312.49

30s

RH Cover

715900685

$126.99

30t

LH Cover

715900686

$126.99

30u

Housing

715900617

$121.99

30v

Pinion 10T

715900548

$88.99

30w

Pinion 10 T

715900635

$194.99

30x

Gear 14T

715900546

$88.99

30y

Gear 14T

715900545

$88.99

30z

Gear 36T

715900676

$409.99

30aa

Vent Valve

705401935

$16.49

30ab

Pinion Pin 0.5 X 1.250

715900543

$21.99

30ac

Pinion Pin 0.5 X 3.000

715900542

$21.99

30ad

Coupler, Pin

715900541

$65.49

30af

Shim 74.50 X 66.00

715900539

$179.99

30ag

Shim 3.735 X 3.300

715900538

$274.99

30ah

Cross Pin Retainer

715900535

$28.99

30aj

Vent Cap 5/16

715900533

$7.69

30ak

Oil Seal

715900531

$26.49

30am

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

30an

O-Ring

715900530

$13.16
