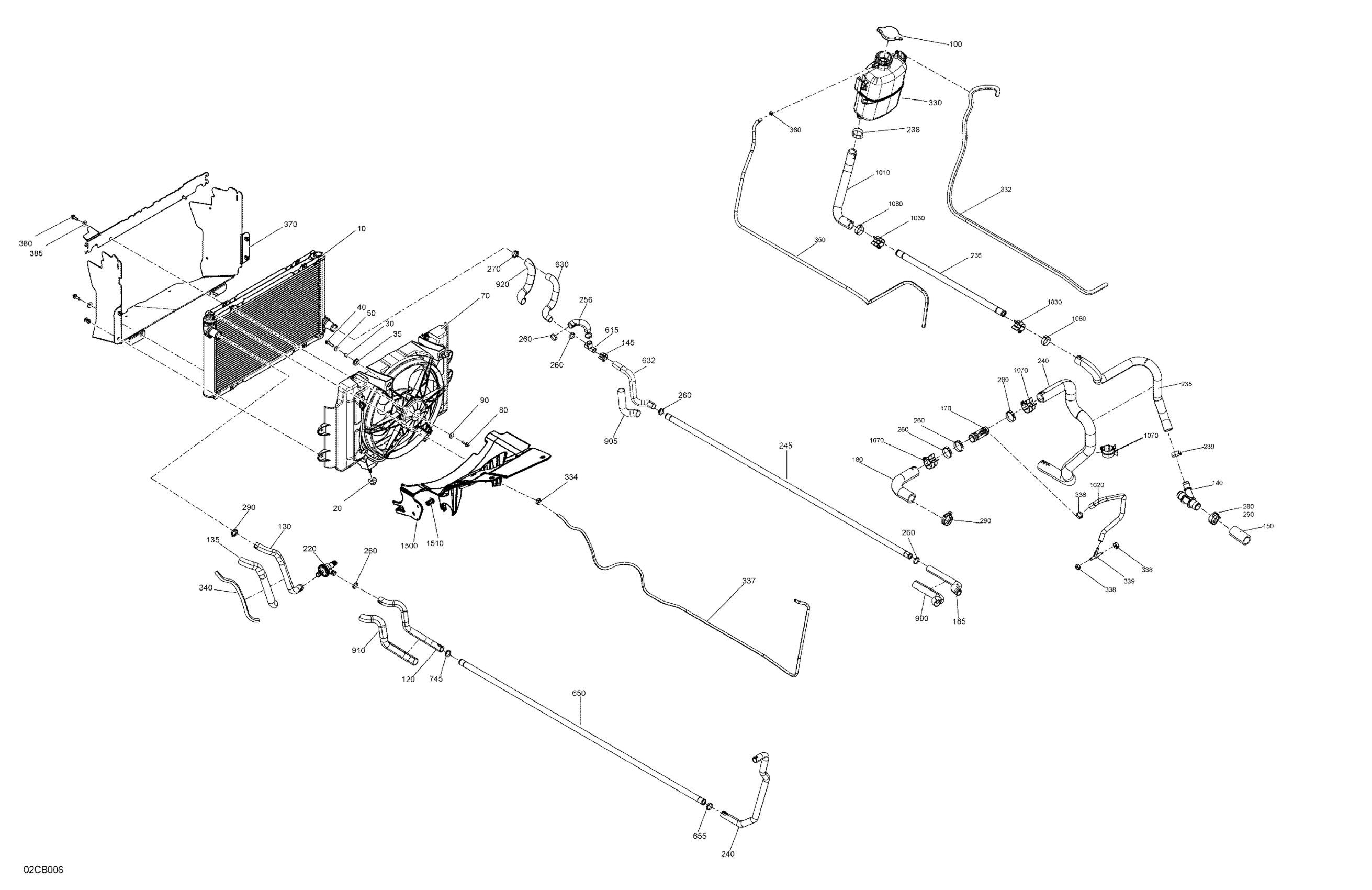

Can-Am Traxter PRO HD10 - DPS - CE, 2022 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$370.99

20

Grommet

709200948

$8.89

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

120

Hose

709201028

$21.99

130

Formed Radiator Hose IN

709201443

$16.40

135

Tubing 35 MM 1000MM Long

219704428

$10.99

140

Y Fitting

509001200

$5.50

145

Retainer

275500590

$9.69

150

Hose

709200299

$8.60

170

T-Fitting

509000510

$13.16

180

Hose Engine In

709201006

$11.63

185

Hose

709200971

$41.49

220

Thermostat Housing

709200986

$96.49

235

Formed Coolant Tank Hose Out

709201034

$36.99

236

Expansion Tank Tube

709200834

$19.49

238

Oetiker Gear Clamp

293650165

$5.39

239

Oetiker Gear Clamp

293650165

$5.39

240

Thermostat Inlet Hose

709201035

$35.99

245

Heater Tubing

709200658

$39.99

256

Formed Thermostat Hose OUT

709201439

$16.40

260

Gear Clamp

509000162

$7.29

270

Norma Spring Clamp

293650166

$4.44

280

Norma Spring Clamp

293650166

$4.44

290

Norma Spring Clamp

293650166

$4.44

330

Coolant Tank

709201323

$80.99

332

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Clamp

293650042

$3.09

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 10000Mm Long

219704410

$56.99

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

370

Front Radiator Deflector Ass'y

715008419

$52.99

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

615

T-Fitting

509001313

$16.40

630

Formed Radiator Hose OUT

709201440

$11.10

632

Hose Radiator Out

709201029

$11.10

650

Heater Tubing

709200658

$39.99

655

Gear Clamp

509000162

$7.29

745

Gear Clamp

509000162

$7.29

900

Tubing 35 MM 1000MM Long

219704428

$10.99

905

Tubing 35 MM 1000MM Long

219704428

$10.99

910

Tubing 35 MM 1000MM Long

219704428

$10.99

920

Tubing 35 MM 1000MM Long

219704428

$10.99

1010

Hose Coolant Tank Out Formed

709200836

$16.18

1020

Bleeding Hose

709200840

$20.99

1030

Cable Retainer

275500527

$2.68

1070

Retainer

275500590

$9.69

1080

Oetiker Gear Clamp

293650165

$5.39

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.47
