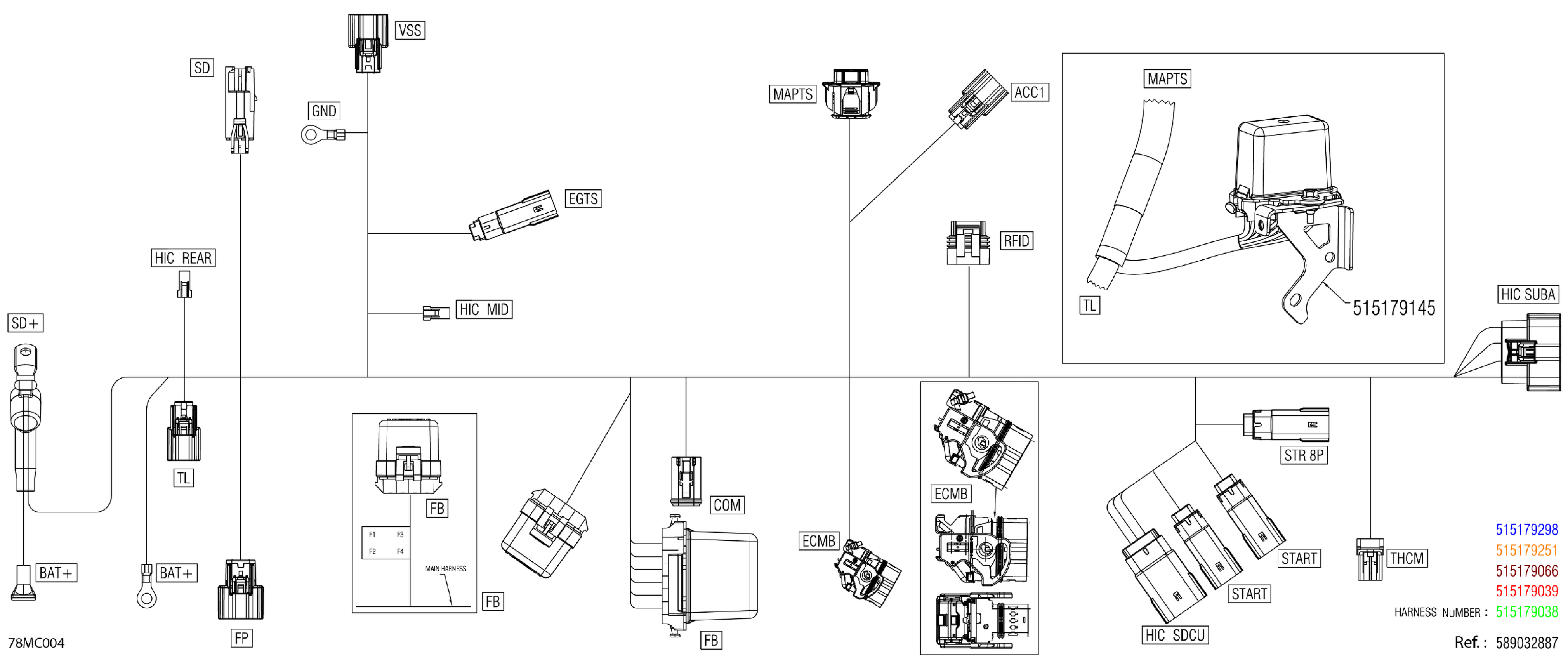

Ski-Doo 005 - SUMMIT 850 E-TEC - EDGE - Package 154" (CGPF) - North America, 2023 08- Electric - Main Harness - 515179251 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179251

$299.99

ACC1

Housing

515178954

$35.99

ACC1

Female Terminal

515178018

$1.19

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

48 Circuits Female Housing

515178168

$46.49

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001727

$3.19

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

EGTS

Clip Connector

515178223

$2.09

EGTS

2 Circuits Male Housing

515178020

$23.99

EGTS

Male Terminal

515178013

$3.19

F1

Little Fuse, 5 Amperes

710000742

$8.79

F2

Little Fuse, 25 Ampere

278002389

$4.55

F3

Little Fuse, 30 Amperes

710000747

$8.49

F4

Little Fuse, 20 Amperes

710000746

$8.49

FB

Clip

710000992

$4.29

FB

Fuse Box Cover

515178132

$17.49

FB

Fuse Label

515179295

Unavailable

FB

Foam

515178194

$4.44

FB

Fuse Box

515178001

$18.08

FB

Connector Lock

515178909

$11.59

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

710000048

$7.69

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

515178139

$3.09

FP

Female Housing

515178474

$34.99

FP

Female Terminal

515178018

$1.19

GND

Shrink Tubing, 6 mm

515177246

$1.04

GND

Open Barrel Terminal

278001392

$4.79

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$16.49

HIC SUBA

Sealing Cap

278002860

$1.79

HIC SUBA

Female Terminal

515178018

$1.19

HIC SUBA

Female Terminal

515178014

$2.39

MAPTS

Male Connector

515176410

$51.49

MAPTS

Seal

415128501

$1.89

MAPTS

Female Terminal

710001137

$4.55

RFID

5 Circuits Male Housing Tab

278002330

$9.09

RFID

Female Terminal

710001119

$5.39

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Terminal

515177214

$7.86

START

Clip Connector

515178223

$2.09

START

Housing

515178023

$14.74

START

Sealing Cap

278002860

$1.79

START

Male Terminal

515178013

$3.19

STR8P

Clip Connector

515178223

$2.09

STR8P

Molex Male Connector 8 Cavities

515178907

$11.12

STR8P

Male Terminal

515178013

$3.19

THCM

Female Terminal Housing, 4 Circuit

515177048

$10.99

THCM

Lock, 4 Circuits

515177051

$10.49

THCM

Seal

515177050

$7.86

THCM

Female Terminal

515177049

$5.61

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TL

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

VSS

Housing

515178954

$35.99

VSS

Female Terminal

515178018

$1.19
