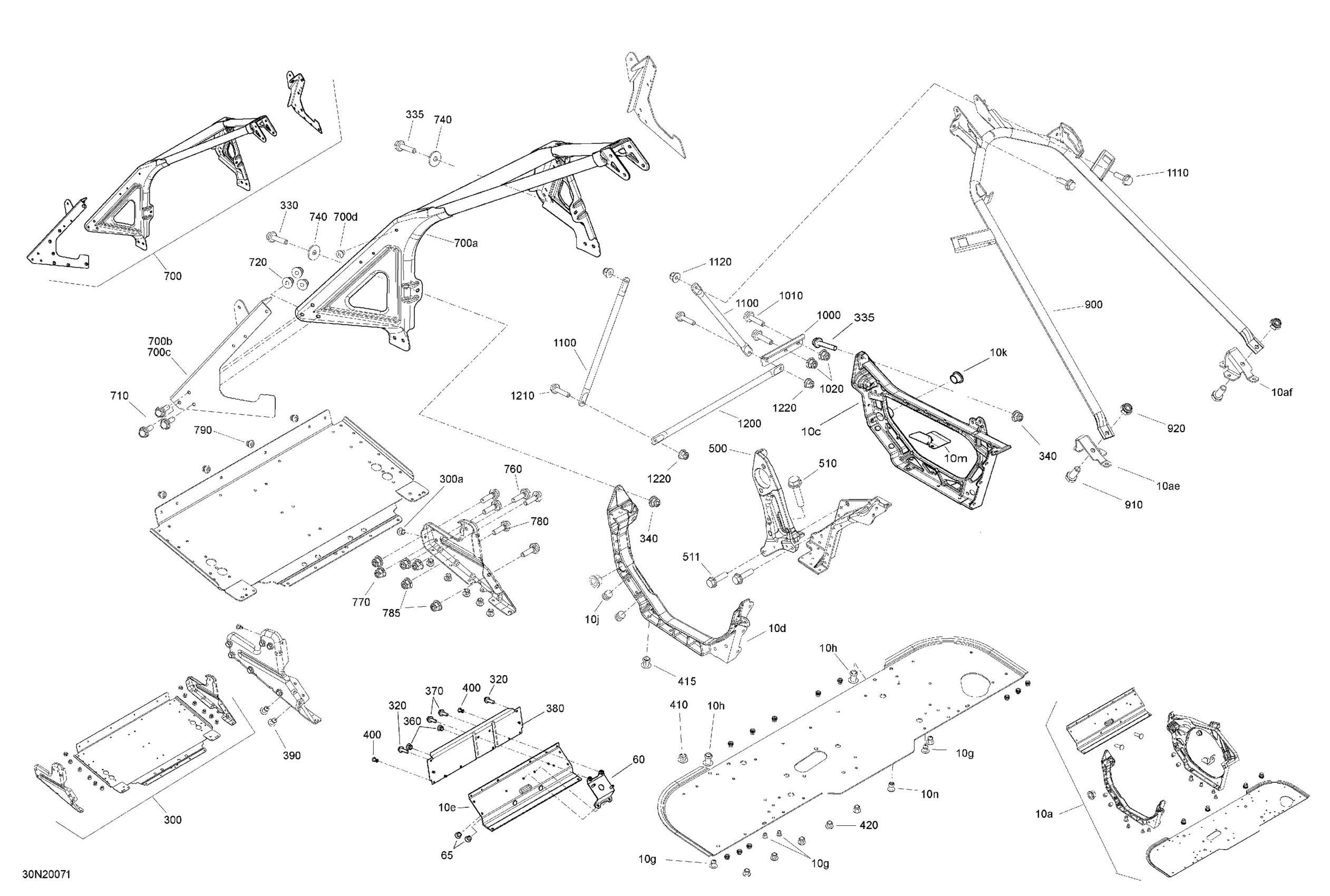

Ski-Doo SKANDIC SWT 600HO E-TEC - 2020 Frame - System - Front Section Diagram

#

Description
Price

10a

Module E | Includes 10a to 10n

518329691

$882.28

10c

RH Member

518326795

$259.97

10d

LH Member

518326796

$210.74

10e

Front Member

518326198

$59.97

10g

Avex Rivet

390909100

$0.29

10h

Hemlock Rivet 6.5 mm

293150120

$7.23

10j

Hemlock Rivet, 6.5 mm

293150119

$4.00

10k

Leg Bushing

505072690

Unavailable

10m

Muffler Support

518328194

$16.89

10n

Rivet Hucklok

293150163

$2.82

10ae

LH Support Tube Bracket

518329109

$44.58

10af

RH Support Tube Bracket

518329110

$44.58

60

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

65

Hemlock Rivet, 6.5 mm

293150119

$4.00

300

S Module | Includes 300 to 300a

518326213

$776.12

300a

Avex Rivet

390909200

$0.29

320

Hexagonal Head Screw

210262050

$1.74

330

Hex. Flange Screw M6 X 25

207662544

$0.53

335

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

360

Hemlock Rivet, 6.5 mm

293150119

$4.00

370

Hex. Flange Screw M6 X 16

207661644

$0.61

380

SUPPORT PLATE - Call your local BRP dealership

518325620

Unavailable

390

Avex Rivet

390909100

$0.29

390

Avex Rivet

390909100

$0.29

400

Rivet Hucklok

293150163

$2.82

410

Hemlock Rivet, 6.5 mm

293150119

$4.00

415

Rivet

293150183

$2.06

420

Avex Rivet

390909200

$0.29

500

Pulley Support

518328434

$130.74

510

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

511

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.25

700

Front Member Ass'y | Includes 700 to 700d

518326754

$674.58

700a

Front Member, S Module

518326558

$232.28

700b

LH Bumper Fastener

502007077

$53.05

700c

RH Bumper Fastener

502007078

$53.05

700d

Avex Rivet

390909200

$0.29

710

Hex. Flange Screw M6 X 20

207662044

$1.66

720

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

740

Flat Washer

224061201

$1.11

760

Hex. Flange Screw M6 X 20

207662044

$1.66

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

780

Hex. Flange Screw M6 X 20

207662044

$1.66

785

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

790

Avex Rivet

390909200

$0.29

900

Upper Support Tube

518329105

$189.97

910

Hex. Screw M8 X 20

207182044

$0.61

920

Hex. Elastic Stop Nut M8

232581414

$0.47

1000

Extension Plate

518330343

$7.42

1010

Hex. Flange Screw M6 X 25

207662544

$0.53

1020

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1100

Upper Lateral Column Support

518325114

$20.74

1110

Hex. Flange Screw M6 x 20

207662056

$0.98

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1200

Center Column Support

518325115

$20.74

1210

Hex. Flange Screw M6 X 25

207662556

$3.61

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
