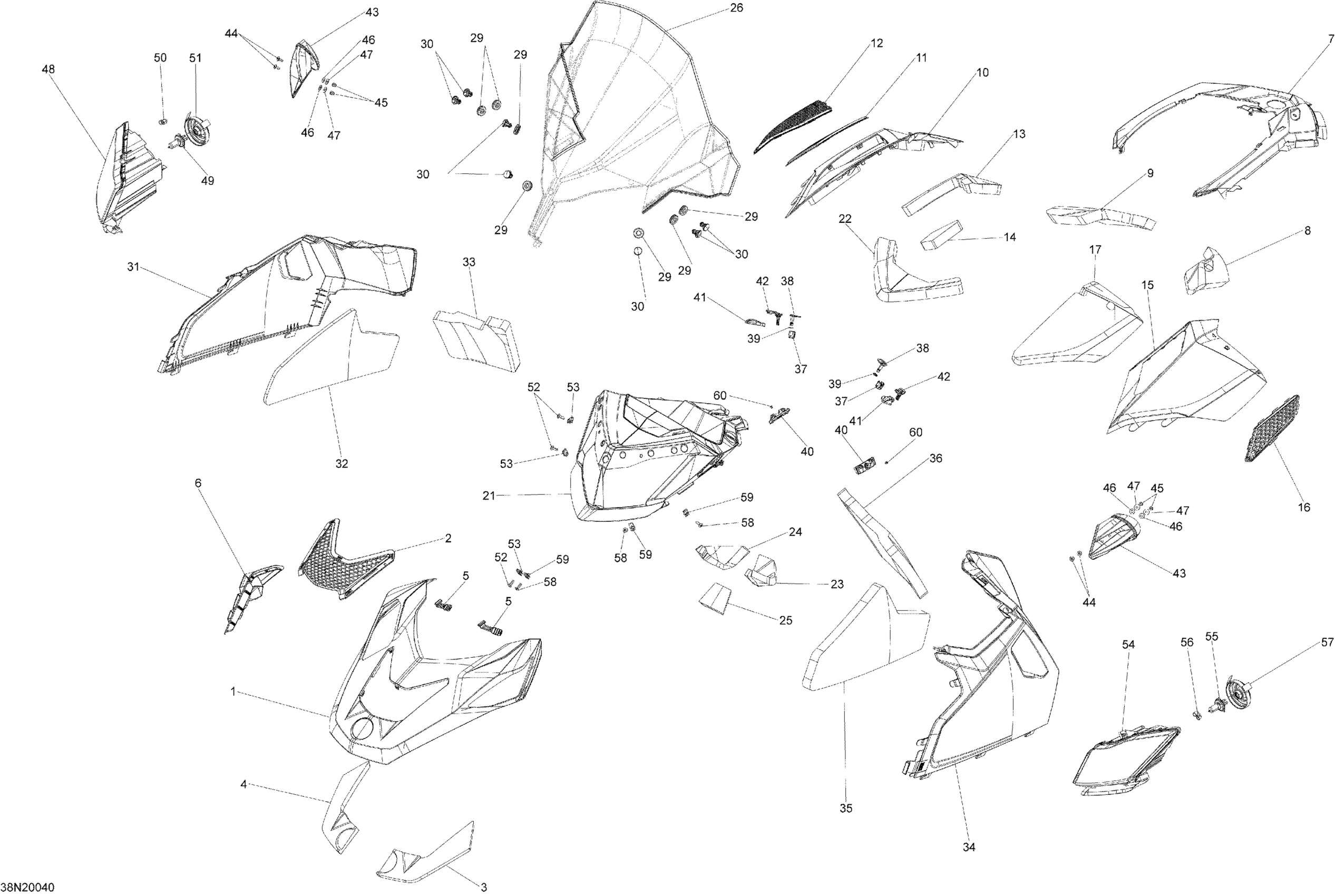

Ski-Doo SKANDIC SWT 600HO E-TEC - 2020 Body - Hood Section - Skandic Diagram

#

Description
Price

1

Hood | Viper Red

517304810

$264.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Scoop Grille

517306980

$37.99

7

Console | Package SWT

517305609

$179.99

8

Insulator

517305644

$38.99

9

Insulator

517304318

$48.99

10

RH Side Access Panel | Viper Red

517304831

$309.99

11

RH Access Panel Grille

517304015

$36.99

12

RH Lower Acces Grille

517304016

$31.99

13

Insulator

517304311

$61.99

14

Insulator

517305987

$31.99

15

LH Side Access Panel | Viper Red

517304841

$309.99

16

LH Access Panel Grille

517303893

$36.99

17

Insulator

517304313

$61.99

21

Indicator Support

517304272

$179.99

22

Insulator

517304314

$62.99

23

Insulator

517304315

$31.99

24

Insulator

517304316

$31.99

25

Insulator

517304319

$31.99

26

Windshield Ass'y

860201000

$209.99

29

Grommet

517303756

$4.09

30

Button

517304744

$2.19

31

Black, RH Side Panel

517306977

$249.99

32

Foam Right

517304709

$53.99

33

RH Rear Foam

517304310

$60.99

34

Black, LH Side Panel

517306979

$249.99

35

Foam LH

517304707

$53.99

36

LH Rear Foam

517304309

$60.99

37

Handle Fastener Quarter-Turn

517304297

$16.99

38

Quarter-Turn Handle

517304296

$16.99

39

Locking Plate

517304538

$4.59

40

Side Panel Support | Except Package SWT

517304497

$19.99

40

Grommet

517303756

$4.09

41

End Piece Latch

517304075

$4.69

42

Latch-Panel

517306057

$24.49

43

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

44

Torx Truss Screw M6 X 16

250000721

$1.69

45

Domed Nut M6

232361493

$2.11

46

Rubber Washer 5 mm

250200024

$2.19

47

Washer

20117

$6.39

48

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

49

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

50

Cap

515176498

$12.99

51

Rubber Cap Protector

219800280

$19.49

52

Torx Screw M6 X 20

250000722

$1.68

53

Panel Nut M6 X 1.0

250100198

$2.11

54

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

55

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

56

Cap

515176498

$12.99

57

Rubber Cap Protector

219800280

$19.49

58

Torx Screw M6 X 20

250000722

$1.68

59

Panel Nut M6 X 1.0

250100198

$2.11

60

Rivet | Except Package SWT

293150211

$2.19
