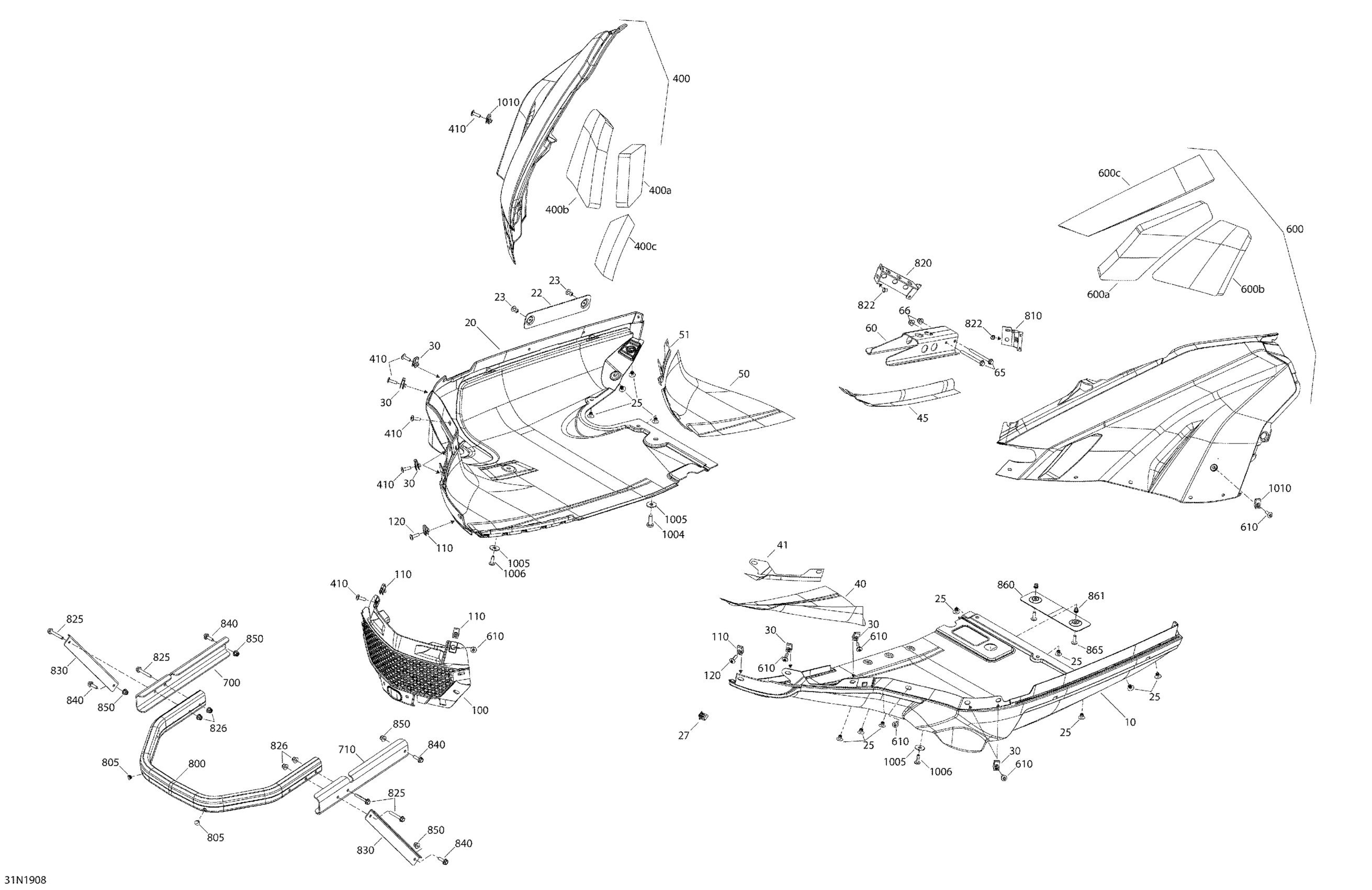

Ski-Doo SKANDIC SWT 600HO E-TEC - 2020 Body - Bottom Pan - SWT Diagram

#

Description
Price

10

LH Lower Bottom Pan

502007836

$224.99

20

RH Lower Bottom Pan

502007837

$199.99

22

Heat Isolation Plate

502007255

$5.79

23

Rivet | Except Package SWT

293150211

$2.19

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

27

Edge Clip

517302785

$0.88

30

Panel Nut M6 X 1.0

250100198

$2.11

40

Heat Shield

508000918

$8.79

41

Heat Shield

508000919

$10.49

45

Heat Shield

508000920

$17.49

50

Heat Shield

508000921

$8.79

51

Heat Shield

508000922

$4.59

60

Support

502007688

$18.49

65

Hex. Flange Screw M6 X 70

207667056

$4.44

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100

Front Grille

502007140

$89.99

110

Panel Nut M6 X 1.0

250100198

$2.11

120

Torx Screw M6 X 20

250000722

$1.68

400

Deep Black, RH Bottom Pan

502008015

$144.99

400a

Insulator

502007133

$29.99

400b

Insulator

502007132

$29.99

400c

Insulator | Except Package EXTREME

502007009

$19.49

410

Torx Screw M6 X 20

250000722

$1.68

600

Deep Black, LH Bottom Pan

502008017

$139.99

600a

Insulator

502007088

$67.99

600b

Insulator

502007131

$29.99

600c

Insulator

502007185

$28.99

610

Torx Screw M6 X 20

250000722

$1.68

700

RH Bumper Support

502007379

$39.99

710

LH Bumper Support

502007380

$39.99

800

Bumper

502007381

$133.99

805

Full Moon Dart 8 mm

293730041

$2.21

810

LH Bottom Pan Fastener

502007535

$37.99

820

RH Bottom Pan Fastener

502007536

$37.99

822

Clinch Nut M6 Hexsert

605636003

$4.23

825

Hex. Flange Screw M6 X 40

207664044

$2.22

826

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

830

Bumper Support SWT

502007382

$40.99

840

Hex. Flange Screw M6 X 20

207662044

$2.00

850

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

860

Oil Plate

518328879

$13.49

861

Clinch Nut M6 Hexsert

605636003

$4.23

865

Torx Screw M6 X 20

250000722

$1.68

1004

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

1005

Flat Washer 8 mm

234082410

$1.47

1006

Torx Screw M6 X 20

250000722

$1.68

1010

Panel Nut M6 X 1.0

250100198

$2.11
