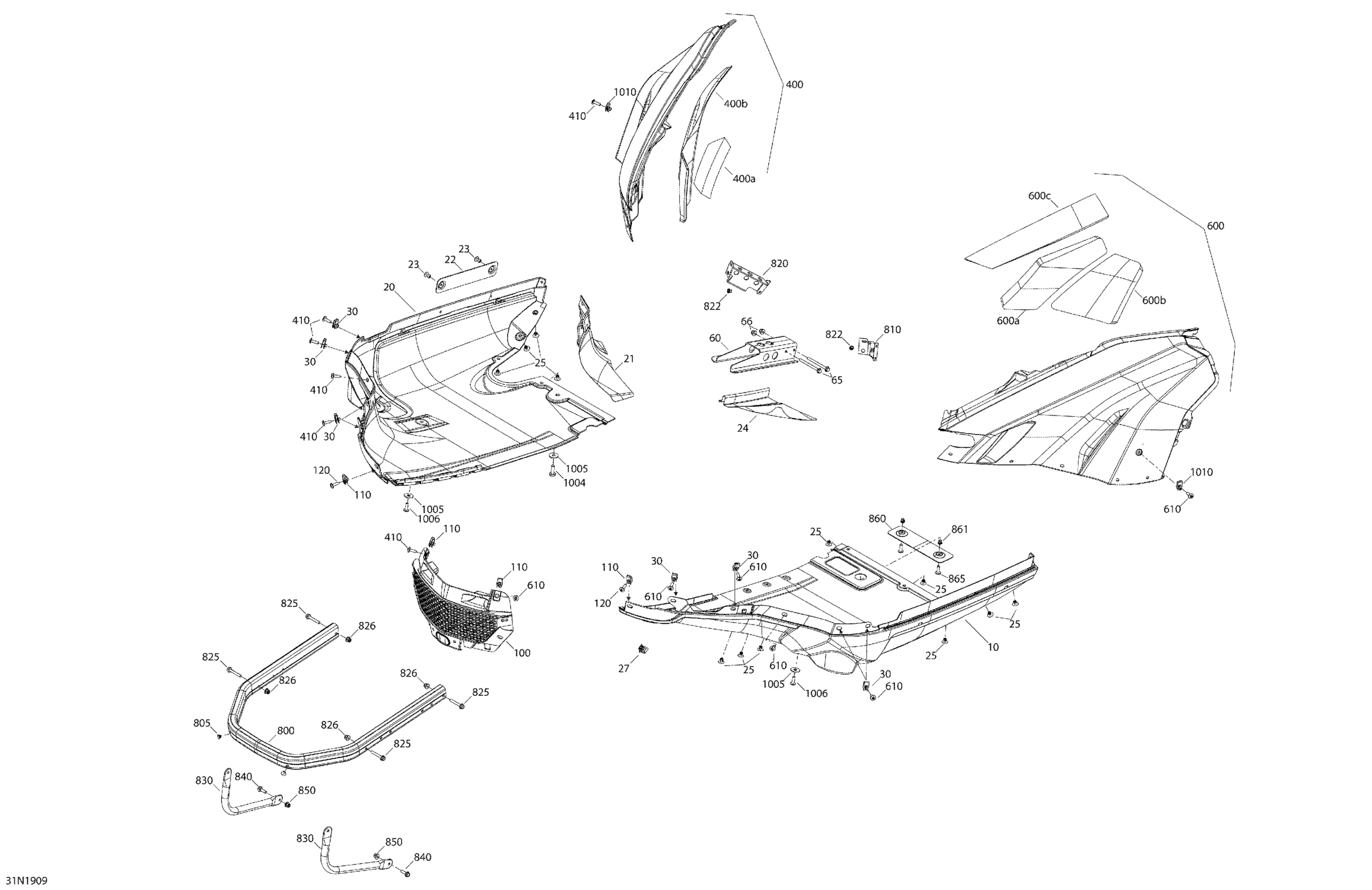

Ski-Doo 005 - Skandic SWT 550F, 2019 09- Bottom Pan - 550F - Package SWT Diagram

LH Lower Bottom Pan

502007836

$224.99

RH Lower Bottom Pan

502007837

$199.99

Heat Shield

508000924

Unavailable

Heat Isolation Plate

502007255

$5.79

Rivet | Except Package SWT

293150211

$2.19

Heat Shield

508000923

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Edge Clip

517302785

$0.88

Panel Nut M6 X 1.0

250100198

$2.11

Support

502007688

$18.49

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Front Grille

502007140

$89.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Bottom Pan, Rh Ass. B | Includes 400 to 400b

502007798

Unavailable

Insulator | Except Package EXTREME

502007009

$19.49

Heat Shield

508000925

Unavailable

Torx Screw M6 X 20

250000722

$1.68

Deep Black, LH Bottom Pan

502008017

$139.99

Insulator

502007088

$67.99

Insulator

502007131

$29.99

Insulator

502007185

$28.99

Torx Screw M6 X 20

250000722

$1.68

Clear Anod. Bumper | Package SWT & LE

502007684

$121.99

Full Moon Dart 8 mm

293730041

$2.21

LH Bottom Pan Fastener

502007648

Unavailable

RH Bottom Pan Fastener

502007629

Unavailable

Clinch Nut M6 Hexsert

605636003

$4.23

Hex. Flange Screw M6 X 40

207664044

$2.22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

BUMPER SUPPORT - Call your local BRP dealership

502007628

Unavailable

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Oil Plate

518328879

$13.49

Clinch Nut M6 Hexsert

605636003

$4.23

Torx Screw M6 X 20

250000722

$1.68

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Flat Washer 8 mm

234082410

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11
