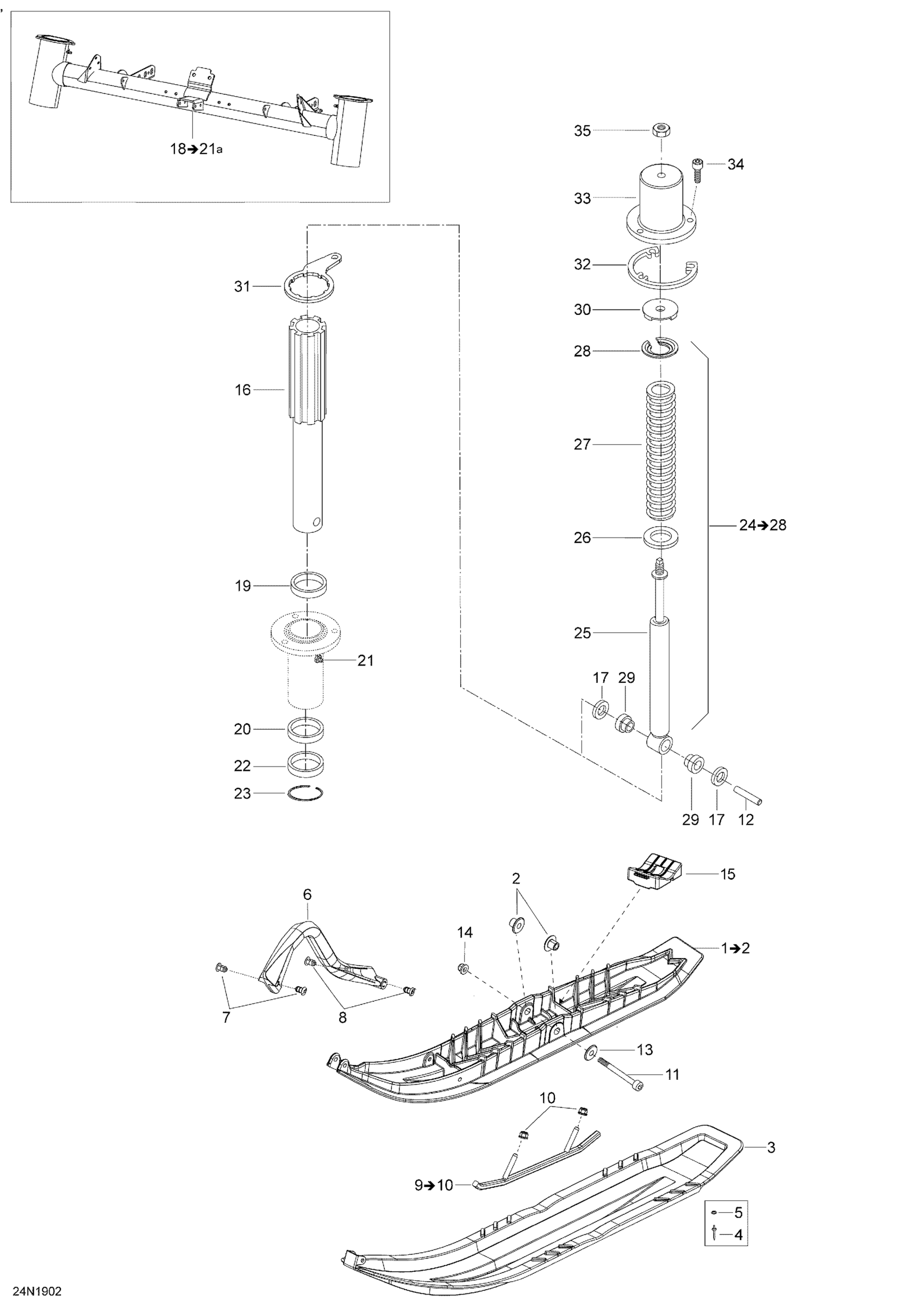

Ski-Doo Skandic SWT 550F, 2019 Front Suspension And Ski Diagram

#

Description
Price

1

Black, Ski

505073227

$175.35

5

Black, Handle

505072976

$35.35

6

Retainer 17mm long

505071812

$4.43

7

Retainer 23mm Long

505072133

$5.03

8

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

12

Ski Axle

505073209

$12.69

13

Washer

503192496

$0.75

14

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

15

Ski Stopper

505072594

$17.66

16

Ski Leg

505073200

$289.97

17

Spacer

505072579

$7.58

18

Module Ass'y | Includes 400 to 400d

505073967

$499.20

19

Upper Cushion

414803100

$8.42

20

Lower Cushion

414803200

$11.71

21

Grease Fitting

408200700

$2.80

21a

Insert

293450275

$9.89

22

Seal Oil

505072696

$46.12

23

Circlip

505072698

$12.89

24

Front Shock

505073205

Unavailable

25

Shock

505073046

$157.66

26

Washer

505073207

Unavailable

27

Black, Spring

505072557

$66.89

28

Spring Stopper

505072619

$10.23

29

Cushion

572034500

$9.98

30

Rubber Bumber

605354835

$13.95

31

Steering Arm

505073823

$92.28

32

Spacer

505073983

$24.58

33

Suspension Cover LH

505072874

$129.20

33

Suspension Cover RH

505072875

$129.20

34

Socket Head Screw M8 X 20

205082044

$1.09

35

Hex. Flange Elastic Nut M10

233201414

$1.26
