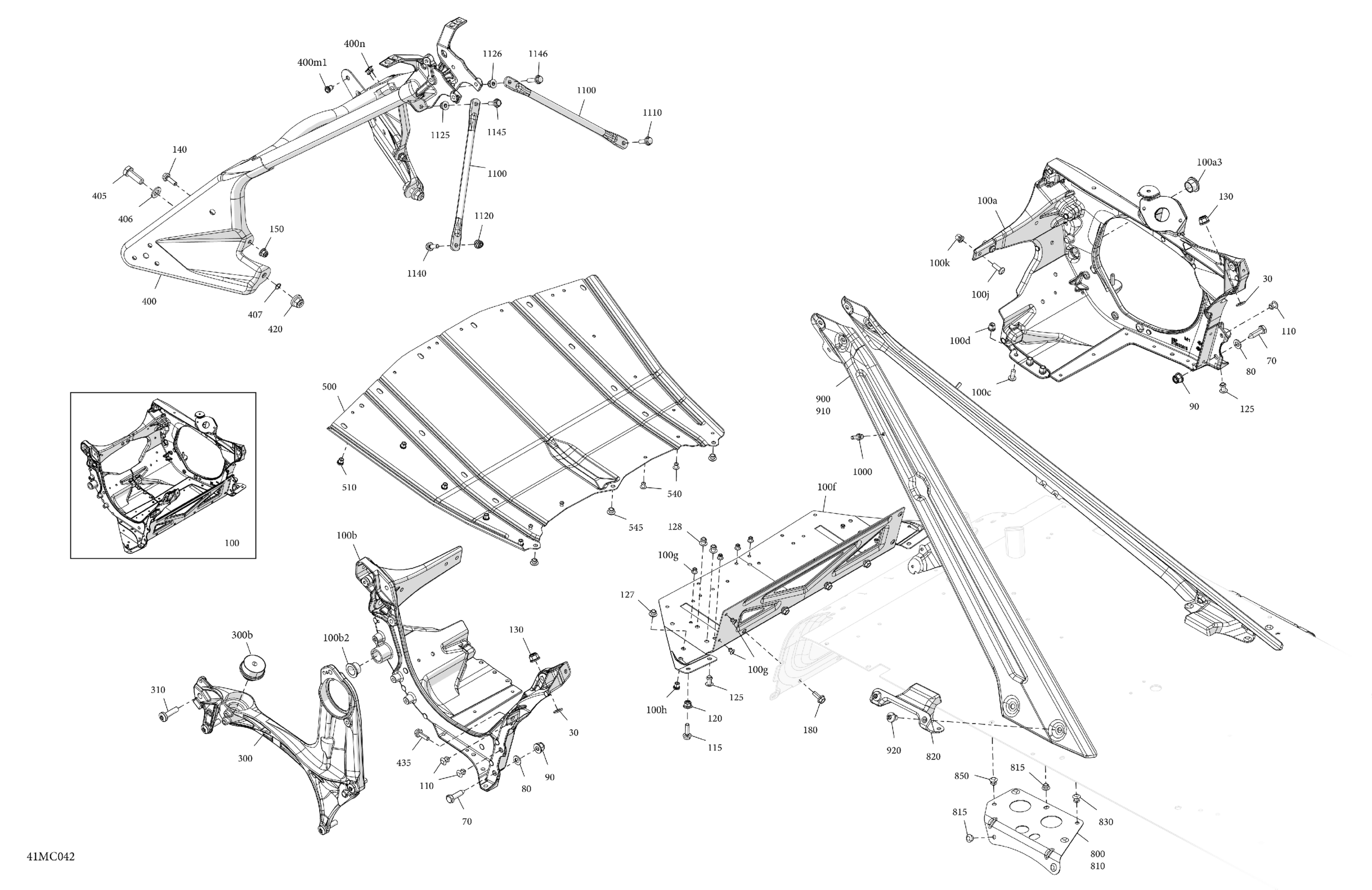

Ski-Doo 005 - SKANDIC LE 600R E-TEC - 24 INCH - North America, 2023 06- Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.83

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100k

518334604

$429.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$224.99

100a3

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100f

Bottom Plate

518332716

$36.99

100g

Rivet Avibulb 3/16

293150203

$2.09

100h

Insert M5 X 0.8

293450268

$2.09

100j

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100k

Collar Huck Magna-Grip 6.4

293150149

$0.48

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

115

Hex. Flange Screw M6 X 20

207662046

$2.11

120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

125

Rivet Ornit 6,5 X 18.5

293150268

$2.40

127

Rivet Ornit 6,5 X 10.5

293150264

$2.40

128

Ornit Rivet 6,5 X 14.5

293150266

$2.40

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

300

LH Side Member Ass'y | Includes 300 to 300b

518333783

$294.99

300b

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module | Includes 400 to 400n

518335307

$369.99

400m1

Insert M5 X 0.8

293450268

$2.09

400n

Rivet Avibulb 3/16

293150203

$2.09

405

Screw Hex M10 X 30

250001148

$1.69

406

Flat Washer 10 mm

234001410

$1.26

407

O-Ring

505072448

$2.32

420

Hex. Flange Elastic Nut M10

250100165

$0.85

435

Hex. Flange Screw M6 X 20

207562056

$2.11

500

Front Bottom Plate

518331615

$31.99

510

Insert M5 X 0.8

293450268

$2.09

540

Avex Rivet

390909100

$0.30

545

Rivet Ornit 6,5 X 10.5

293150264

$2.40

800

LH Under Chassis Reinforcement

518332514

$12.99

810

RH Under Chassis Reinforcement

518332516

$12.99

815

Rivet Ornit 6,5 X 10.5

293150271

$2.40

820

Cross Member Support

518331733

$33.99

830

Ornit Rivet 6,5 X 14.5

293150266

$2.40

850

Rivet Ornit 6,5 X 12.5

293150265

$2.40

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900b

518333368

$119.99

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910b

518333369

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1000

Protruding Stud M5 x 12

250300651

$2.09

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1145

Hex. Flange Screw M6 X 20

207662046

$2.11

1146

Hex. Flange Screw M6 X 25

207662556

$4.44
