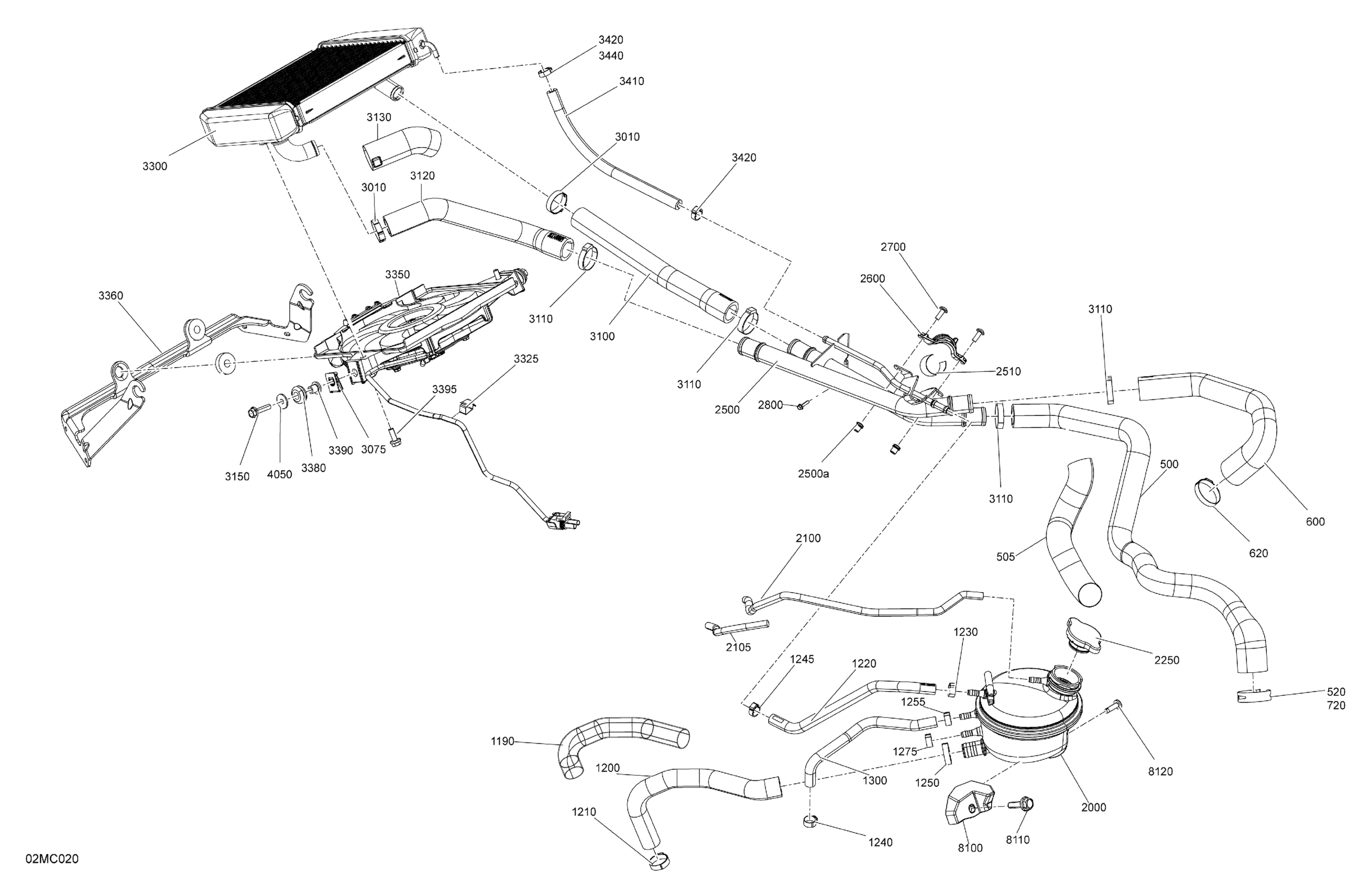

Ski-Doo 005 - SKANDIC LE 600R E-TEC - 24 INCH - North America, 2023 02- Engine - Cooling Diagram

Description

Price

500

Hose

509001284

$29.99

505

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

520

Norma Spring Clamp

293650264

$4.44

600

Hose

509001161

$15.49

620

Oetiker Clamp

293650306

$9.69

720

Norma Spring Clamp

293650264

$4.44

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001164

$15.49

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Hose

509001165

$15.49

1230

Oetiker Clamp

293650046

$2.89

1240

Oetiker Clamp

293650046

$2.89

1245

Oetiker Gear Clamp

293650025

$3.09

1250

Oetiker Clamp

509001041

$2.09

1255

Oetiker Clamp

293650046

$2.89

1275

Oetiker Clamp

293650046

$2.89

1300

Hose

509001457

$15.88

2000

Coolant Tank

509001261

$90.99

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2105

Protector Tube | Not shown

503195447

$13.49

2250

Radiator Pressure Cap

509000180

$20.49

2500

Coolant Pipe | Includes 2500 to 2500d

861805545

$35.99

2500a

Insert M5 X 0.8

293450268

$2.09

2510

Protector

512061214

$2.11

2600

Clamp

509001049

$4.55

2700

Torx Screw M5 X 14

250000742

$1.47

2800

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

3010

Crimp Clamp

293650099

$4.29

3075

Panel Nut M6 X 1.0

250100208

$1.46

3100

Hose

509001234

$18.49

3110

Oetiker Clamp

293650141

$4.29

3120

Hose

509001236

$18.49

3130

Protector Tube

707001349

$20.99

3150

Hex. Flange Screw M6 X 25

207562544

$1.69

3300

Radiator

509001037

$214.99

3325

Clip

414227300

$1.67

3350

Fan Ass'y

509001301

$234.99

3360

Support

509001242

$70.99

3380

Grommet

709000582

$4.69

3390

Bushing

293900151

$7.66

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3410

Was 415129508 Bleeder Hose

219704416

$12.18

3420

Oetiker Gear Clamp

293650025

$3.09

3440

Oetiker Gear Clamp

293650025

$3.09

4050

Flat Washer

250200082

$0.42

8100

Support

509001259

$6.39

8110

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

8120

Screw PT Type K-50 X 16

250000959

$2.11
