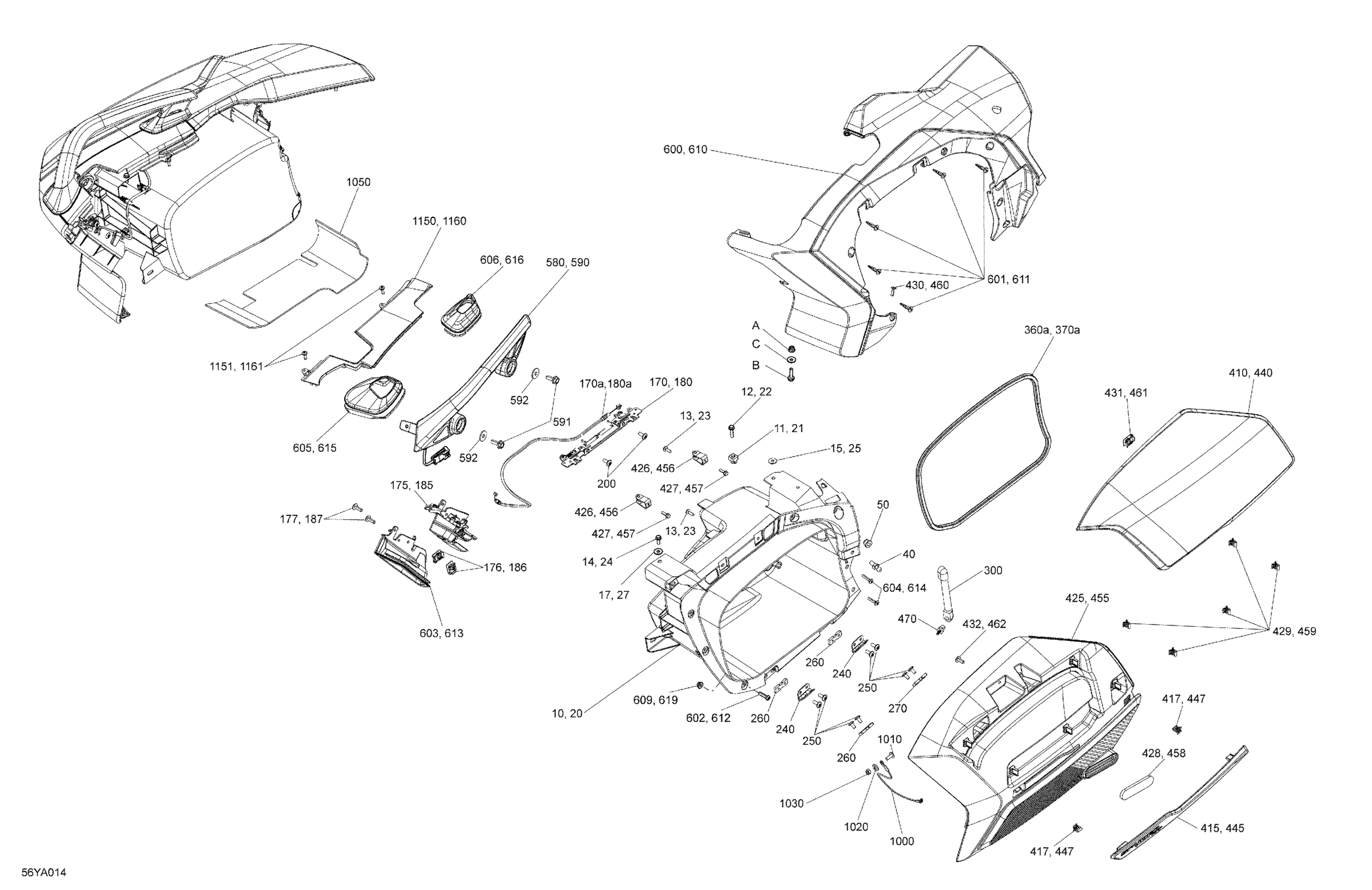

Can-Am RT LIMITED - Chrome Edition - Deep Marsala Metallic, 2021 Body - Side Cargo Diagram

#

Description
Price

A

Hex. Flange Elastic Nut M6

233261494

$1.26

B

Hex. Flange Screw M6 X 25

207662554

$1.48

C

Stainless Steel Flat Washer

234062670

$1.74

10

LH Rear Storage Box

708303846

$89.00

11

Insert

291003793

$2.44

12

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

13

Torx Screw K50 X 16

250000720

$1.39

14

Hex. Flange Screw M6 X 16

210261650

$1.22

15

Stainless Steel Flat Washer

234062670

$1.74

17

Stainless Steel Flat Washer

234062670

$1.74

20

RH Rear Storage Box

708303976

$93.00

21

Insert

291003793

$2.44

22

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

23

Torx Screw K50 X 16

250000720

$1.39

24

Hex. Flange Screw M6 X 16

210261650

$1.22

25

Stainless Steel Flat Washer

234062670

$1.74

27

Stainless Steel Flat Washer

234062670

$1.74

40

Ball Head Stud

250300016

$11.69

50

Hex. Flange Elastic Nut M8

233281414

$1.14

170

RH Latch Lid Ass'y

708304019

$155.00

170a

Cable

708003379

$49.00

175

LH Control

708301222

$44.00

176

Panel Nut M6 X 1.0

250100208

$1.07

177

Torx Screw M6 X 20

250000722

$1.34

180

LH Latch Lid Ass'y

708304020

$155.00

180a

Cable

708003379

$49.00

185

RH Control

708301697

$44.00

186

Panel Nut M6 X 1.0

250100208

$1.07

187

Torx Screw M6 X 20

250000722

$1.34

200

Torx Head Screw M6 X 16

250000717

$1.74

240

Hinge

708300006

$26.00

250

Torx Truss Screw M6 X 12

250000767

$1.66

260

Back Plate Support

708300129

$11.00

270

Retaining Plate

708304009

$10.00

300

Shock Absorber

708303322

$80.00

360a

Seal, 1PC = 3M

293830188

$37.66

370a

Seal, 1PC = 3M

293830188

$37.66

410

Deep Marsala, LH Rear Box Cover

708303151

$380.00

415

Chrome, LH Rear Box Trim

708303153

$130.00

417

Edge Clip

517302785

$0.70

425

LH Interior Box Cover

708303745

$83.00

426

Striker Cover

708303255

$7.00

427

Hex. Forming Screw M5 X 16

210251650

$0.92

428

Red, Reflector

705015551

$8.26

428

Amber Reflector

705015552

$9.00

429

Edge Clip

517302785

$0.70

430

Torx Truss PT K40 x 12

250001131

$1.74

431

Panel Nut M6 X 1.0

250100208

$1.07

432

Torx Head Screw M6 X 16

250000717

$1.74

440

Deep Marsala, RH Rear Box Cover

708303159

$380.00

445

Chrome, RH Rear Trim Box

708303155

$130.00

447

Edge Clip

517302785

$0.70

455

RH Interior Box Cover

708303746

$83.00

456

Striker Cover

708303255

$7.00

457

Hex. Forming Screw M5 X 16

210251650

$0.92

458

Red, Reflector

705015551

$8.26

458

Amber Reflector

705015552

$9.00

459

Edge Clip

517302785

$0.70

460

Torx Truss PT K40 x 12

250001131

$1.74

461

Panel Nut M6 X 1.0

250100208

$1.07

462

Torx Head Screw M6 X 16

250000717

$1.74

470

Ball Joint

250300064

$13.00

580

LH Rear Heated Holding Handle

708304248

$164.00

590

RH Rear Heated Holding Handle

708304249

$175.00

591

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

592

Flat Washer 8 mm

234082410

$1.11

600

Fairing Over L

708303973

$95.00

601

Plastic Rivet

293150248

$2.00

602

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

603

LH Lever Trim

708303323

$5.00

604

Torx Screw K50 X 25

250001110

$1.29

605

LH Front Armrest Trim

708303393

$6.00

606

LH Rear Arm Rest Trim

708303749

$6.00

609

Hex. Flange Nut M6

233161414

$1.74

610

Fairing Over R

708303974

$95.00

611

Plastic Rivet

293150248

$2.00

612

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

613

RH Lever Trim

708303324

$6.00

614

Torx Screw K50 X 25

250001110

$1.29

615

RH Front Armrest Trim

708303394

$6.00

616

RH Rear Arm Rest Trim

708303750

$6.00

619

Hex. Flange Nut M6

233161414

$1.74

1000

Retainer Cable

708300385

$39.00

1010

Torx Head Screw M6 X 16

250000717

$1.74

1020

Flat Washer, Stainless/Neoprene

211200055

$0.68

1030

Hex. Nut M6

232061414

$0.44

1050

Heat Shield

705004173

$48.00

1150

LH Access Cover

708303754

$17.00

1151

Torx Screw K50 X 16

250000720

$1.39

1160

RH Access Cover

708303755

$17.00

1161

Torx Screw K50 X 16

250000720

$1.39
