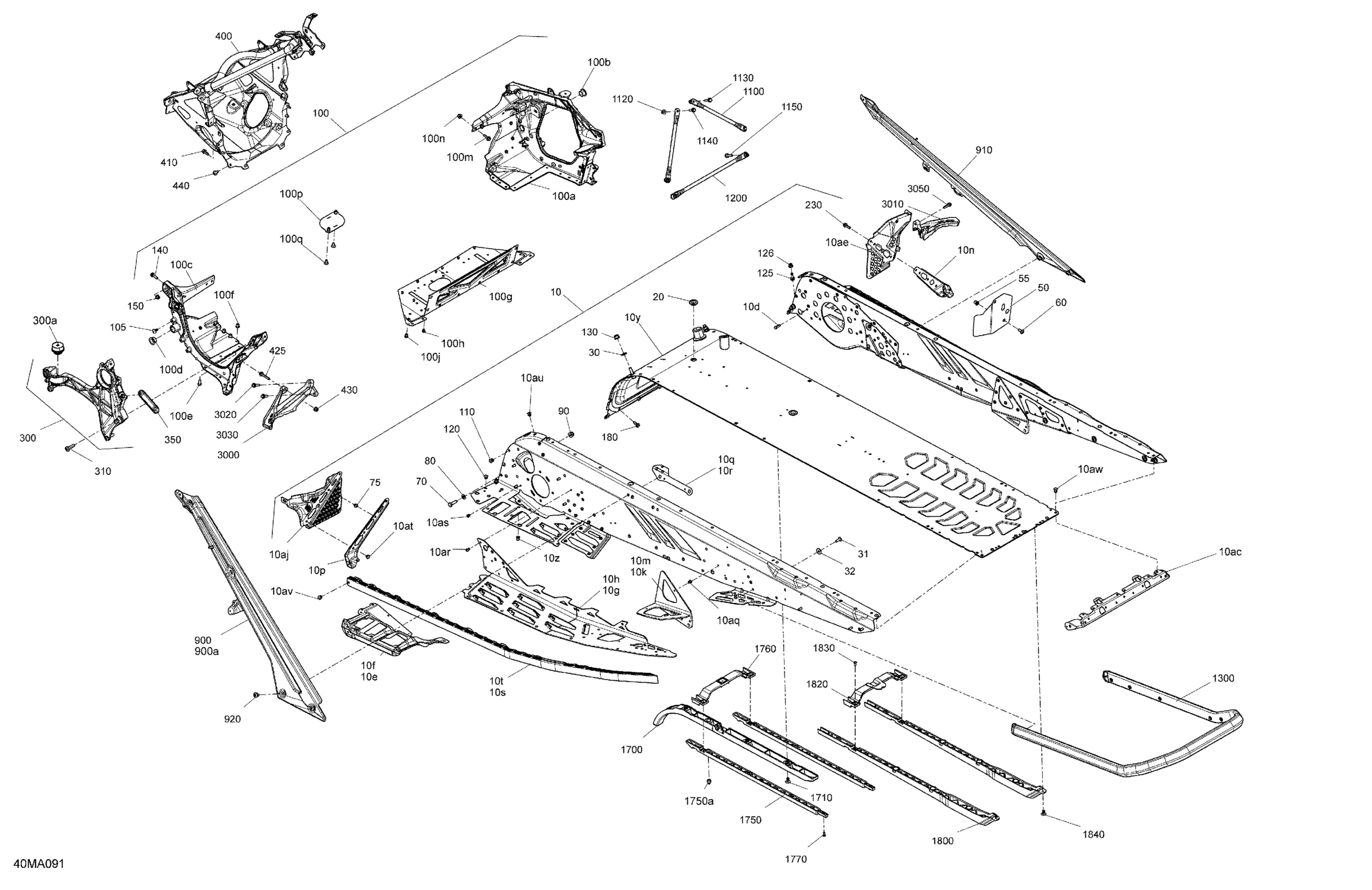

Ski-Doo RENEGADE 900 ACE Turbo - XRS - Europe, 2021 Frame - System - XRS Diagram

Deep Black, Chassis Tunnel Module 137" | Model Deep Black

518332345

Unavailable

Sunburst Yellow, Chassis Tunnel Module 137" | Model Sunburst Yellow

518332348

Unavailable

Clinch Stud M6 X 20

250300027

$1.87

Deep Black, RH Footrest Reinforcement

518330738

$79.82

Deep Black, LH Footrest Reinforcement

518331523

$79.82

RH Footrest

518331546

$38.78

LH Footrest

518331547

$38.78

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

LH Suspension Bracket

518329621

$41.76

Stirrup Reinforcement

518331253

$17.88

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

LH Under Chassis Reinforcement

518331744

$15.64

RH Under Chassis Reinforcement

518331745

$16.39

RH Roller

518329023

$175.34

LH Roller

518329024

$175.34

Radiator Tunnel 137 Ass'y

518334488

$682.06

Clinch Nut M6 Hexsert

605636003

$4.00

Rear Cap

518328990

$20.12

RH Footrest

518330691

$20.12

LH Foot Protector

518331559

$23.10

Avex Rivet

390909100

$0.28

Rivet Hucklok

293150163

$2.73

Avex Rivet

390909200

$0.28

Hemlock Rivet, 6.5 mm

293150096

$3.07

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Conical Spring Washer M8

250200146

$0.83

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Heat Shield

518331823

$7.19

Insert

293450275

$9.89

Torx Head Screw M6 X 16

250000717

$1.74

Hex Screw M8 X 30

250000942

$0.92

Hemlock Rivet, 6.5 mm

293150096

$3.07

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100n

518332946

Unavailable

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$181.31

Leg Bushing

505072690

$5.75

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

Leg Bushing

505072690

$5.75

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

Collar Huck Magna-Grip 6.4

293150149

$0.36

Bottom Plate

518332715

$33.55

Avex Rivet

390909100

$0.28

Insert M5 X 0.8

293450268

$1.90

Hex. Flange Screw M6 X 20

207662046

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Oil Plate

518332276

$16.39

Torx Truss Screw M6 X 12

250000767

$1.66

Dart

293730079

$1.87

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300b

518333691

$176.09

Vibration Damper

512061516

$55.94

Screw-Pan HD.Torx M8X30

250001060

$0.65

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.40

Chassis Suspension Module

518334461

$633.55

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 x 35

207663546

$0.95

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

RH Rear Diagonal Cross Member

518330885

Unavailable

Black, RH Member Ass'y | Black

518330880

$105.19

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329370

$20.12

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Hex. Flange Screw M6 x 20

207662056

$0.96

Center Column Support

518329755

$3.36

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

Front Protector

518329982

$17.13

Pop Rivet 3/16”

293150108

$1.19

Rear Protector

518329980

$7.33

Rubber Bumper

293830005

$5.33

Front Protective Structure

518333935

$3.30

Torx Truss PT K40 x 12

250001131

$1.74

Rear Protector

518329979

$7.33

Support

520001545

$3.30

Torx Truss PT K40 x 12

250001131

$1.74

Pop Rivet 3/16”

293150108

$1.19

Black Toe-hold

518330358

$22.36

Toe Hold

518329134

$15.64

Hex. Flange Screw M6 X 25

250000793

$1.74

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Hex Screw Forming M6 x 25

250001124

$1.64
