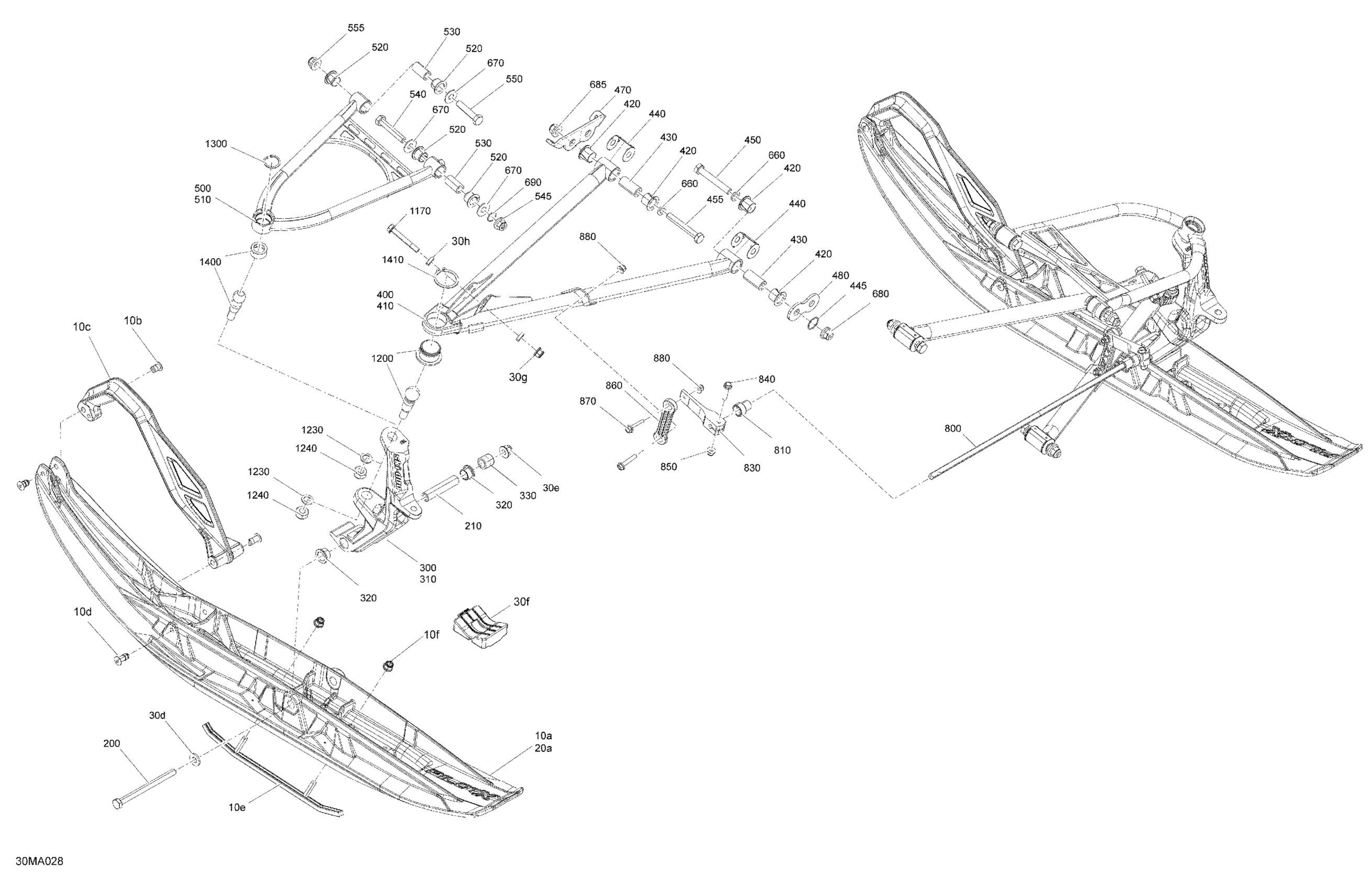

Ski-Doo RENEGADE 900 ACE Turbo - XRS - Europe, 2021 Suspension - Front Diagram

#

Description
Price

10a

Deep Black, LH Ski | Includes 10a to 10a1

505074926

$161.16

10a

Deep Black, LH Ski | Includes 10a to 10a1

505074926

$161.16

10a

Sunburst Yellow, DS Ski | Model Sunburst Yellow - Sunburst Yellow Handle

505073658

$161.16

10a

Sunburst Yellow, LH Ski Pilot X | Model Sunburst Yellow - Ski SPX

505075024

$161.16

10a.1

Ski Bushing

505071781

$14.90

10a.1

Ski Bushing

505071781

$14.90

20a

Deep Black, RH Ski | Includes 20a to 20a1

505074927

$161.16

20a

Deep Black, RH Ski | Includes 20a to 20a1

505074927

$161.16

20a

Sunburst Yellow, DS Ski | Model Sunburst Yellow - Sunburst Yellow Handle

505073658

$161.16

20a

Sunburst Yellow, RH Ski | Model Sunburst Yellow - Ski SPX

505075025

$161.16

20a.1

Ski Bushing

505071781

$14.90

20a.1

Ski Bushing

505071781

$14.90

10b

Retainer 17mm long

505071812

$4.30

10b

Retainer 17mm long

505071812

$4.30

10c

Deep Black, Ski Handle

505074778

$34.30

10c

Deep Black, Ski Handle

505074778

$34.30

10c

Yellow, Handle | Model Sunburst Yellow - Sunburst Yellow Handle

505073665

$33.55

10c

Sunburst Yellow, Ski Handle | Model Sunburst Yellow This part replaces 505075028.

505075365

$35.04

10d

Retainer 23mm Long

505072133

$4.88

10d

Retainer 23mm Long

505072133

$4.88

10e

Round Carbide Runner Kit

860202180

$135.79

10e

Round Carbide Runner Kit

860202180

$135.79

10f

Hex. Flange Elastic Nut M8

233281414

$1.14

10f

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.21

210

Ski Axle

505073691

$12.21

300

Deep Black, LH Ski Leg +10

505074961

$205.94

300

Deep Black, LH Ski Leg +10

505074961

$205.94

300

Sunburst Yellow, LH Ski Leg +10 | Model Sunburst Yellow

505074975

$205.94

300

Sunburst Yellow, LH Ski Leg +10 | Model Sunburst Yellow

505074975

$205.94

310

Deep Black, RH Ski Leg +10

505074962

$205.94

310

Deep Black, RH Ski Leg +10

505074962

$205.94

310

Sunburst Yellow, RH Ski Leg +10 | Model Sunburst Yellow

505074976

$205.94

310

Sunburst Yellow, RH Ski Leg +10 | Model Sunburst Yellow

505074976

$205.94

320

Leg Bushing

505072690

$5.75

320

Leg Bushing

505072690

$5.75

330

Spacer

505074949

$1.97

330

Spacer

505074949

$1.97

400

LH Lower Suspension Arm

505074758

$184.30

400

LH Lower Suspension Arm

505074758

$184.30

410

RH Lower Suspension Arm

505074759

$184.30

410

RH Lower Suspension Arm

505074759

$184.30

420

Bushing

505072208

$3.04

420

Bushing

505072208

$3.04

430

Sleeve

505072209

$13.96

430

Sleeve

505072209

$13.96

440

Wear Plate

505072634

$4.31

440

Wear Plate

505072634

$4.31

445

O-Ring

505072448

$2.18

445

O-Ring

505072448

$2.18

450

Screw Hex. M10 X 70

250001024

$1.74

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate

505073723

$5.67

470

Wear Plate

505073723

$5.67

480

Plate

505073844

$2.07

480

Plate

505073844

$2.07

500

LH Upper Suspension Arm

505074760

$138.03

500

LH Upper Suspension Arm

505074760

$138.03

510

RH Upper Suspension Arm

505074761

$138.03

510

RH Upper Suspension Arm

505074761

$138.03

520

Bushing

505072250

$3.04

520

Bushing

505072250

$3.04

530

Sleeve

505072143

$8.36

530

Sleeve

505072143

$8.36

540

Screw Hex. M10 X 60

250001023

$1.74

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.70

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

670

Washer

505072392

$4.51

680

Hex. Flange Elastic Nut M10

250100165

$0.70

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

$2.18

690

O-Ring

505072448

$2.18

800

Stabiliser

505074719

$67.13

800

Stabiliser

505074719

$67.13

810

Bushing

505072064

$2.15

810

Bushing

505072064

$2.15

830

Stabilisator Lever

505073731

$14.90

830

Stabilisator Lever

505073731

$14.90

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$18.63

860

Sway Bar Double Joint Link

505072204

$18.63

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$49.97

1200

Ball Joint

505074133

$49.97

1230

Washer

503192491

$4.25

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$6.81

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1400

Upper Ball Joint

505072913

$67.88

1410

Snap Ring

293370098

$3.01

1410

Snap Ring

293370098

$3.01

30d

Washer

503192496

$0.73

30d

Washer

503192496

$0.73

30e

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

30e

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

30f

Ski Stopper

505072594

$17.13

30f

Ski Stopper

505072594

$17.13

30g

Elastic Flange Nut M8

233281466

$0.83

30g

Elastic Flange Nut M8

233281466

$0.83

30h

Spacer

505073892

$2.10

30h

Spacer

505073892

$2.10
